EXSYS EX-49157 D-type USB 2.0 inbouwadapter, USB-B bus naar USB-A bus

In professional AV racks, industrial control panels, and custom enclosures, standard USB ports are often inaccessible or poorly positioned. The EXSYS EX-49157 solves this by providing a robust D-type panel-mount adapter that brings a USB 2.0 connection to the front or rear of any panel.

Who is it for

System integrators, AV technicians, and industrial engineers who need a reliable, panel-mounted USB 2.0 interface. Ideal for adding USB connectivity to equipment racks, machine housings, or custom enclosures where a fixed USB port is required.

Main features

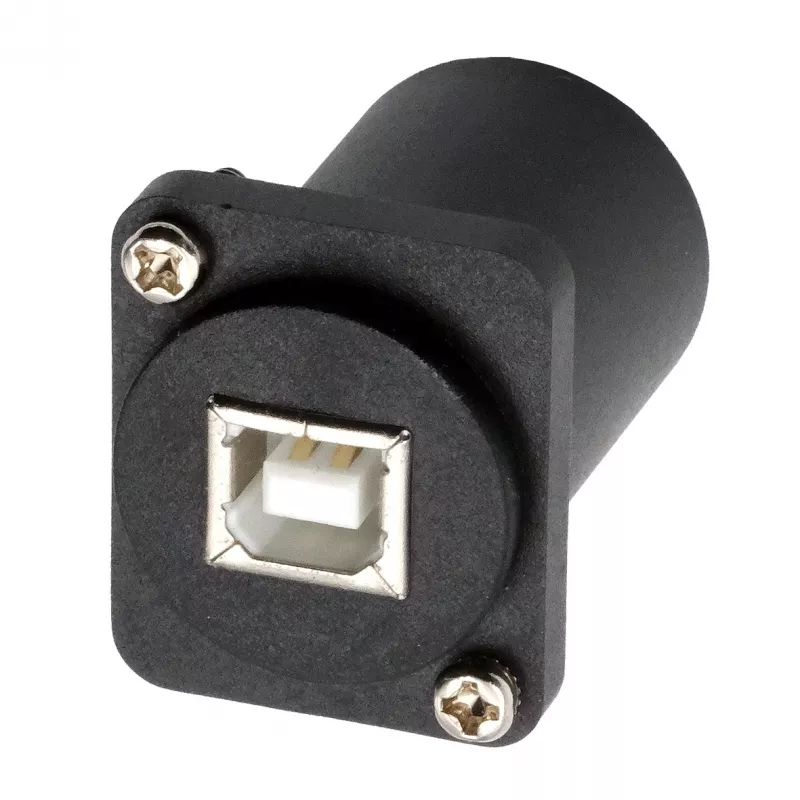

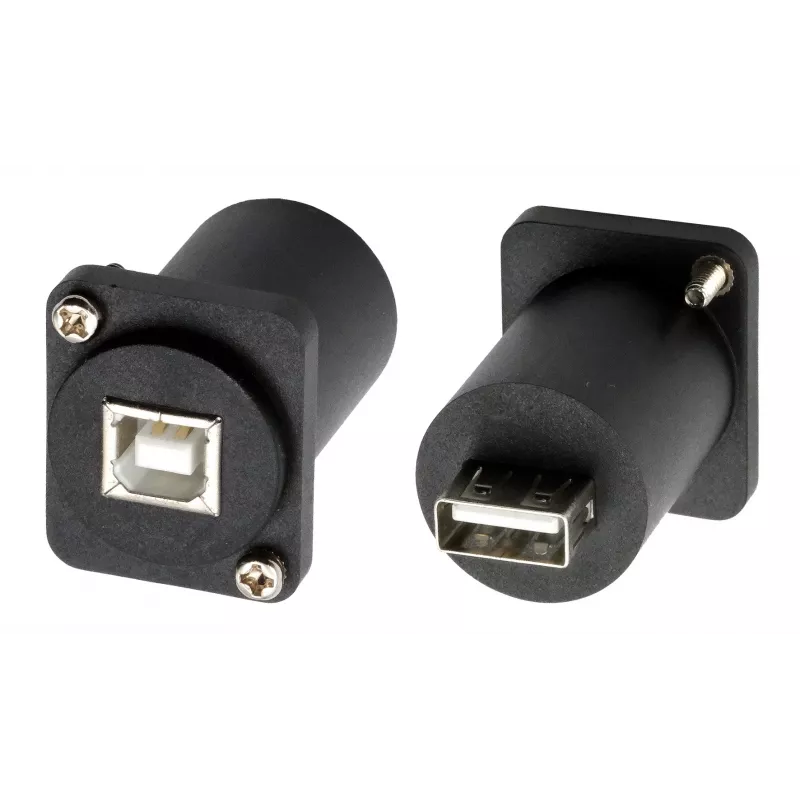

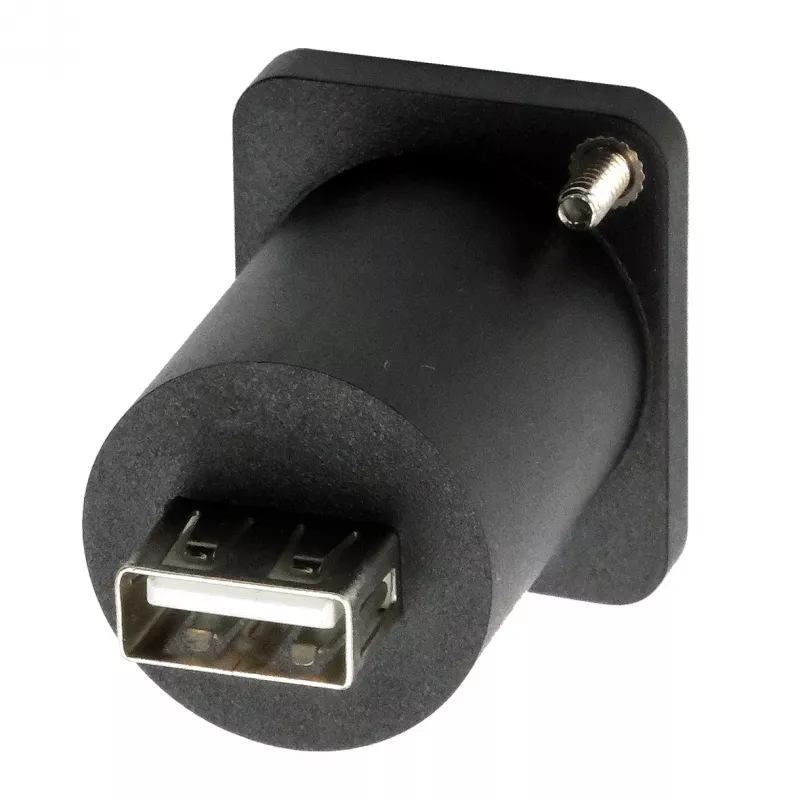

• Converts a USB-B female port to a USB-A female port, both mounted in a standard D-type cutout.
• USB 2.0 compliant with data transfer speeds up to 480 Mbps, backward compatible with USB 1.1.
• Fully shielded metal alloy housing for durability and signal integrity.
• Panel cutout dimensions: 24 x 19 mm, compatible with Neutrik D-type mounting standard.
• Plug and play, no drivers required.

Specifications

• Connector A: USB Type-B Female
• Connector B: USB Type-A Female
• USB Standard: USB 2.0
• Data Transfer Speed: Up to 480 Mbps
• Mounting Standard: D-Type (Neutrik Compatible)
• Housing Material: Metal Alloy
• Colour: Black
• Backward Compatibility: USB 1.1
• Shielding: Fully Shielded
• Installation: Front or Rear Panel Mount
• Plug & Play: Yes

Tips

For a clean installation, ensure the panel cutout matches the 24 x 19 mm dimensions. The adapter can be mounted from either side of the panel, depending on your cable routing needs.
