EXSYS EX-49165 D-type inbouw USB-A-bus naar bus kabeladapter, USB 3.2 Gen 1, 20 cm

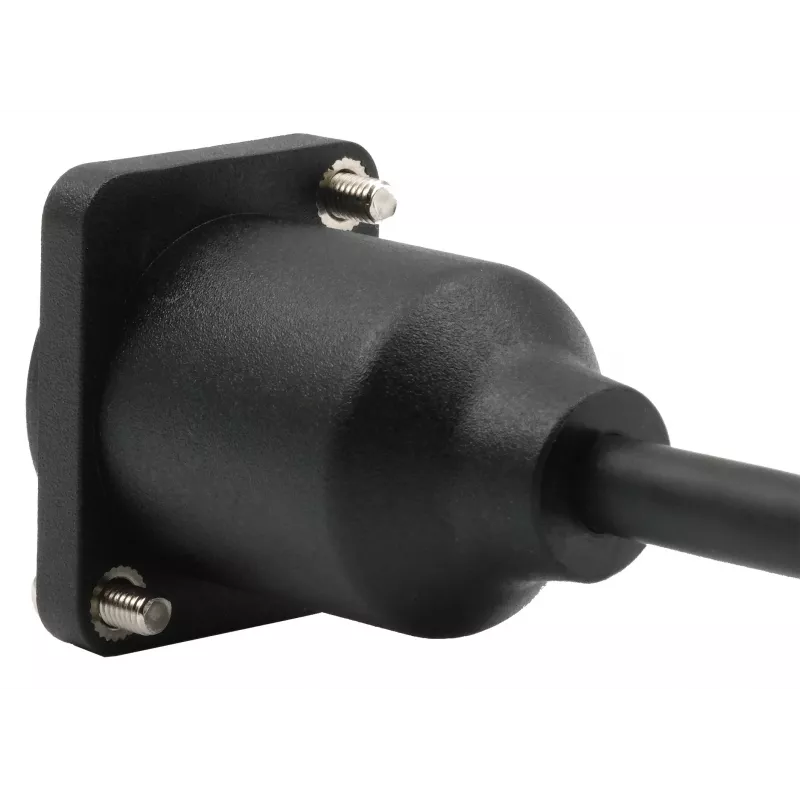

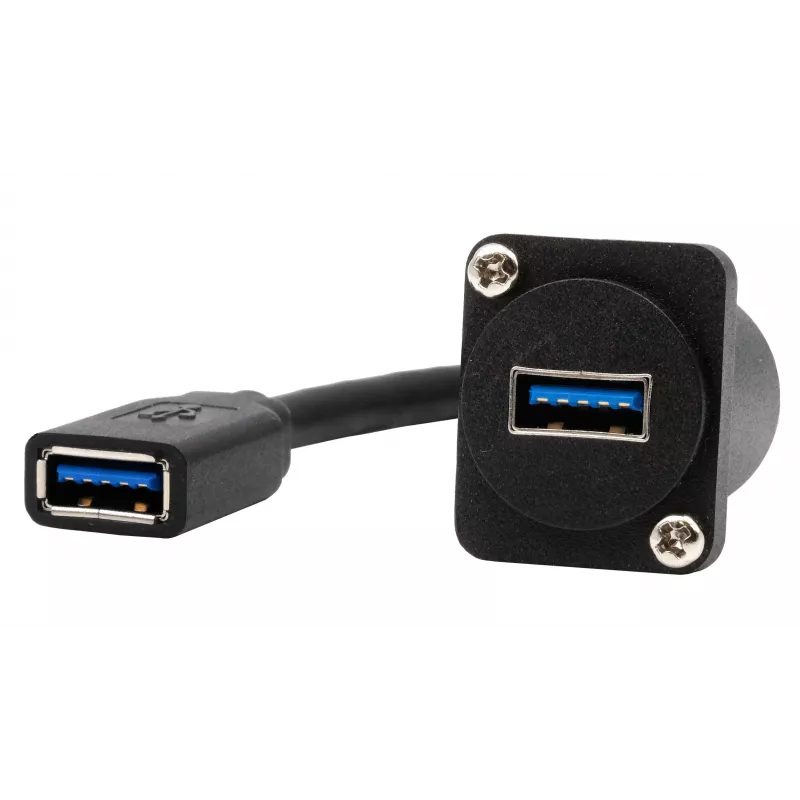

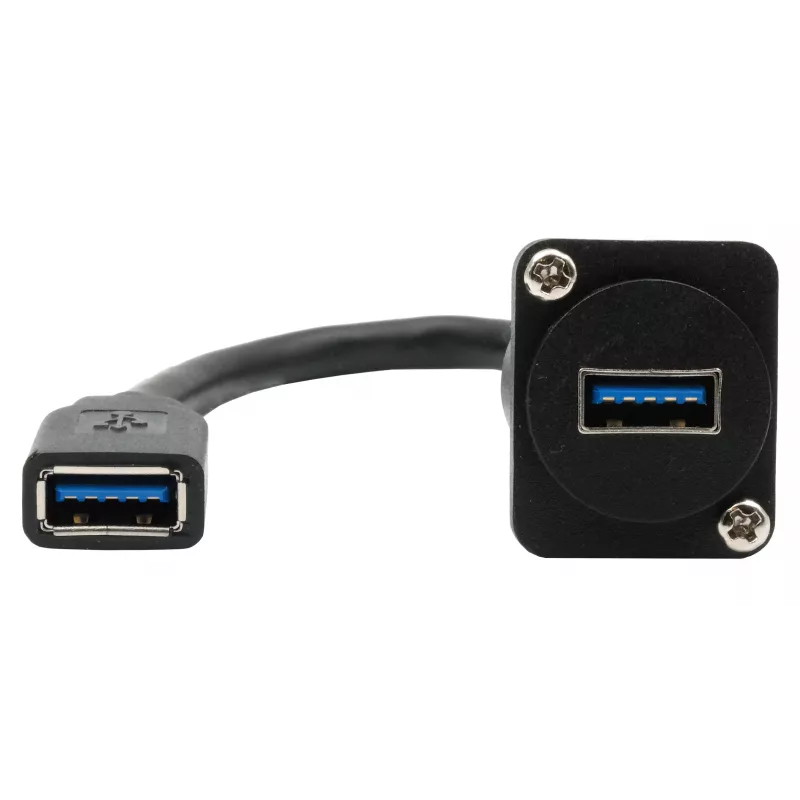

This EXSYS D-Type cable adapter solves a common panel-integration challenge: it provides a secure, panel-mounted USB-A female port on both ends, eliminating the need for loose cable tails or custom drilling. Unlike standard couplers that dangle inside enclosures, the metal D-Type housing screws into a standard D-sub cutout, giving your industrial, pro audio/video, or data center panel a clean, professional USB 3.2 Gen 1 connection point.

Highlights

• Panel-mount D-Type housing with metal construction for durable, fixed installations
• USB-A female to USB-A female, ideal for extending a USB port to a front panel or bulkhead
• USB 3.2 Gen 1 (SuperSpeed) with data transfer rates up to 5 Gbps
• Double-shielded cable (foil and braid) reduces electromagnetic interference
• 20 cm cable length allows flexible routing inside equipment racks or consoles

In daily use

Mount the adapter in a standard D-Type cutout, connect an internal USB cable to one end, and you instantly have a robust, externally accessible USB-A port. The nickel-plated connectors resist corrosion and maintain reliable contact over repeated mating cycles. Backward compatible with USB 2.0 and 1.1 devices, it works with a wide range of peripherals.

Full specifications

• Connector 1: USB-A Female
• Connector 2: USB-A Female
• USB Standard: USB 3.2 Gen 1 (SuperSpeed USB 5Gbps)
• Data Transfer Rate: 5 Gbps
• Cable Length: 20 cm
• Mounting Type: D-Type Panel Mount
• Connector Plating: Nickel
• Cable Color: Black
• Panel Mount Housing Material: Metal
• Backward Compatibility: USB 2.0, USB 1.1
• Gender: Female-Female
• Shielding: Double Shielded (Foil and Braid)

Final note

Designed for reliable panel integration, this adapter keeps your USB connections stable and accessible in demanding environments.
