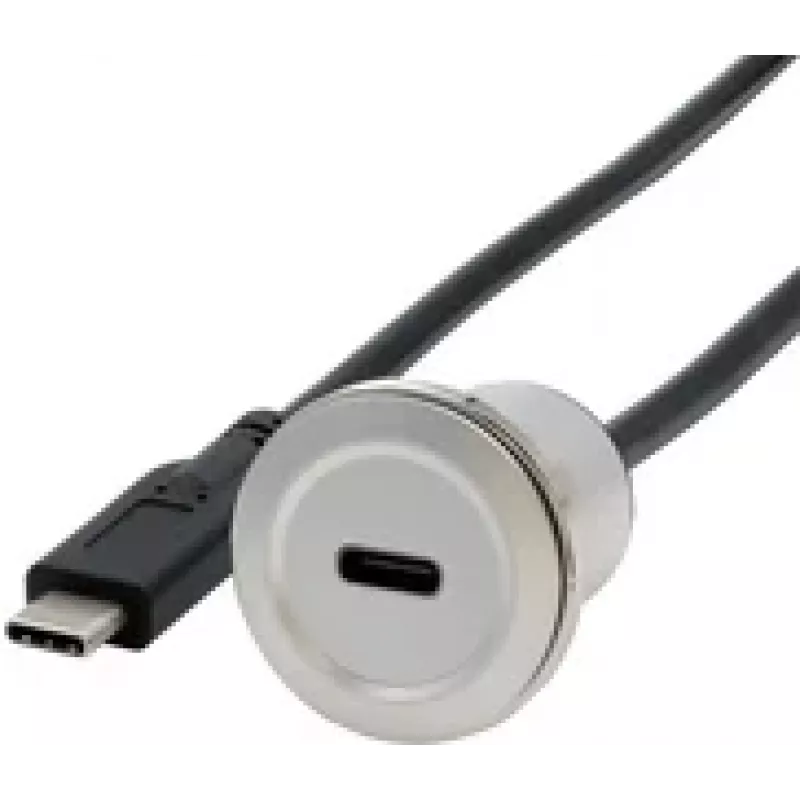

EXSYS EX-49183 inbouwadapter metaal, USB-C-bus naar stekker, USB 3.2 Gen 1, 30 cm

Deliver 10Gbps data, 100W power, and DisplayPort video through a single rugged panel-mount USB-C port. The EXSYS EX-49183 is a 30cm flush-mount extension cable with a screw-in metal housing, built for industrial panels, PC cases, and custom enclosures.

Overview

The EXSYS EX-49183 is a panel-mount USB-C extension cable that brings a full-featured USB-C port to any surface. It features a USB-C male connector on one end and a panel-mount USB-C female connector on the other. The female connector is housed in a metal, screw-in panel mount for secure installation in panels, enclosures, or desks. The cable supports USB 3.2 Gen 2 speeds up to 10Gbps, USB Power Delivery up to 100W (20V/5A), and DisplayPort Alternate Mode for video output.

What stands out

• USB 3.2 Gen 2: 10Gbps data transfer
• 100W Power Delivery (20V/5A)
• DisplayPort Alternate Mode for video
• Metal screw-in panel mount for durability
• 30cm length for flexible installation
• Double shielded, black PVC jacket

Technical details

• Connector 1: USB-C Male
• Connector 2: USB-C Female (Panel Mount)
• Cable Length: 30 cm
• USB Standard: USB 3.2 Gen 2
• Data Transfer Rate: 10 Gbps
• Power Delivery: 100W (20V/5A)
• Video Support: DisplayPort Alt Mode
• Panel Mount Type: Screw-in
• Housing Material: Metal
• Cable Colour: Black
• Housing Colour: Silver/Grey
• Shielding: Double Shielded
• Cable Jacket: PVC

Our verdict

The EXSYS EX-49183 is a reliable, high-performance panel-mount USB-C solution for industrial and custom installations where a durable, full-featured USB-C port is required.
