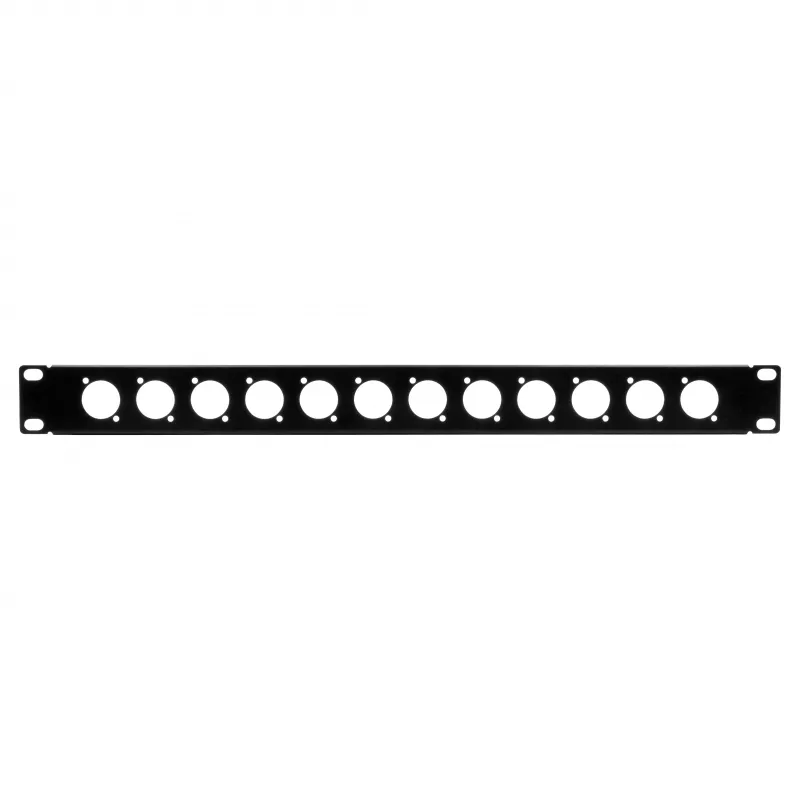

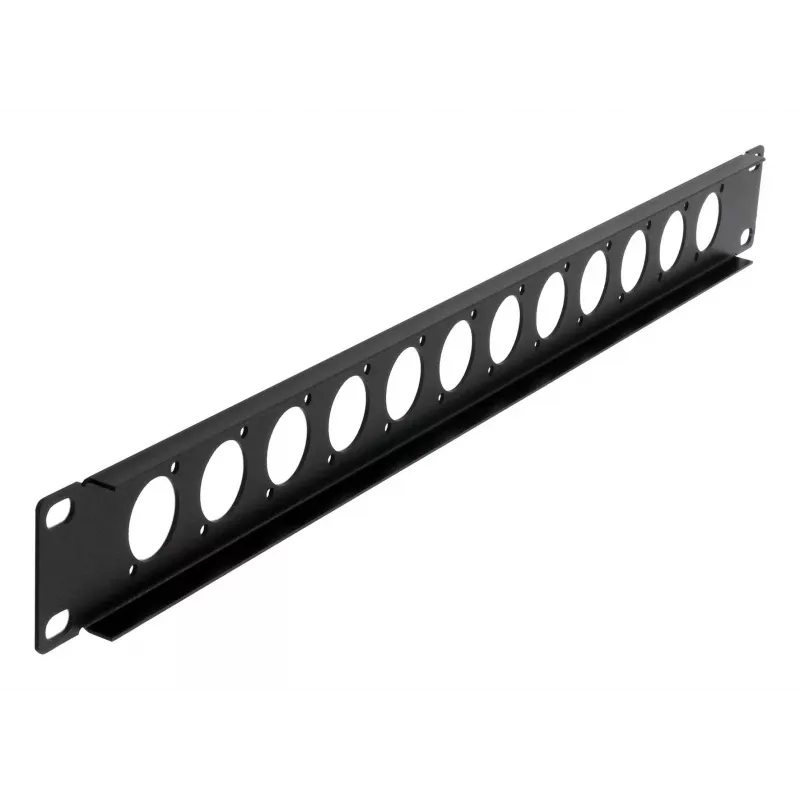

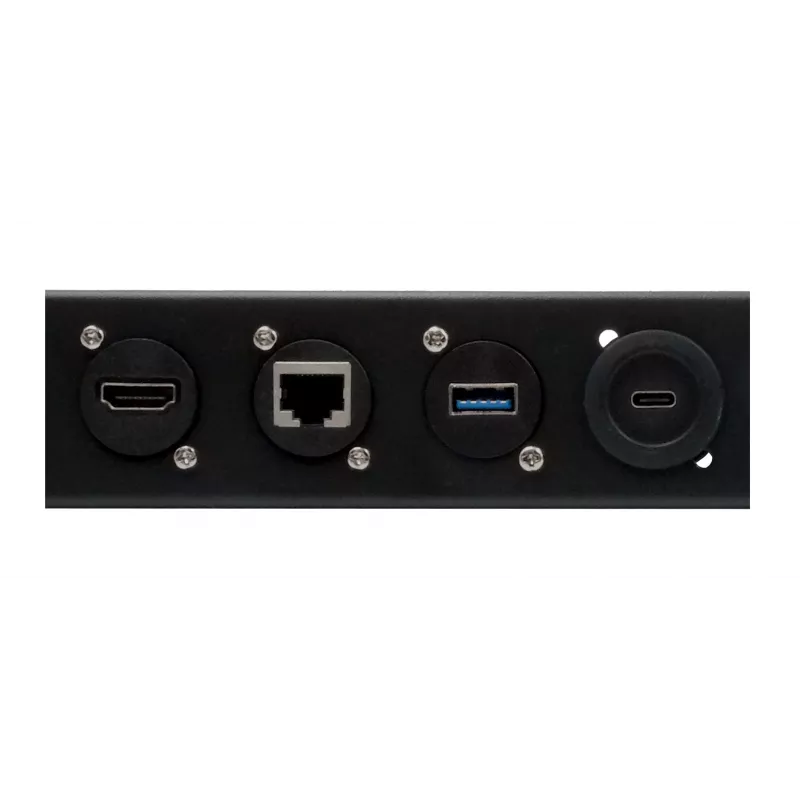

EXSYS EX-49298 19 inch 1U rackpaneel met 12 D-type uitsparingen, zwart

Equip your 19" rack with a professional-grade panel featuring 12 pre-punched D-Type cutouts, ready for XLR, Neutrik D-series, and other compatible connectors. This 1U steel panel in black powder-coated finish is the backbone for custom audio, video, and network installations.

Overview

The EXSYS EX-49298 is a 19-inch rack blank panel with 12 D-Type cutouts, designed for mounting XLR or Neutrik D-series connectors. It occupies 1 rack unit (1U) and is constructed from steel with a black powder-coated finish. The panel is front-mountable and includes standard 19-inch rack mounting holes.

What stands out

• 12 D-Type cutouts for versatile connector integration
• Compatible with XLR and Neutrik D-series connectors (EtherCON, powerCON, speakON, USB, OpticalCON)
• Sturdy steel construction with black powder coating
• Standard 1U height for space-efficient rack mounting

Technical details

• Product Type: Rack Panel
• Rack Size: 19 inch
• Rack Units: 1U
• Number of Cutouts: 12
• Cutout Type: D-Type
• Connector Compatibility: XLR, Neutrik D-series
• Material: Steel
• Color: Black
• Finish: Powder Coated
• Mounting: Front Mount, Rack Mountable

Our verdict

A reliable and flexible solution for custom rack connectivity, ideal for audio, video, and networking applications requiring multiple D-type connectors.
