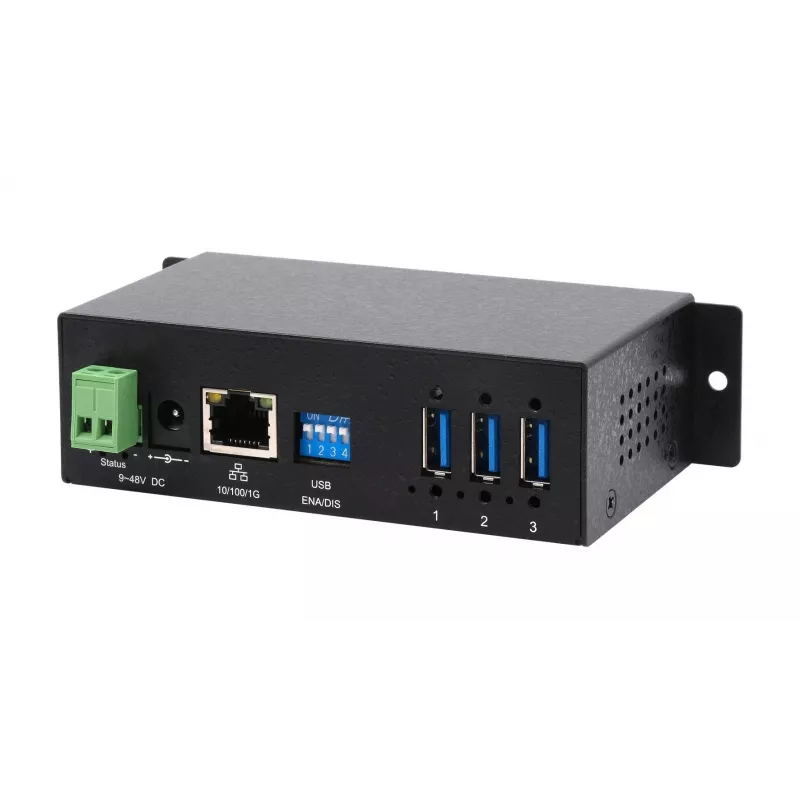

EXSYS EX-6005HMVS Gigabit USB 3.2 Gen 1 device server, 3-poorts, 15KV ESD

In a small office, the accounting team shares a single USB receipt printer across three workstations without moving cables. The EXSYS EX-6005HMVS connects the printer to the Gigabit network, making it available to any authorized PC as if it were locally attached. This metal-housed device server provides three USB 3.2 Gen 1 Type-A ports, each with 15KV ESD protection, ensuring reliable operation in busy environments.

Key specifications

• 3x USB 3.2 Gen 1 Type-A downstream ports (up to 5 Gbps)
• 1x Gigabit Ethernet RJ45 port (10/100/1000 Mbps)
• 15KV ESD protection on USB ports
• Metal housing, wall-mountable, optional DIN-rail kit
• DC 12V power input, external adapter included
• Compatible with Windows 7/8/10/11, Windows Server 2012/2016/2019, Linux kernel 2.6.x+

Why choose it

Remote USB sharing eliminates the need for dedicated PCs or manual switching. The EX-6005HMVS supports USB 3.2 Gen 1 speeds and Gigabit Ethernet, so even high-bandwidth devices like scanners or external drives perform well. Its rugged metal chassis and ESD protection suit industrial or office use.

Ideal use cases

• Sharing a multifunction printer or scanner among several employees
• Connecting USB dongles or security keys to virtualized servers
• Extending USB devices beyond the 5-meter cable limit over a network
• Industrial automation where USB devices must be accessed remotely

Good to know

The device is backward compatible with USB 2.0 and 1.1. LED indicators show power, link/activity, and per-port status. Operating temperature range is 0°C to 55°C.
