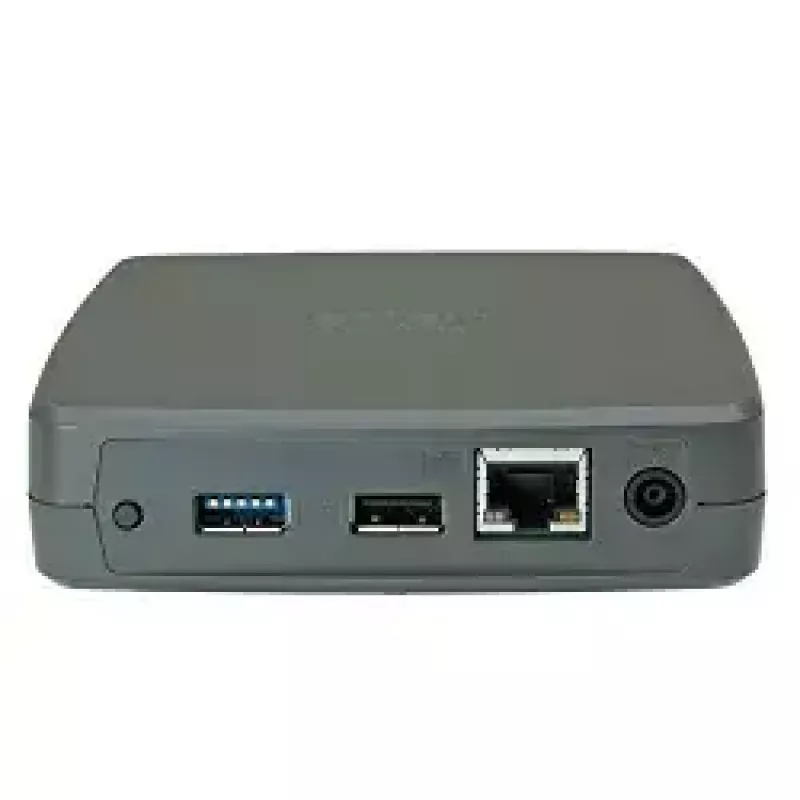

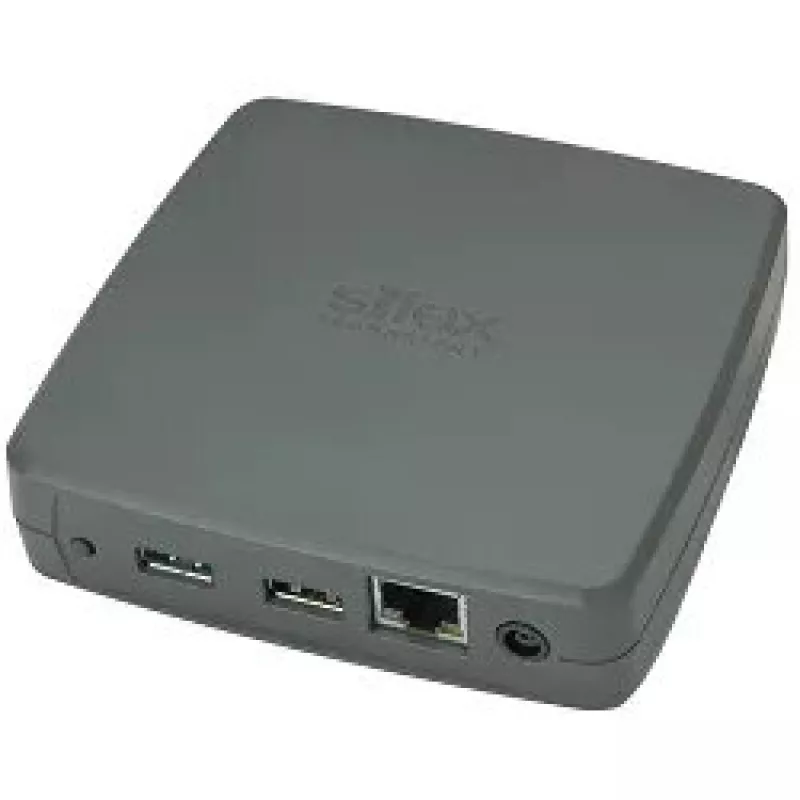

Silex DS-700 Ethernet bekabelde USB-adapter

The Silex DS-700 Ethernet Wired USB Powered Adapter enables connection and sharing of USB devices over a network. By converting a USB device port to a network port, the DS-700 lets printers, scanners, disk drives, card readers and other USB peripherals be placed anywhere on the network instead of being attached directly to a computer. The adapter supports USB 3.0 SuperSpeed for higher data bandwidth over a gigabit Ethernet LAN and is powered via USB for flexible installations.

Advantages

The DS-700 provides higher transfer speeds than legacy USB 2.0 device servers thanks to its USB 3.0 SuperSpeed port, supports isochronous transfers for devices such as webcams and USB speakers, and functions as a network print server with LPR and RAW printing support. It supports device sharing across two isolated networks and includes SX Virtual Link software for managing access to shared USB devices. Configuration is available through the Device Server Setup utility, an integrated web page, or AMC Manager for quick installation.

Suitable for

• Sharing printers and scanners across a local network
• Providing network access to external disk drives and card readers
• Connecting USB webcams and speakers that require isochronous transfer
• Enabling USB device access from multiple users or two isolated networks

Key specifications

• Brand: Silex
• Model: DS-700
• MPN: E1598
• EAN: 4944406555916
• Interface: USB (device side) and 1 × Gigabit Ethernet LAN (RJ-45)
• USB version: USB 3.0 SuperSpeed (backward compatible)
• Print protocols: LPR, RAW
• Weight: 0.135 kg

How to use

Connect the DS-700 to a USB device and to the network via the RJ-45 Ethernet port; the unit is powered through the USB connection. Install SX Virtual Link or use the Device Server Setup utility, the integrated configuration web page, or AMC Manager to detect the adapter on the network and configure device sharing settings. For printing, add the network printer using LPR or RAW protocol as supported by your operating system.

Recommendations

Place the DS-700 close to the USB device to minimise cable length, ensure a stable gigabit Ethernet connection for best performance, and keep firmware and SX Virtual Link software updated to maintain compatibility and security.
