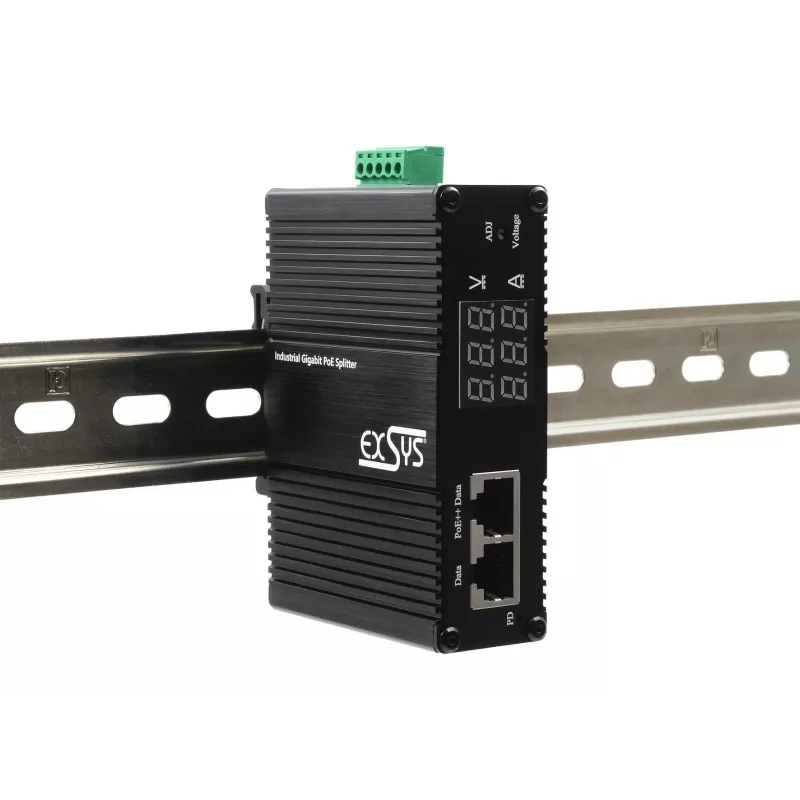

Exsys PoE-splitter EX-60327 50 W - Gigabit Ethernet

The Exsys PoE Splitter EX-60327 is a high-performance Power over Ethernet splitter designed to deliver both data and power to non-PoE devices. Compliant with IEEE 802.3at/af standards, it provides up to 50 W of power and supports Gigabit Ethernet data rates, making it ideal for powering IP cameras, wireless access points, and other network devices.

Advantages

This PoE splitter simplifies installation by eliminating the need for separate power cables. It features selectable DC output voltages (12V, 19V, 24V) to accommodate a wide range of devices. The metal housing ensures durability and effective heat dissipation, while LED indicators provide clear status monitoring for power, PoE, and data.

Suitable for

• IP cameras and surveillance systems
• Wireless access points and routers
• Network switches and hubs
• Any Ethernet device requiring power via PoE

Key specifications

• Product Type: PoE Splitter
• PoE Standard: IEEE 802.3at (PoE+) / 802.3af (PoE)
• Max Power Output: 50 W
• Data Transfer Rate: 10/100/1000 Mbps (Gigabit Ethernet)
• DC Output Voltage: 12V / 19V / 24V (selectable)
• PoE Input Connector: 1x RJ45 (Data + Power)
• Data Output Connector: 1x RJ45 (Data Only)
• DC Output Connector: 1x DC Power Jack
• Input Voltage Range (PoE): 44 - 57 V DC
• LED Indicators: Power, PoE, Data
• Housing Material: Metal
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 10% to 90% (non-condensing)
• Protection Features: Overload, Short-circuit
• Compliance: CE, FCC

Recommendations

For optimal performance, use with a PoE+ switch or injector that can supply at least 50 W. Ensure the DC output voltage matches your device requirements before connection.
