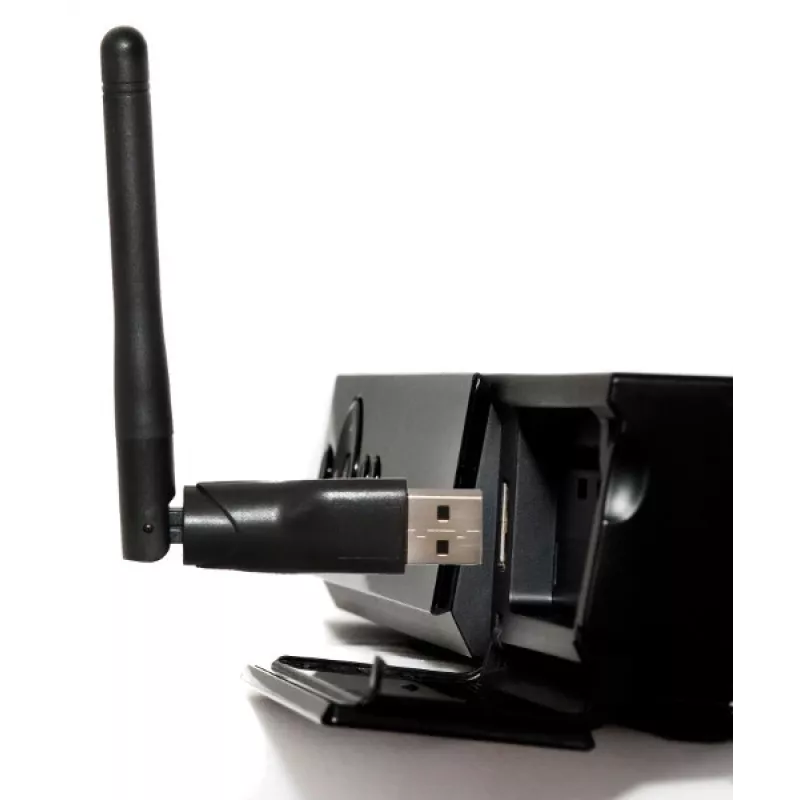

Ferguson W03 Wi-Fi-adapter

The Ferguson W03 is a Wi-Fi adapter with USB interface, supporting IEEE 802.11b/g/n standards in 1T1R mode. It operates in the 2.412–2.4835 GHz frequency range and offers data rates up to 54 Mbps for 802.11b/g and up to 150 Mbps for 802.11n.

Key features

• Supports IEEE 802.11b/g/n, 1T1R mode
• USB 1.1 and USB 2.0 interface
• Frequency range: 2.412–2.4835 GHz (subject to legal regulations in each country)
• Data rates: up to 54 Mbps for 802.11b/g, up to 150 Mbps for 802.11n
• Security protocols: WEP, WPA, WPA2, WPAI, 802.1X
• Compatible with Windows 2000/XP/Vista/7, Mac OS X, Linux 2.6.X

Specifications

• Brand: Ferguson
• Model: W03
• Transmit power: 802.11b -86±1 dBm; 802.11g -74±1 dBm; 802.11n (HT20) -70±1 dBm; 802.11n (HT40) -70±1 dBm
• Power consumption: 5V DC input, 130 mA
• Range: indoors up to 100 m, outdoors up to 300 m (depending on terrain)
• Operating temperature: -10°C to 60°C
• Storage temperature: -20°C to 70°C
• Operating humidity: 10%–95% non-condensing
• Storage humidity: 5%–95% non-condensing
