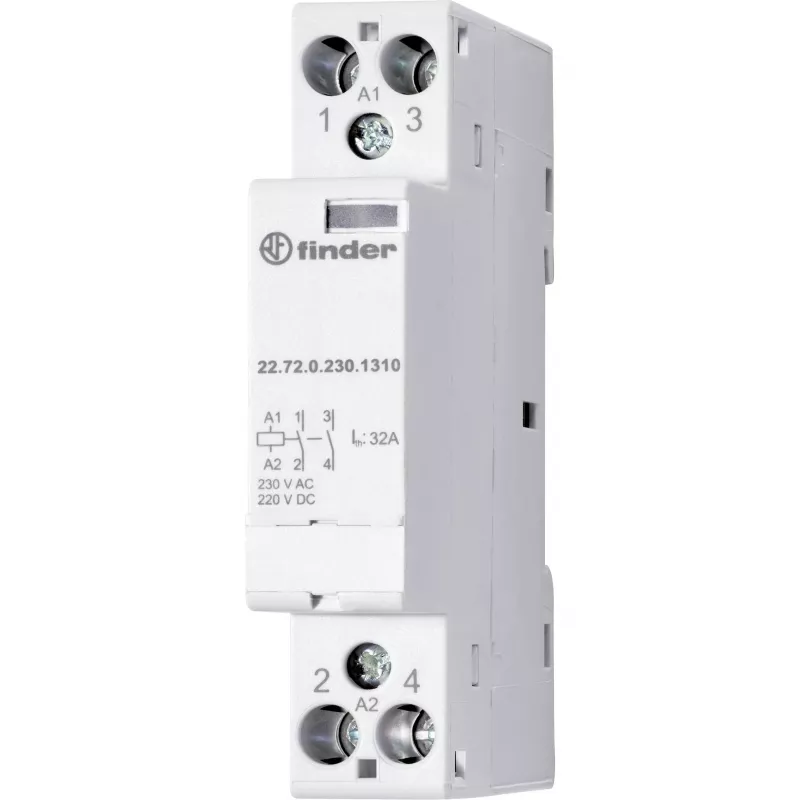

Finder 22.72.0.230.1310 modulaire contactor 2 NO 25 A 230 V AC

Modular contactor with 2 normally open contacts, rated for 25 A at 400 V AC, and a 230 V AC coil. It mounts on a DIN rail and occupies one 17.5 mm module.

Advantages

High electrical durability of 100,000 cycles at AC-1 load. Compact single-module design saves space in distribution boards. Suitable for frequent switching up to 300 cycles per hour.

Suitable for

• Control of lighting circuits in residential and commercial buildings
• Switching of resistive loads up to 10 kW at 400 V AC
• Integration into building automation systems with DIN rail mounting

Key specifications

• Contact configuration: 2 NO
• Rated current (AC-1): 25 A
• Rated voltage (AC-1): 400 V AC
• Coil voltage: 230 V AC
• Mechanical durability: 1,000,000 cycles
• Electrical durability (AC-1): 100,000 cycles
• Operating temperature range: -40 to +40 °C
• Module width: 17.5 mm (1 module)

Recommendations

Use with external auxiliary contact modules for status indication or control feedback.
