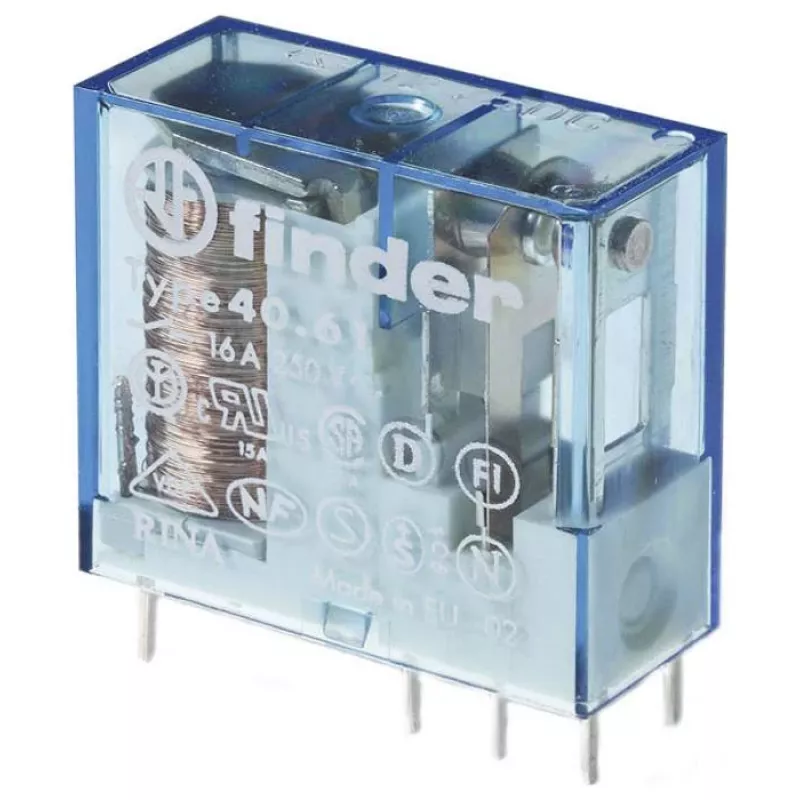

Finder 40.61.9.024.1300 miniatuur-PCB-relais 24V DC 16A 1NO

In industrial control panels and automation systems, the Finder 40.61.9.024.1300 miniature PCB relay provides reliable switching of loads up to 16 A. Its 24 V DC coil and compact through-hole design make it suitable for printed circuit boards in machinery, HVAC equipment, and power distribution modules.

Key specifications

• Coil voltage: 24 V DC
• Contact configuration: 1 NO (SPST-NO)
• Rated current: 16 A
• Max switching voltage: 400 V AC
• Contact material: AgNi
• Mounting: PCB through-hole
• Operating temperature: -40 to +85 °C

Why choose it

This relay handles high inrush currents and offers a flux-proof construction, protecting the contacts from contamination during soldering and cleaning. Its low coil power of 0.5 W reduces heat generation, while the 5-pin layout simplifies PCB routing.

Ideal use cases

• Switching resistive and inductive loads in automation controllers
• Controlling motors, valves, and heating elements
• Interface between PLC outputs and high-power circuits

Good to know

The relay has a dielectric strength of 5000 V AC between coil and contacts, ensuring safe isolation. It is part of the Finder 40 series, known for consistent performance in demanding environments.
