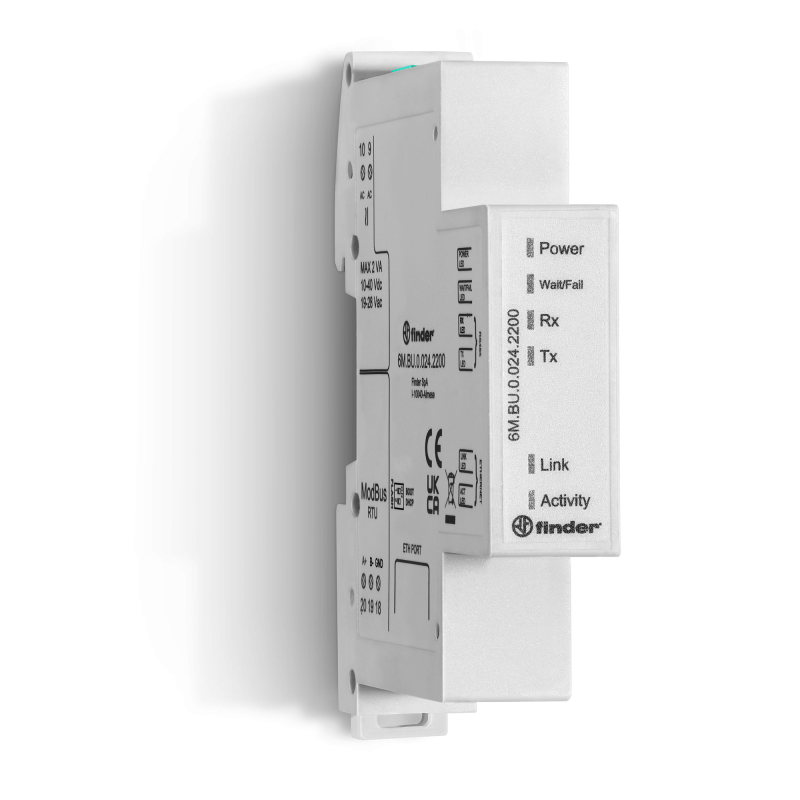

Finder 6M.BU.0.024.2200 Modbus TCP/IP naar RS485 RTU gateway, 24 V AC/DC

The Finder 6M.BU.0.024.2200 links Modbus RTU devices on an RS485 network with Modbus TCP/IP clients on Ethernet. It is a communication gateway for industrial control and monitoring systems, not a three-phase current measuring instrument. It provides no direct current-transformer measurement inputs.

The 10/100 Mb/s Ethernet interface supports up to ten clients, while the RS485 interface supports up to 200 devices at 1200–115200 bit/s. Communication settings are configured through the integrated web server. Six front LEDs show power and communication status. Supply, RS485 and Ethernet ports are isolated at 1500 V. The DIN-rail device requires a suitable external 24 V AC or DC supply; the depicted power supply is a separate device.

• 24 V AC/DC; AC: 19–28 V; DC: 10–40 V
• Ethernet 10/100 Mb/s; RS485 1200–115200 bit/s
• IP20; −20…+60 °C; <1.5 W
