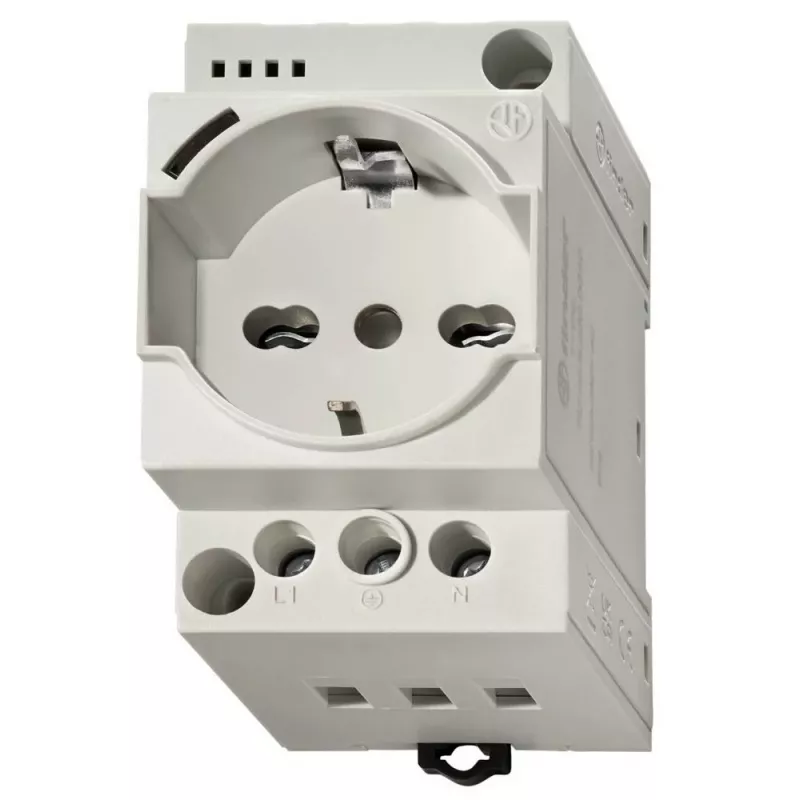

Finder 7U.00.8.230.0000 DIN-rail Schuko-stopcontact, 230 V AC, 16 A, grijs RAL 7035

In control cabinets and distribution boards, a reliable power outlet is essential for maintenance and testing. The Finder 7U.00.8.230.0000 is a DIN rail mounted Schuko socket outlet that provides a convenient 230 V AC power source directly on the rail. It is commonly used by electricians and panel builders to power tools, laptops, or test equipment during commissioning and servicing.

Key specifications

• Socket type: Schuko (Type F)
• Rated voltage: 230 V AC
• Rated current: 16 A
• Number of outlets: 1
• Mounting type: DIN rail (35 mm)
• Module width: 2.5 modules
• Integrated fuse holder for 5x20 mm fuse (fuse not included)
• Terminal type: Screw terminals
• Max. conductor cross-section: 2.5 mm²
• Protection degree: IP20
• Housing material: Thermoplastic
• Colour: RAL 7035 Grey
• Operating temperature: -20 to +50 °C
• Series: Finder 7U Series

Why choose it

The socket outlet is designed for easy installation on standard 35 mm DIN rails, saving space and simplifying wiring. The integrated fuse holder adds an extra layer of protection for connected devices, and the screw terminals ensure secure connections. Its grey RAL 7035 housing blends seamlessly with most industrial enclosures.

Ideal use cases

• Providing temporary power inside control cabinets for maintenance
• Powering test instruments during panel commissioning
• Supplying power to auxiliary equipment in distribution boards

Good to know

The socket is rated IP20, meaning it is intended for use in dry, indoor environments. The fuse holder accepts standard 5x20 mm fuses, allowing you to select the appropriate fuse rating for your application. The module width of 2.5 modules (approximately 45 mm) makes it compact enough for dense installations.
