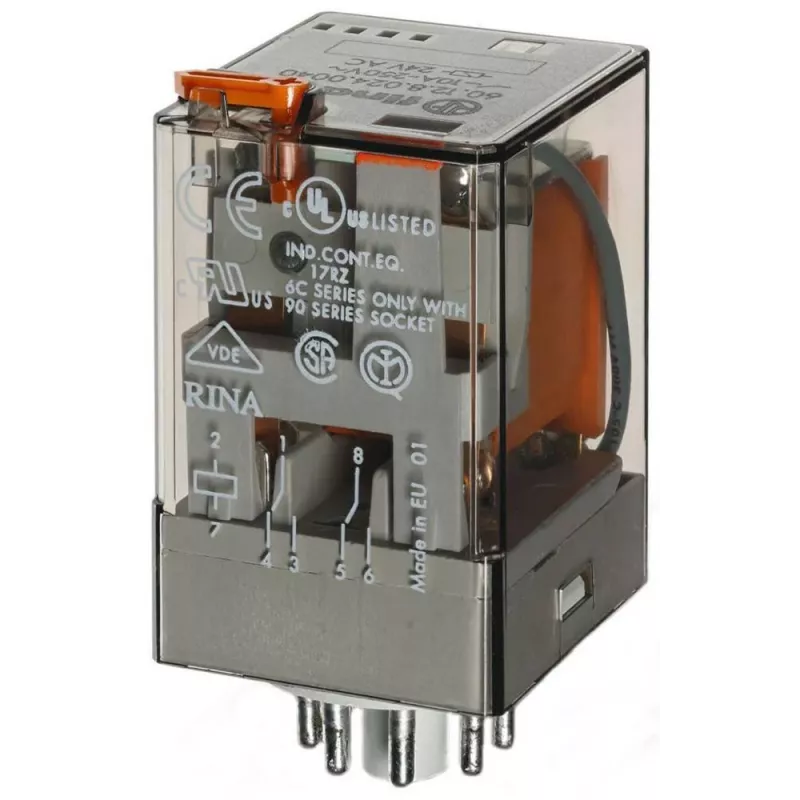

Finder industrieel relais 12 VAC 2,2 VA DPDT 10A 250VAC 2 CO steekbaar 60.12.8.012.0040

Control engineers and panel builders often need a compact, reliable relay for switching moderate AC loads in industrial control cabinets. The Finder 60.12.8.012.0040 is a plug-in industrial relay with a 12 V AC coil and DPDT contacts, suited for automation, HVAC, and machinery control where space and performance matter.

Key specifications

• Coil voltage: 12 V AC, 2.2 VA
• Contact configuration: DPDT (2 changeover)
• Rated current: 10 A
• Rated voltage: 250 V AC
• Contact material: AgNi (silver nickel)
• Mounting: plug-in for Finder 90 series sockets
• Terminals: Faston 250 (6.3 x 0.8 mm)
• Operating temperature: -40 to +70 °C
• Mechanical life: 10 x 10^6 operations
• Electrical life: 100 x 10^3 operations at rated load
• Max switching power (AC1): 2500 VA

Why choose it

This relay offers a proven plug-in design that simplifies installation and maintenance. Its AgNi contacts provide good conductivity and resistance to wear, while the flux-proof construction (RT I) protects against dust and contaminants, ensuring long-term reliability in demanding environments.

Ideal use cases

• Industrial automation and control panels
• HVAC and building management systems
• Machinery and equipment control
• General purpose switching of AC loads

Good to know

The relay is designed for use with Finder 90 series sockets, which provide secure mounting and easy wiring. Its Faston terminals allow quick connections, and the wide operating temperature range makes it suitable for harsh conditions.
