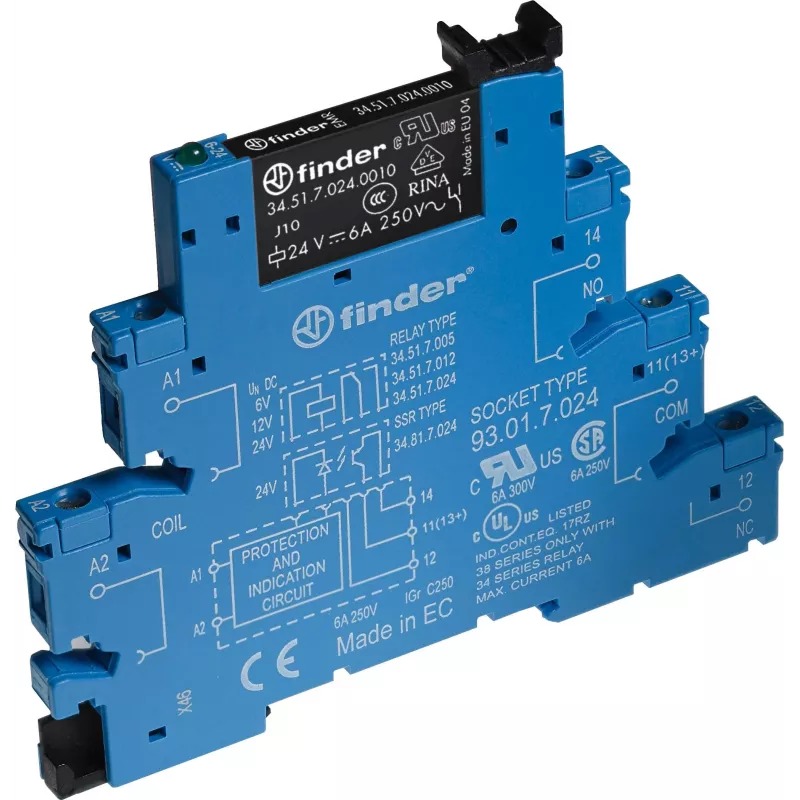

Finder interfacerelaismodule 38.51.7.024.5050, 24 V DC spoel, 1 CO contact, 6 A, schroefklemmen, DIN-rail

In industrial control cabinets, the Finder 38.51.7.024.5050 interface relay module switches loads up to 6 A using a 24 V DC coil. Its 6.2 mm slim housing saves space on the DIN rail, while screwless push-in terminals speed up wiring. A green LED confirms coil status, and the integrated suppression diode protects sensitive PLC outputs from voltage spikes.

Key specifications

• Coil voltage: 24 V DC
• Contact configuration: 1 changeover (CO / SPDT)
• Rated current: 6 A
• Rated voltage: 250 V AC
• Terminal type: screwless push-in
• Mounting: DIN rail (35 mm)
• Width: 6.2 mm
• Operating temperature: -40 to +70 °C
• Contact material: AgNi
• Max switching voltage: 400 V AC
• Max switching power: 1500 VA (AC1)
• Dielectric strength coil-contact: 6 kV (1.2/50 µs)
• Protection degree: RT II (flux proof)

Why choose it

This relay module combines a compact footprint with reliable switching performance. The push-in terminals reduce installation time, and the LED plus diode protection enhance operational safety. It is suitable for PLC interfacing and general automation tasks.

Ideal use cases

• PLC output isolation and signal amplification
• Switching small motors, valves, and contactors
• Building automation and HVAC control
• Machine building and panel wiring

Good to know

The relay is part of the Finder 38 series and mounts on standard 35 mm DIN rails. Its flux-proof design (RT II) allows use in less protected environments. The silver nickel contacts ensure long electrical life under rated load.
