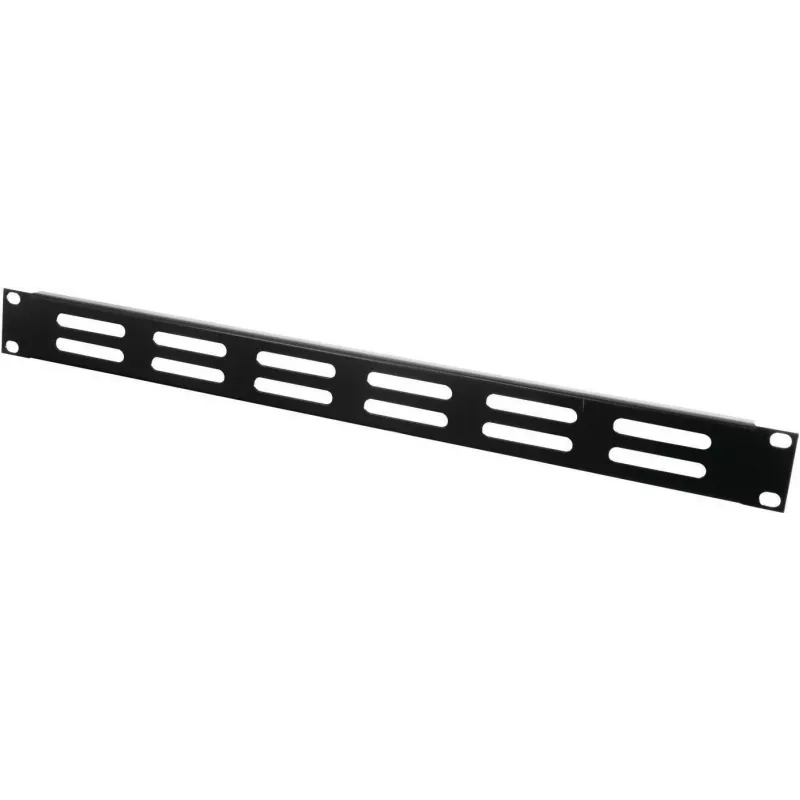

Frontpaneel Omnitronic Z-19U 1HE met ventilatie voor 19-inch rack

Omnitronic Z-19U front panel is a 1HE (1U) front plate for standard 19-inch racks with integrated ventilation slots. Designed to fit commonly used rack enclosures, it offers passive airflow through vent openings to help maintain lower temperatures for installed audio, broadcast and IT devices while preserving a clean, professional rack appearance.

Advantages

The front panel provides a compact 1HE mounting height and durable construction suitable for repeated installation and removal. Ventilation slots are arranged to promote passive airflow without adding moving parts or noise. The standardized 19-inch format ensures compatibility with rack rails and faceplate mounting accessories, and the unobtrusive design allows easy cable access and tidy front-end organization.

Suitable for

Key specifications

How to use

Install the front panel into an available 1U space on a 19-inch rack by aligning the panel with the rack rails and securing it using appropriate rack screws. Position the vented panel where airflow is needed at the rack front; it may be combined with blank panels or vented panels in other positions to balance airflow across the rack. No electrical connection or active cooling is required.

Recommendations

For effective passive cooling, avoid blocking the vent openings with cables or accessories and maintain unobstructed front-to-back airflow. Use the panel in combination with rear vents, perforated shelves or fan-assisted panels when higher thermal dissipation is required. Inspect and clean vents periodically to prevent dust accumulation.
