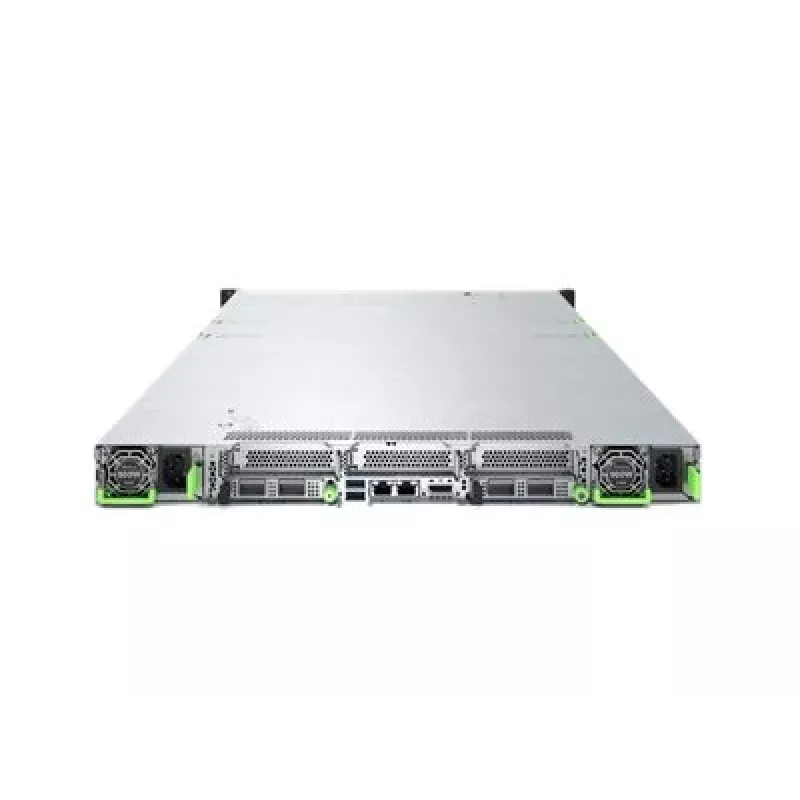

Fujitsu PRIMERGY RX2530 M8 rack server 1U Xeon 6507P 8-core 32GB DDR5 ECC 8x 2,5 inch hot-swap

Powered by the Intel Xeon 6507P processor with 8 cores, the Fujitsu PRIMERGY RX2530 M8 delivers exceptional compute density in a 1U rack form factor. With 32 GB of DDR5 ECC memory and support for up to 8 TB across 32 DIMM slots, this server is built for demanding virtualization and data-intensive workloads.

Overview

The PRIMERGY RX2530 M8 is a dual-socket rack server designed for space-constrained data centers. It features 8 hot-swap 2.5-inch drive bays supporting SAS, SATA, and NVMe storage, along with an onboard RAID controller for data protection. Dual 10 Gigabit Ethernet ports ensure high-speed networking, while redundant hot-plug power supplies and Fujitsu iRMC S6 remote management deliver enterprise-grade reliability and manageability.

What stands out

• Intel Xeon 6507P processor with 8 cores for efficient multi-threaded performance
• 32 GB DDR5 ECC memory, expandable to 8 TB for memory-intensive applications
• Flexible storage: 8 hot-swap bays for SAS/SATA/NVMe drives
• Dual 10GbE networking for high-throughput connectivity
• Redundant power and advanced remote management for maximum uptime

Technical details

• Form Factor: 1U rack server
• Processor: Intel Xeon 6507P, 8 cores, 2 sockets (1 installed)
• Memory: 32 GB DDR5 ECC, 32 DIMM slots, max 8 TB
• Storage: 8x 2.5-inch hot-swap bays, SAS/SATA/NVMe support
• RAID: Onboard Fujitsu PRAID EP540i
• Network: 2x 10 Gigabit Ethernet
• Expansion: Up to 3x PCIe 5.0 slots
• Power: Redundant hot-plug power supplies (2x 800W)
• Management: Fujitsu iRMC S6
• Chipset: Intel C741
• Security: TPM 2.0, Secure Boot

Our verdict

The PRIMERGY RX2530 M8 combines powerful processing, expansive memory capacity, and versatile storage in a compact 1U design, making it an excellent choice for modern data centers seeking performance and efficiency.
