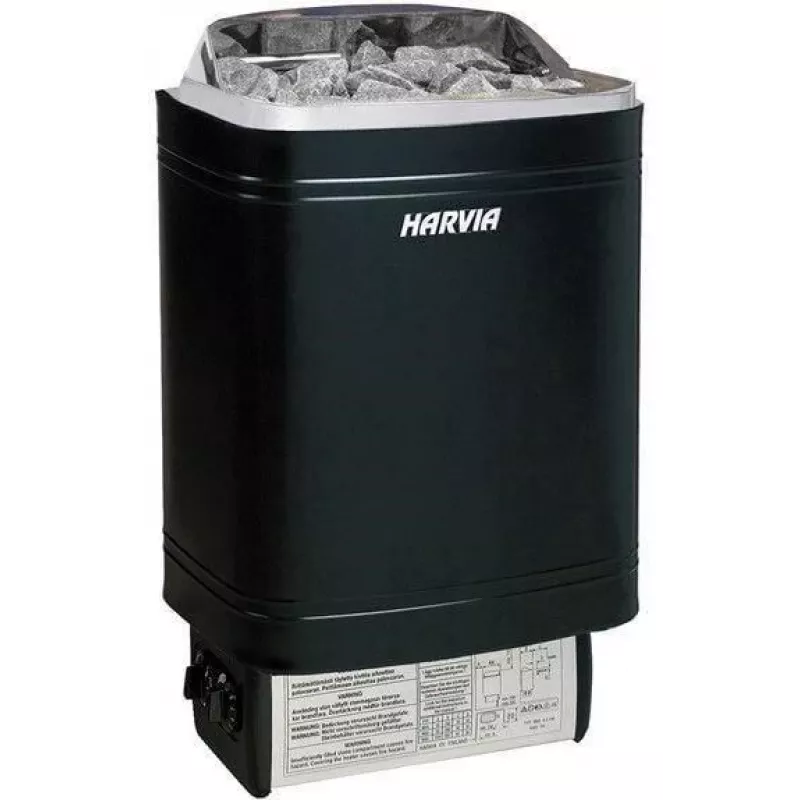

Elektrische saunakachel SteelTop M90 9kW B

The Electric Sauna Heater SteelTop M90 9kW B is a high-performance wall-mounted sauna heater designed for private and semi-public saunas. With a robust 9 kW power output and a stainless steel housing, it ensures efficient heating and long-lasting durability. The integrated mechanical thermostat and timer allow for easy operation, while the large stone capacity of up to 20 kg provides gentle, even heat distribution.

Advantages

This sauna heater offers reliable performance with three resistive heating elements, each rated at 3000 W, ensuring quick heat-up times. The stainless steel construction resists corrosion and maintains a sleek appearance. Safety features include overheat protection and specified safety distances for installation.

Suitable for

• Private saunas with a volume of 8-14 m³
• Semi-public saunas requiring a 9 kW heater
• Wall-mounted installations with three-phase power supply (400V 3N~)

Key specifications

• Power Output: 9 kW
• Recommended Sauna Volume: 8-14 m³
• Stone Capacity: Max 20 kg
• Material: Stainless Steel
• Control Unit: Integrated (Thermostat & Timer)
• Timer Type: Mechanical (0-4h pre-set, 0-4h operating)
• Supply Voltage: 400V 3N~ (Three-phase)
• Fuse Size: 3 x 16 A
• Connection Cable Size: 5 x 2.5 mm²
• Installation Type: Wall-mounted
• Heating Element Type: Resistive Coils
• Overheat Protection: Yes
• Safety Distance (Side/Rear): 50 mm
• Safety Distance (Front to Lower Bench): 100 mm
• Safety Distance (Ceiling from Top): 1100 mm
• Heating Elements Quantity: 3
• Heating Element Power (each): 3000 W
• Color: Steel / Black

Recommendations

For optimal performance, ensure proper ventilation and adhere to the specified safety distances. Use only sauna stones recommended for electric heaters. Professional installation by a qualified electrician is required.
