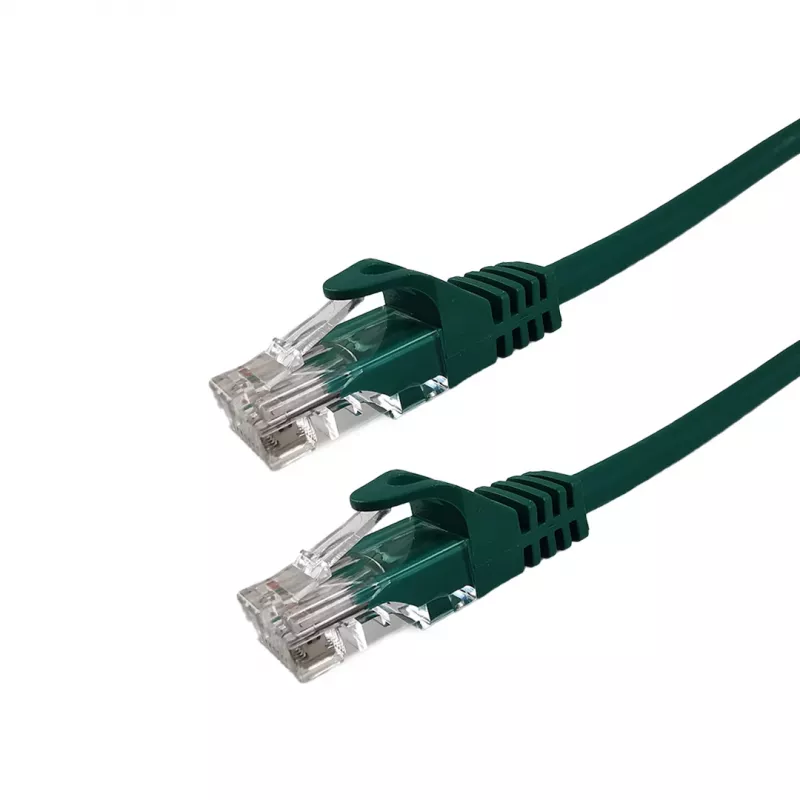

Grafenthal Patchkabel CAT6A S/FTP CU LSZH 5,00m groen

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 5.00m Green is a high-performance Ethernet patch cable designed for reliable 10 Gigabit network connections. Constructed with 100% copper conductors and S/FTP shielding, it ensures minimal crosstalk and interference, making it ideal for data centers and demanding network environments. The LSZH jacket provides enhanced safety in case of fire, reducing toxic smoke and halogen emissions.

Advantages

This cable offers superior signal integrity and data transfer rates up to 10 Gbps, supporting bandwidths up to 500 MHz. The gold-plated contacts ensure corrosion resistance and optimal conductivity. It supports PoE, PoE+, and PoE++ for powering devices like IP cameras and wireless access points. The stranded construction provides flexibility for easy installation in tight spaces.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• High-speed Ethernet connections (10GBASE-T)
• Power over Ethernet applications
• Structured cabling systems

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: CAT6A
• Shielding Type: S/FTP
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 5.00 meters
• Cable Color: Green
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded
• Connector Plating: Gold-plated contacts
• PoE Support: Yes (PoE, PoE+, PoE++)
• Wiring Standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with CAT6A compatible switches and patch panels. Ensure proper cable management to maintain signal integrity. This cable is an excellent choice for high-density environments where reliability and safety are paramount.
