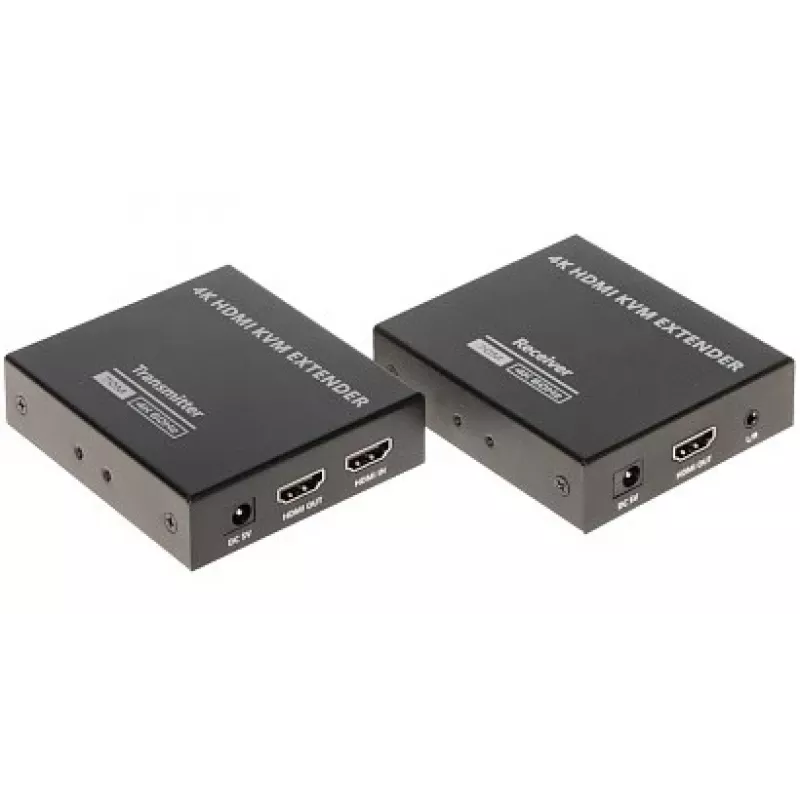

HDMI + USB KVM-extender via IP, 4K@30Hz, 120m, PoE, IR, metaal

Extend HDMI video and USB signals up to 120 meters over a single Cat5e/6/6a cable with this HDMI + USB KVM Extender over IP. It supports 4K@30Hz resolution and USB 2.0 for keyboard and mouse control, making it ideal for remote workstation setups, digital signage, and control rooms. The metal housing ensures durability, while PoE support simplifies installation by eliminating the need for separate power at the receiver.

Advantages

Transmit uncompressed 4K video with low latency (<50ms) and extend USB 2.0 devices, including keyboards, mice, and touchscreens. The extender supports IR pass-through for remote control of source devices and EDID management for seamless display compatibility. With Power over Ethernet (802.3af/at), you can power the receiver directly from the transmitter, reducing cable clutter. The metal enclosure provides robust protection for industrial environments.

Suitable for

• Remote KVM control of PCs and servers in IT rooms
• Digital signage in retail, hospitality, and corporate settings
• Home theatre setups where the source is in a different room
• Industrial automation and control rooms requiring long-distance signal extension
• Educational facilities needing to share a single computer across multiple displays

Key specifications

• Extends HDMI + USB over IP via Cat5e/6/6a cable up to 120m
• Supports resolutions up to 4K@30Hz (3840x2160)
• USB 2.0 extension for keyboard, mouse, and other peripherals
• IR pass-through for remote control extension
• EDID pass-through for optimal display resolution
• Power over Ethernet (802.3af/at) support
• Metal housing for durability
• Sender ports: 1x HDMI, 1x USB-B, 1x IR In, 1x RJ45
• Receiver ports: 1x HDMI, 2x USB-A, 1x IR Out, 1x RJ45
• Operating temperature: 0°C to 45°C

Recommendations

For best performance, use solid-core Cat6 cable and ensure both ends are properly grounded. When using PoE, verify that your network switch or injector supports 802.3af/at. Position the IR receiver within line of sight of the remote control for reliable operation.
