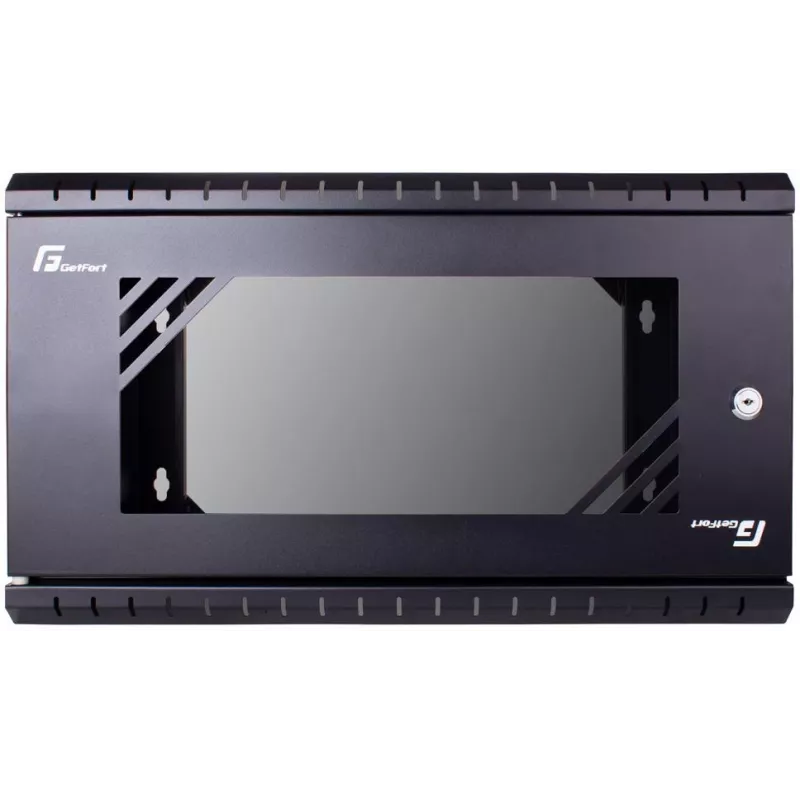

GETFORT ECO v3 19 inch 4U 520x450 wandmontage-rackbehuizing zwart

The GETFORT ECO v3 19" 4U Wall Mount Rack Cabinet is a robust and secure enclosure designed for mounting network and IT equipment in space-constrained environments. With a 4U height and 520mm width, it provides ample space for switches, patch panels, and other 19-inch devices. The cabinet features a tempered glass front door with a steel frame and lock, removable side panels with locks, and cable entry points with brush strips for effective cable management. Constructed from cold-rolled steel with a black RAL 9004 finish, it offers a static load capacity of 60 kg and includes passive ventilation with two fan slots for optional active cooling. The cabinet is pre-assembled and comes with mounting accessories, making installation quick and easy.

Advantages

This wall-mount rack cabinet offers a compact solution for organizing and securing your network equipment. Its lockable front door and side panels provide physical security, while the cable management features help maintain a tidy installation. The reversible door allows flexible placement, and the fan-ready design ensures your equipment stays cool.

Suitable for

• Small to medium-sized network installations
• Server rooms, offices, and retail spaces
• Mounting switches, patch panels, and other 19-inch equipment

Key specifications

• Rack Standard: 19 inch
• Rack Units: 4U
• Mounting Type: Wall-mount
• External Dimensions (WxDxH): 520 x 450 x 230 mm
• Internal Usable Depth: Approx. 400 mm
• Material: Cold-rolled steel
• Front Door: Tempered glass with steel frame, lockable
• Side Panels: Removable, lockable
• Color: Black (RAL 9004)
• Static Load Capacity: 60 kg
• Protection Rating: IP20
• Ventilation: Passive, fan ready (2 fan slots)
• Door Reversibility: Yes
• Included Accessories: 2 keys for front door, 2 keys for side panels, mounting kit

Recommendations

For optimal cable management, use patch panels and cable managers. Ensure the wall can support the total weight of the cabinet and installed equipment. For active cooling, install optional 1U fan units in the available slots.
