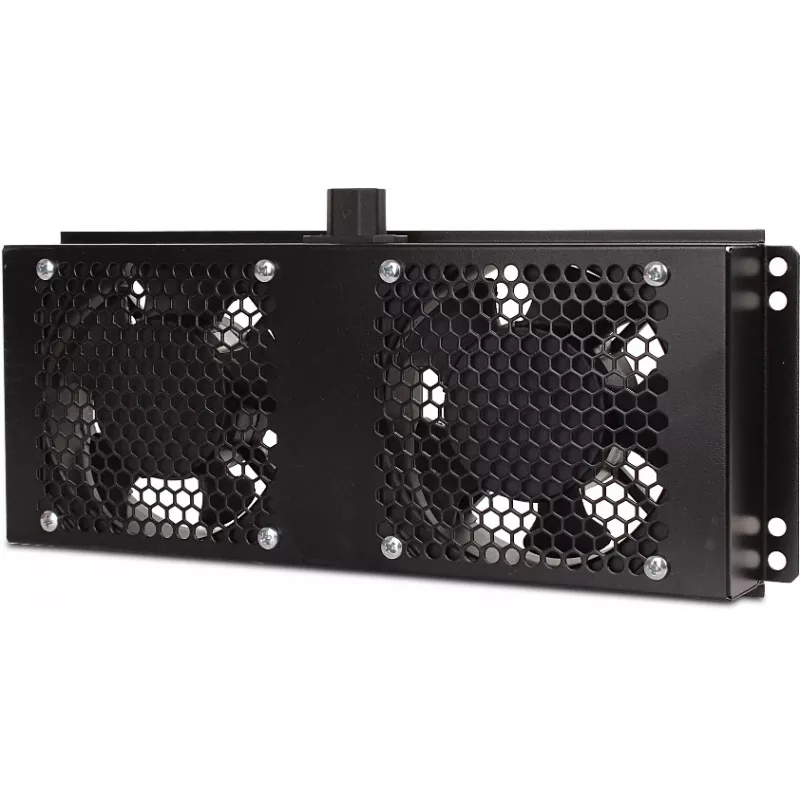

Getfort GF-FAN2 1U 19 inch rack-ventilatiepaneel met 2 ventilatoren, zwart

The Getfort GF-FAN2 is a 1U 19-inch rack fan panel designed for efficient cooling of server racks and network cabinets. Equipped with two high-performance axial fans, it delivers a total airflow of 200-240 m³/h, ensuring optimal temperature management for your equipment. The panel is constructed from durable steel with a sleek black finish, making it a reliable and professional addition to any data center or server room.

Advantages

This fan panel offers a compact 1U design that saves valuable rack space while providing powerful cooling. The dual fan configuration ensures redundancy and balanced airflow, reducing the risk of overheating. With a simple AC 230V power supply and IEC C14 inlet, installation is straightforward and compatible with standard rack power distribution units. The low noise level of 40-45 dB per fan makes it suitable for office environments.

Suitable for

• Cooling 19-inch server racks and network cabinets
• Data centers, server rooms, and IT closets
• Enclosures housing switches, routers, servers, and other heat-generating equipment

Key specifications

• Rack Unit Size: 1U
• Rack Compatibility: 19-inch
• Number of Fans: 2
• Power Supply: AC 230V, 50/60 Hz

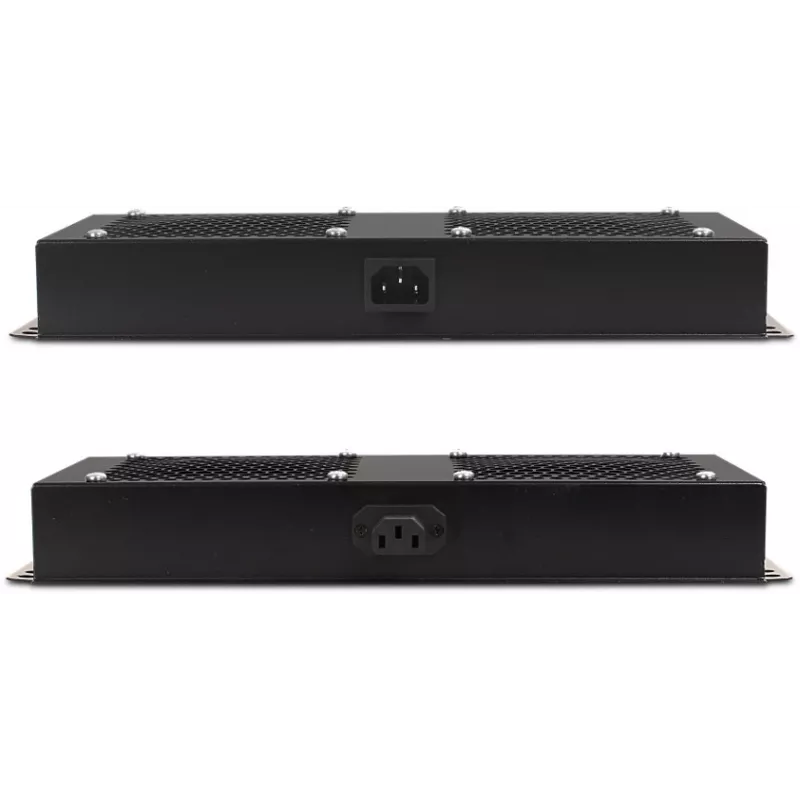

• Power Connector: IEC C14 Inlet
• Material: Steel
• Color: Black
• Mounting Type: Rack Mount
• Fan Type: Axial
• Total Airflow: 200-240 m³/h
• Noise Level (per Fan): 40-45 dB
• Power Consumption (Total): 28W
• Operating Temperature: 0°C to 50°C
• Bearing Type: Sleeve Bearing
• Fan Dimensions: 120x120x38 mm
• Protection Class: IP20
• Certifications: CE, RoHS

Recommendations

For optimal cooling performance, install the fan panel at the top or bottom of the rack to promote natural convection. Ensure adequate clearance for airflow and regularly clean the fan filters to maintain efficiency.
