GETFORT PGF-5EFTP24-B6-G patchpanel FTP Cat.5e 24 poorten Grijs 1U

The GETFORT PGF-5EFTP24-B6-G is a high-performance FTP (Foiled Twisted Pair) patch panel designed for structured cabling in 19-inch racks. With 24 RJ45 ports and Category 5e certification, it supports data transmission speeds up to 1000 Mbps (Gigabit Ethernet), making it ideal for enterprise networks, data centers, and telecommunications rooms. The shielded design minimizes electromagnetic interference (EMI), ensuring reliable signal integrity.

Advantages

This patch panel offers robust construction with a SPCC steel housing and gold-plated phosphor bronze contacts for long-lasting connectivity. The 1U form factor saves rack space, while the integrated grounding point simplifies installation. It supports both T568A and T568B wiring standards, providing flexibility for various cabling schemes.

Suitable for

• Network infrastructure in offices, schools, and hospitals
• Data centers requiring reliable Gigabit Ethernet connections
• Telecommunications rooms and server racks
• Structured cabling systems for voice and data

Key specifications

• Product Type: Network Patch Panel
• Number of Ports: 24
• Network Standard: Category 5e (Cat.5e)
• Shielding Type: FTP (Foiled Twisted Pair), Shielded
• Mounting Type: 19-inch Rack Mount
• Rack Unit (RU) Size: 1U
• Color: Grey
• Front Connectors: RJ45 Female

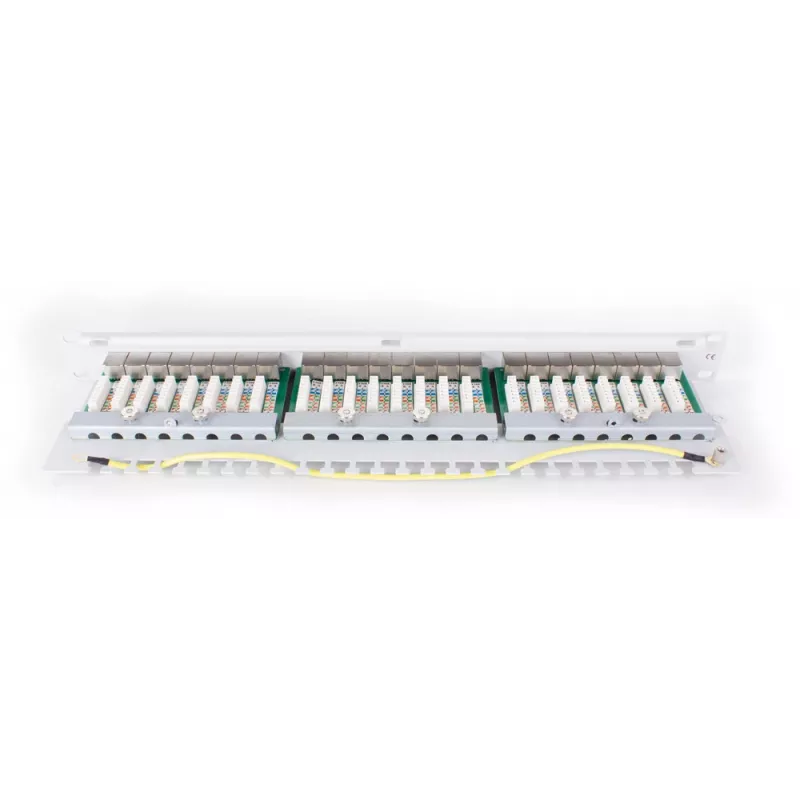

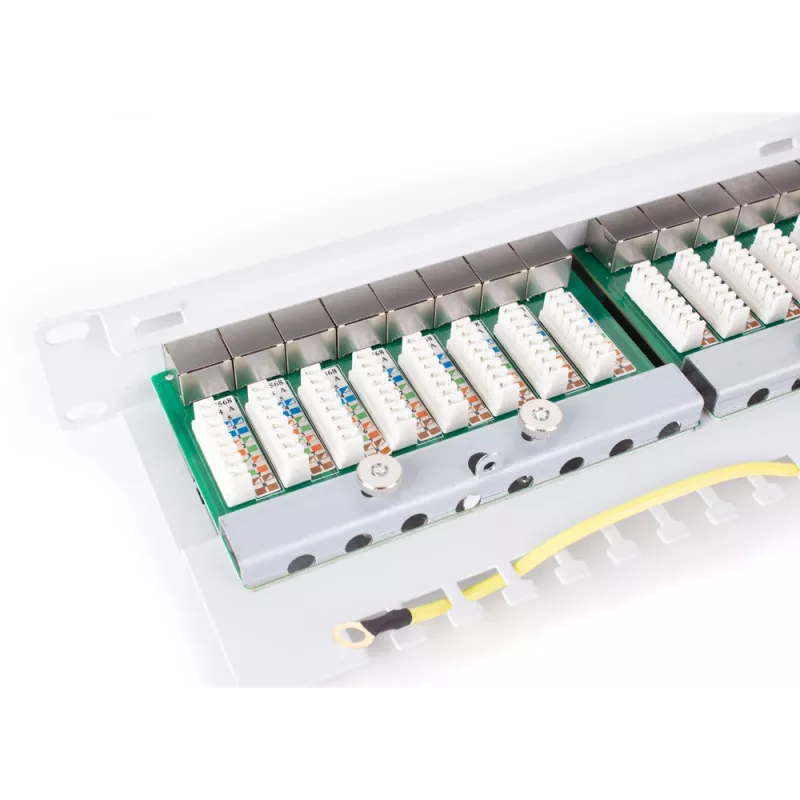

• Rear Termination: IDC (Insulation Displacement Connector)
• Wiring Standard: TIA/EIA 568A/B
• Housing Material: SPCC Steel
• Contact Material: Phosphor Bronze
• Contact Plating: 50 micron Gold-plated
• Supported Protocols: 10BASE-T, 100BASE-TX, 1000BASE-T (Gigabit Ethernet)

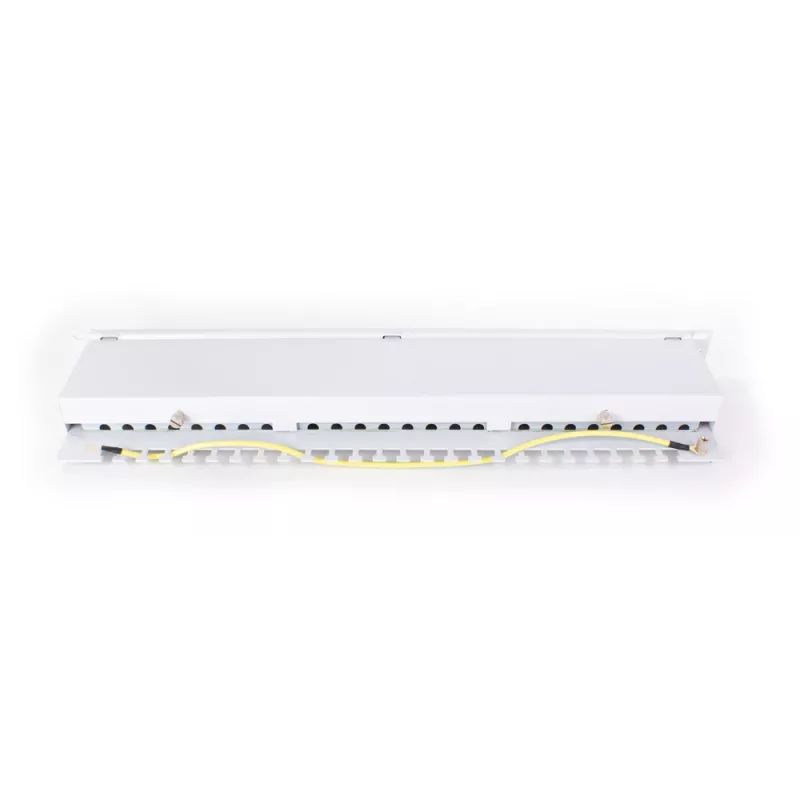

• Grounding: Integrated grounding wire/point
• Operating Temperature: -10°C to 60°C
• Durability (RJ45): 750 mating cycles
• Durability (IDC): 200 termination cycles
• Certifications: RoHS Compliant

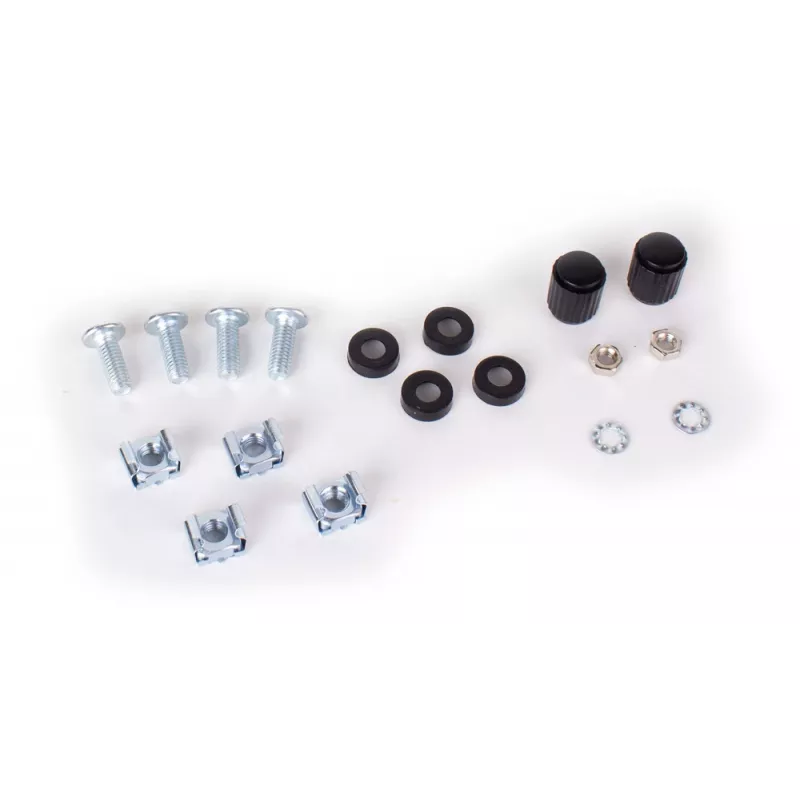

• Included Accessories: Cable ties, mounting screws

Recommendations

For optimal performance, use with Cat.5e or higher FTP cables and ensure proper grounding. This patch panel is a cost-effective solution for high-density network environments.
