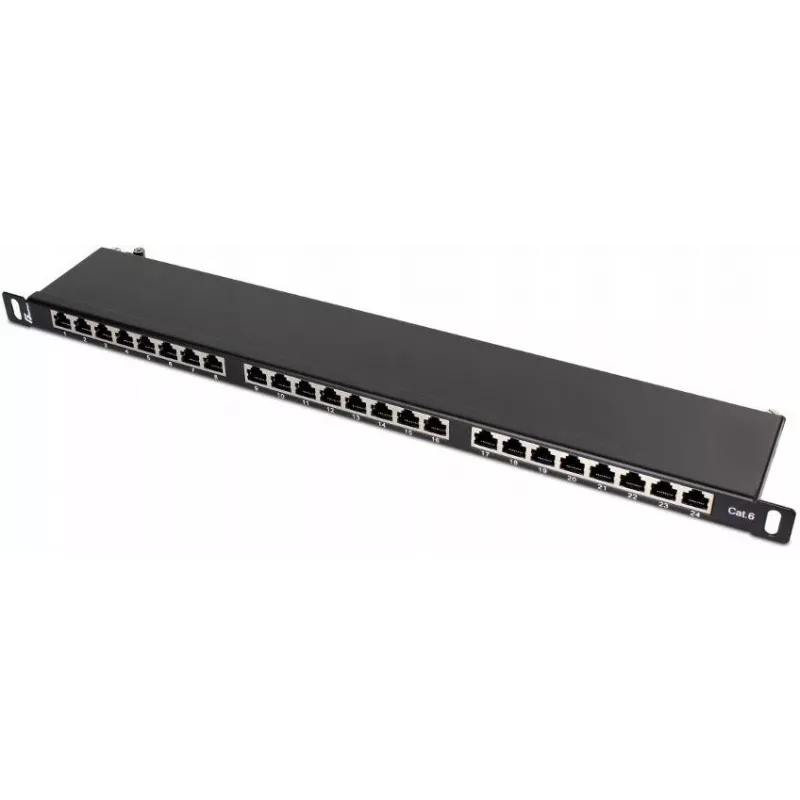

GETFORT PGF-6FTP24-B8 FTP Cat.6 24-poorts patchpanel 0.5U zwart

The GETFORT PGF-6FTP24-B8 is a high-performance FTP Category 6 patch panel designed for structured cabling in 19-inch racks. With 24 ports and a compact 0.5U form factor, it provides reliable Gigabit Ethernet connectivity for data centers, server rooms, and enterprise networks.

Advantages

This patch panel ensures excellent signal integrity with minimal insertion loss and high return loss, meeting ANSI/TIA-568-C.2 standards. The shielded FTP design reduces electromagnetic interference, while the integrated grounding wire simplifies installation. Dual T568A/B wiring support offers flexibility for various cabling schemes.

Suitable for

• Network infrastructure in offices, schools, and hospitals
• Data center patching for 10/100/1000BASE-T networks
• Structured cabling systems requiring high-density port counts

Key specifications

• Product Type: Network Patch Panel
• Rack Unit Size: 0.5U
• Number of Ports: 24
• Network Category: CAT.6 (Category 6)
• Shielding Type: FTP (Foiled Twisted Pair)
• Mounting Standard: 19-inch Rack Mount
• Front Connector Type: RJ45 Female
• Rear Termination Type: IDC (Insulation Displacement Connector)
• Wiring Standard: T568A/B (Dual Standard)
• Housing Material: SPCC Steel
• Color: Black

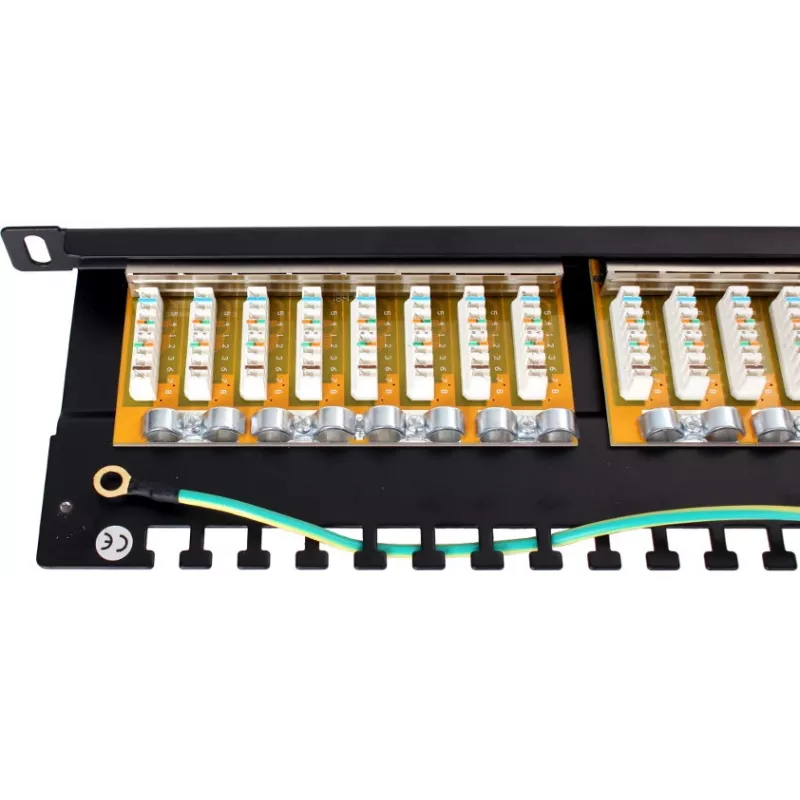

• Grounding: Integrated grounding wire/point
• Compatibility: 10/100/1000BASE-T (Gigabit Ethernet)
• Compliance: ANSI/TIA-568-C.2, ISO/IEC 11801, EN 50173
• Operating Temperature: -10°C to 60°C
• Humidity: 10% to 90% RH (non-condensing)
• Insertion Loss: < 0.3 dB
• Return Loss: > 20 dB
• Near-End Crosstalk (NEXT): > 40 dB
• Far-End Crosstalk (FEXT): > 30 dB

Recommendations

For optimal performance, use with Category 6 FTP cables and ensure proper grounding. Suitable for high-density patching in 19-inch racks with 0.5U spacing.
