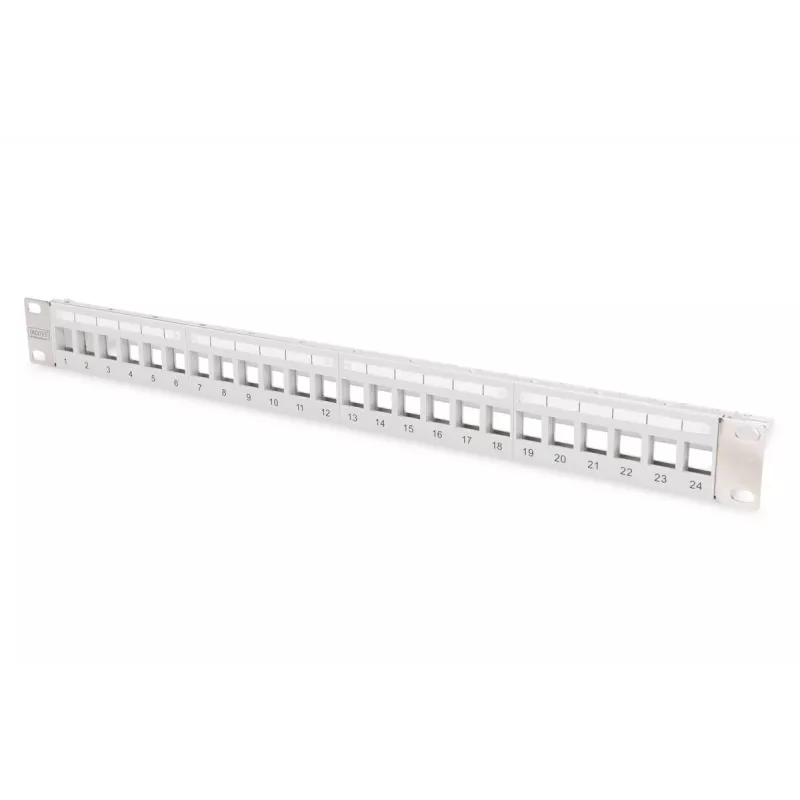

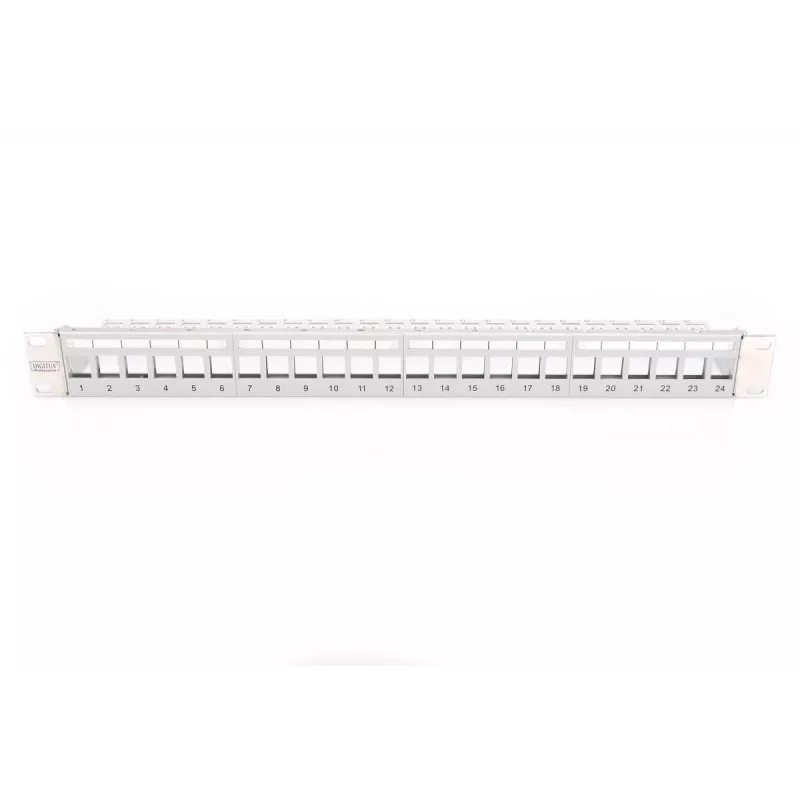

DIGITUS modulair patchpaneel voor keystone jack, 1U rackmontage – onbestukt

DIGITUS modular patch panel is designed for 19" rack installation and for mounting DIGITUS keystone jacks. The front frame is made of ABS High-Impact material (UL-94V-0) while the housing is manufactured from 1.55 mm SPCC cold-rolled carbon steel in compliance with JIS G3141-1996. The panel is available in grey (RAL 7035) and black (RAL 9005). A rear management tray with dedicated cable tie positions snaps into place for simple installation, and an earthing kit is included.

Advantages

The modular design accepts standard DIGITUS keystone jacks, enabling flexible port configuration and easy upgrades. Robust construction uses cold-rolled SPCC steel for structural stability and an ABS front for impact resistance. The snap-in rear management tray simplifies cable organization during installation. Supplied earthing kit supports proper grounding for reliable operation.

Key specifications

• Mounting: 19" rack
• Compatible with: DIGITUS keystone jacks
• Housing material: SPCC cold-rolled carbon steel, 1.55 mm (JIS G3141-1996)
• Front part: ABS High-Impact, UL-94V-0
• Colors: Grey RAL 7035, Black RAL 9005

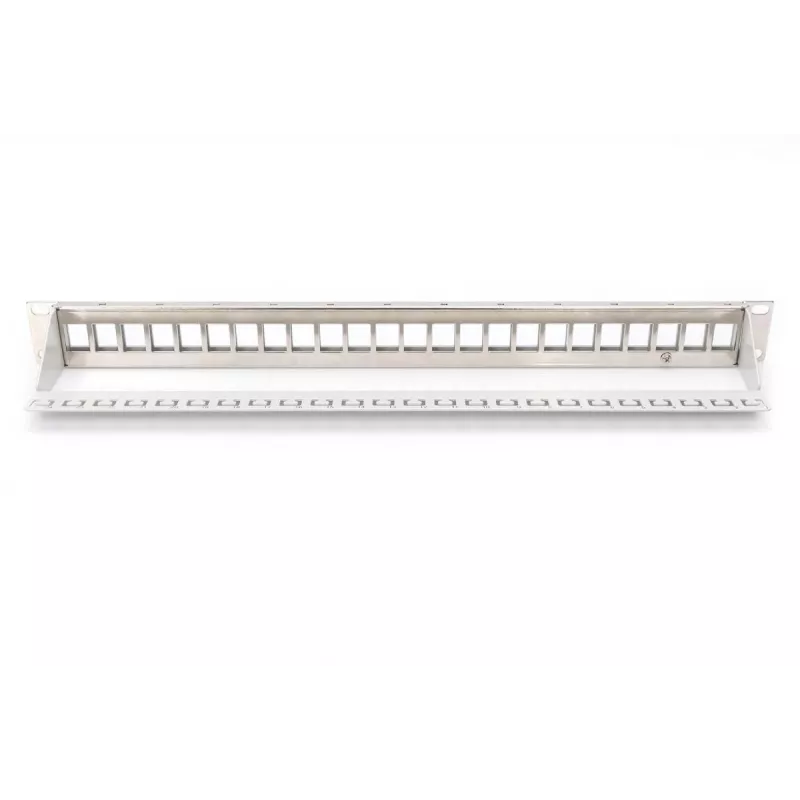

• Rear management tray: snap-in with cable tie positions
• Includes: Earthing kit

How to use

Install the patch panel into a standard 19" rack and mount DIGITUS keystone jacks into the front openings. Snap the rear management tray into place to organize and secure cables using the provided cable tie positions. Connect grounding using the supplied earthing kit following local electrical regulations. Ensure all jacks and cables are properly seated before powering connected equipment.

Recommendations

For optimal cable management, route cables to the rear tray before final jack termination and use appropriate cable ties. Verify rack space and compatibility with other equipment, and follow grounding best practices to maintain system safety and performance.
