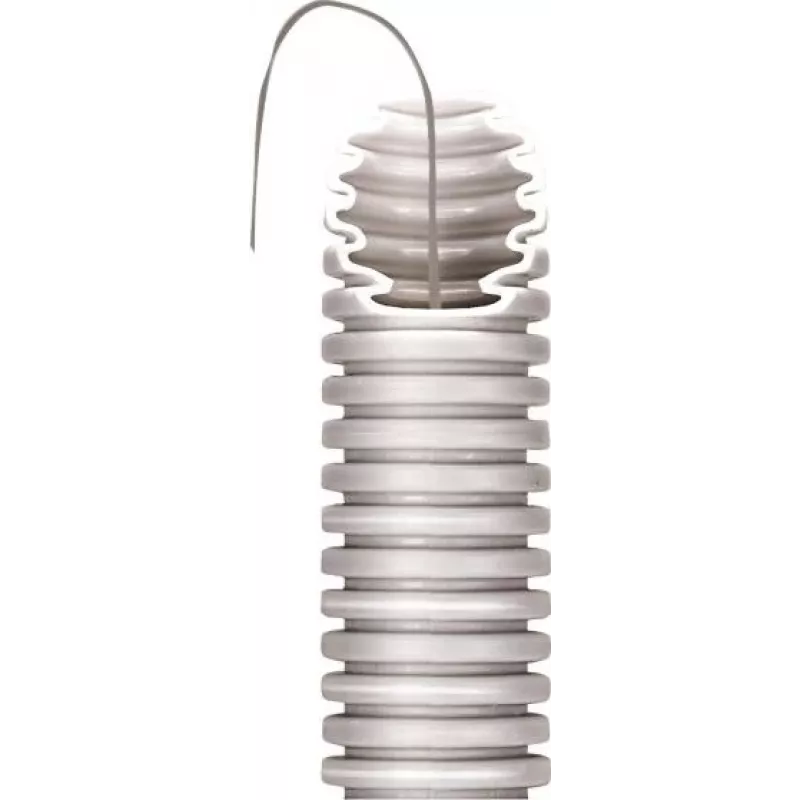

GEWISS DX20125R Flexibele ribbelbuis, 25mm, grijs, 75m, met trekdraad

Electricians and installers working on residential or commercial wiring projects can rely on the GEWISS DX20125R flexible corrugated conduit to protect and route cables in walls, ceilings, and floors. This 75-meter roll of grey conduit has a nominal diameter of 25 mm and includes a pull wire, making cable installation quicker and more efficient.

Key specifications

• Nominal diameter: 25 mm
• Length: 75 m
• Colour: Grey
• Material: Thermoplastic (PVC)
• Pull wire included: Yes
• Flexibility class: Flexible
• Compression resistance: 320 N (medium)
• Impact resistance: 2 Joules at -5°C (medium)
• Operating temperature range: -5°C to +60°C
• Fire performance: Self-extinguishing
• Standard compliance: EN 61386-22
• Application environment: Recessed, false ceilings, walls, floors
• Halogen free: No
• Dielectric strength: 2 kV for 15 minutes
• Insulation resistance: >100 MΩ

Why choose it

The medium compression and impact resistance ratings make this conduit suitable for installations where it may be subject to light mechanical stress. The integrated pull wire saves time during cable pulling, and the self-extinguishing PVC material adds a level of fire safety.

Ideal use cases

• Protecting electrical wiring in residential and commercial buildings
• Routing cables in false ceilings, walls, and floors
• Installations requiring a flexible conduit with a pull wire for easier cable insertion

Good to know

The conduit is supplied in a 75-meter roll and is grey in colour. It is not halogen-free. The operating temperature range is from -5°C to +60°C.
