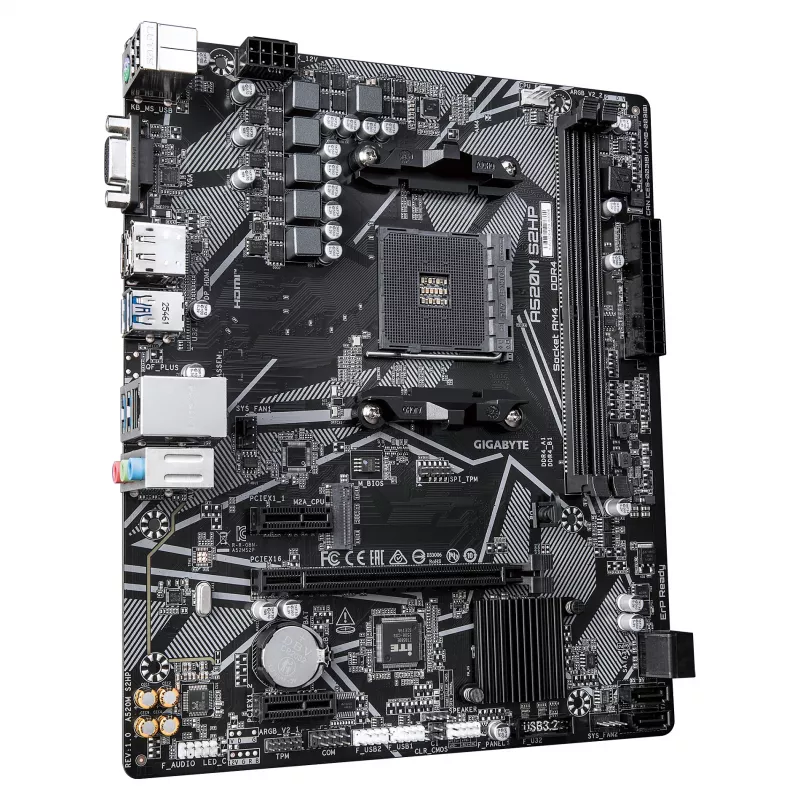

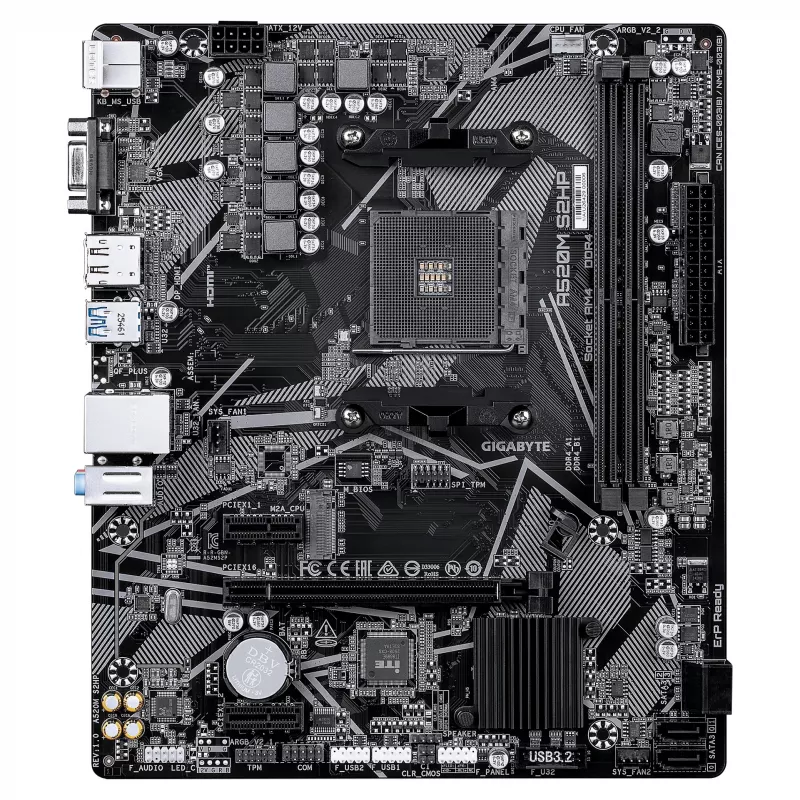

GIGABYTE A520M S2HP AM4 Micro-ATX moederbord, DDR4, HDMI, D-Sub, DisplayPort, M.2, Gigabit LAN

The GIGABYTE A520M S2HP brings essential AM4 performance into a compact Micro-ATX build without unnecessary extras. Built around the AMD A520 chipset, it supports Ryzen 3000, 4000 G-series, and 5000 series processors with a straightforward 4+3 phase power design, making it a dependable foundation for office PCs, home servers, or budget gaming rigs. Unlike many entry boards that cut display connectivity to a single port, this model keeps D-Sub, HDMI 2.1, and DisplayPort 1.2 available for flexible monitor setups.

Highlights

• AMD AM4 socket with A520 chipset – compatible with Ryzen 3000, 4000 G, and 5000 series CPUs
• Micro-ATX form factor (24.4 cm x 24.4 cm) fits standard small cases
• Two DDR4 DIMM slots, up to 64 GB, with overclocking support to DDR4 4733

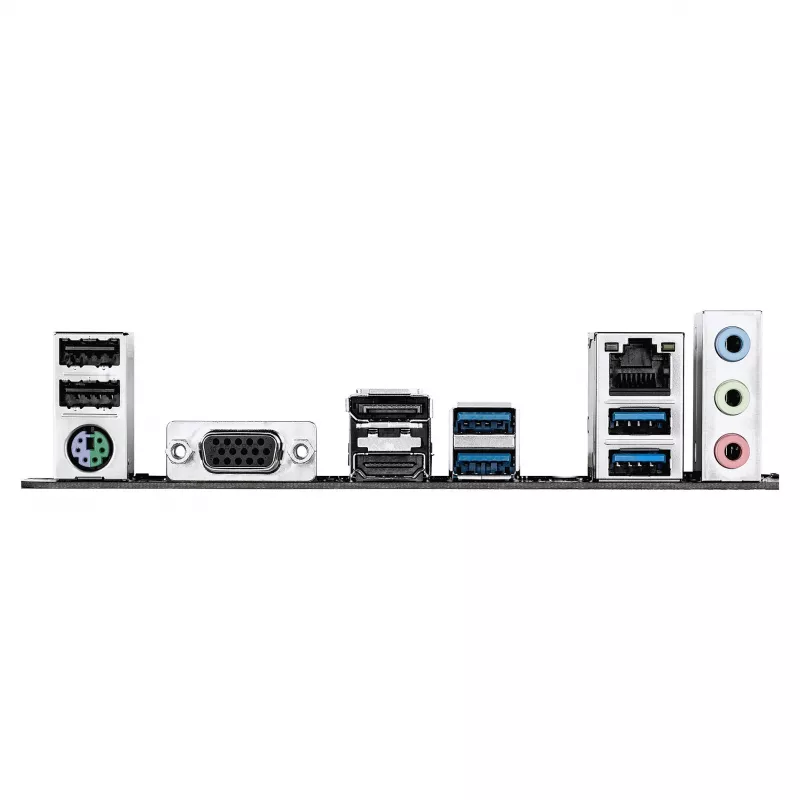

• Triple display outputs: D-Sub, HDMI 2.1, DisplayPort 1.2
• One PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots for expansion
• M.2 slot for NVMe or SATA SSD, plus four SATA 6 Gb/s ports
• Realtek GbE LAN and 7.1-channel HD audio with audio noise guard

In daily use

Installation is quick thanks to the clearly labeled headers and GIGABYTE's UEFI BIOS. The board's Smart Fan 5 technology lets you tune fan curves for quiet operation, while the solid capacitors and anti-sulfur resistors ensure long-term reliability. Four rear USB 3.2 Gen 1 ports handle fast peripherals, and the M.2 slot keeps your boot drive tidy without cables. For legacy hardware, the D-Sub port remains a rare but useful inclusion.

Full specifications

• Socket: AMD AM4
• Chipset: AMD A520
• Form factor: Micro-ATX
• Memory: 2 x DDR4 DIMM, max 64 GB, support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
• Expansion slots: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
• Storage: 1 x M.2 (PCIe 3.0 x4/x2 & SATA), 4 x SATA 6 Gb/s
• Rear USB: 4 x USB 3.2 Gen 1
• Video outputs: 1 x D-Sub, 1 x HDMI 2.1, 1 x DisplayPort 1.2
• Audio: Realtek ALC887 codec, 7.1-channel HD audio
• LAN: Realtek GbE LAN (1 Gbit)
• Power connectors: 1 x 24-pin ATX, 1 x 8-pin ATX 12V
• BIOS: AMI UEFI BIOS

Final note

The A520M S2HP is a no-nonsense AM4 board that covers all the essentials with modern connectivity and legacy compatibility, ideal for builders who value stability and value.
