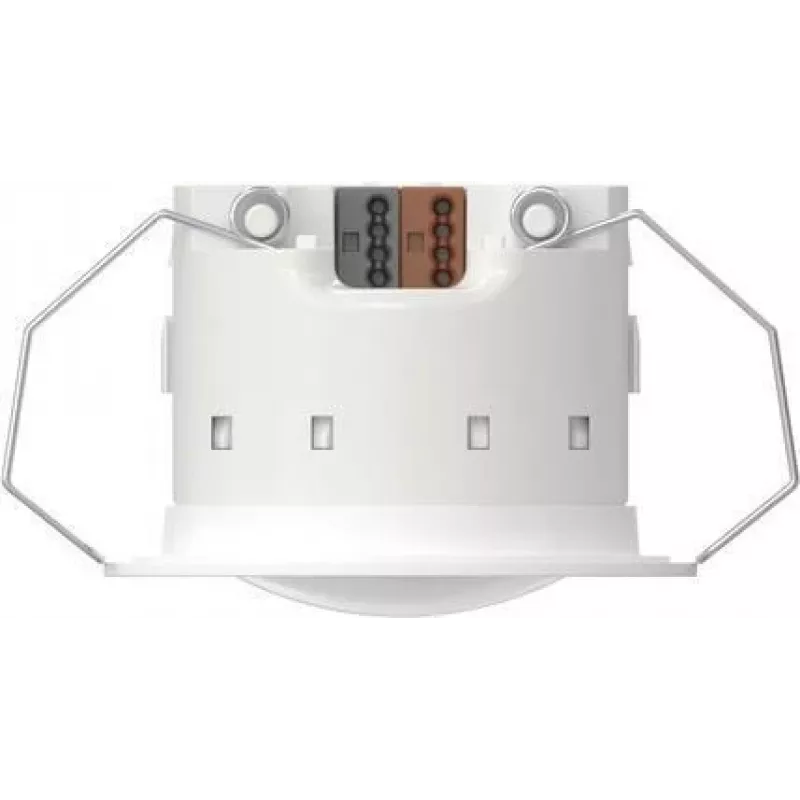

GIRA 2222530 aanwezigheidsmelder Mini Comfort KNX Secure, zuiver wit glanzend

Lighting and climate control often waste energy because rooms remain lit and conditioned even when unoccupied. The GIRA 2222530 Presence Detector Mini Komfort solves this by automatically detecting presence and adjusting lighting and HVAC based on actual room usage. This compact KNX Secure device combines precise motion detection with constant light control, ensuring comfort and efficiency in offices, meeting rooms, and homes.

Who is it for

This presence detector is ideal for building automation professionals, system integrators, and homeowners who demand reliable, secure, and energy-efficient room monitoring. It suits modern KNX installations where ceiling-mounted, discreet sensors are required. Whether for new builds or retrofits, it offers advanced functionality in a minimal footprint.

Main features

• 360° detection with three independent zones and 128 cells for precise coverage.
• Integrated brightness sensor (10–2000 lux) for constant light control.
• KNX Secure protocol ensures encrypted communication and protection against unauthorized access.
• Flush-mounted ceiling installation with a visible diameter of only 43 mm.
• Supports presence detection, motion detection, HVAC control, and alarm functions.
• Pure white glossy finish blends seamlessly with modern interiors.

Specifications

• Brand: GIRA
• Model: 2222530
• MPN: 2222530
• EAN: 4010337129660
• Product type: Presence detector
• Bus system: KNX
• Security: KNX Secure
• Mounting: Ceiling, recessed
• Detection angle: 360°
• Recommended installation height: 2.5 m
• Detection range (comfort zone): approx. 4 m diameter
• Detection range (presence zone): approx. 9 m diameter
• Brightness sensor: Yes, 10–2000 lux
• Colour: Pure white glossy
• Material: Thermoplastic (PC)
• IP rating: IP20
• Operating temperature: -5 °C to +45 °C
• Power supply: KNX bus
• Visible diameter: 43 mm
• Installation depth: 30 mm

Tips

For optimal performance, install the detector at a height of 2.5 m in a central ceiling position. Ensure the detection zones are configured via ETS to match room usage. Use the brightness sensor to maintain constant light levels and reduce energy consumption. Pair with other KNX Secure devices for a fully protected smart building network.
