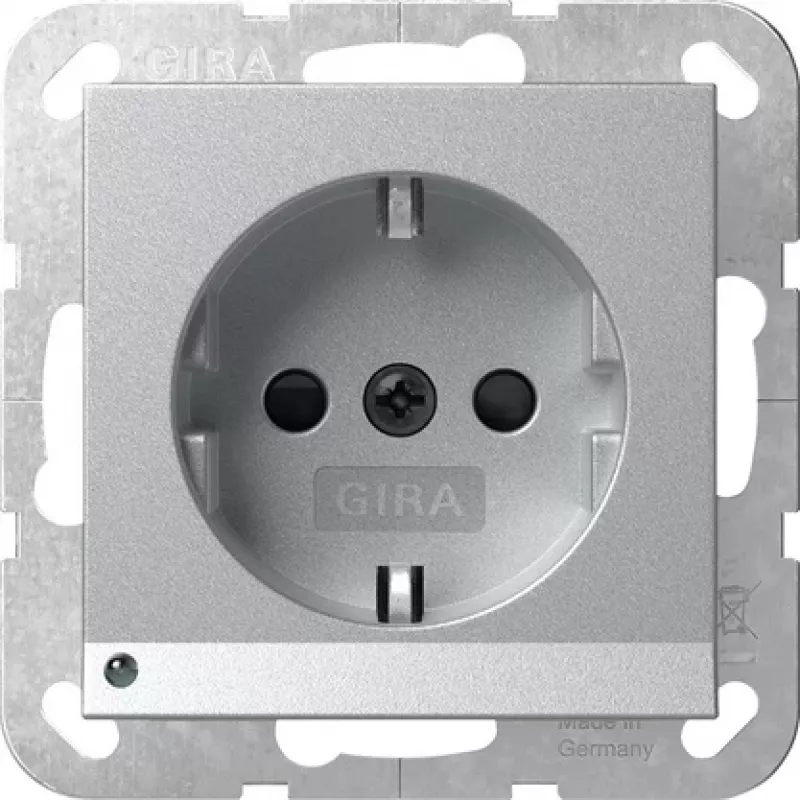

GIRA 417026 SCHUKO stopcontact met LED-oriëntatielicht, System 55

The GIRA 417026 integrates a subtle LED orientation light directly into a SCHUKO socket outlet, eliminating the need for separate night lights. The light switches automatically based on ambient brightness, providing discreet guidance in dark hallways or bedrooms without manual intervention.

Highlights

• Integrated white LED orientation light with automatic light sensor
• SCHUKO socket outlet with child protection (integrated shutter)
• Compatible with Gira System 55, E2, Event, Esprit, and Standard 55 design lines
• Flush-mounted installation with screw terminals for conductors up to 2.5 mm²
• Low power consumption: LED uses less than 0.5 W

In daily use

The orientation light activates only in low ambient light, ensuring it remains unobtrusive during the day and provides a soft glow at night. The socket itself supports standard 16 A loads at 250 V AC, making it suitable for household appliances. Its thermoplastic construction and IP20 rating suit indoor dry locations.

Full specifications

• Socket type: SCHUKO (Type F)
• Nominal voltage: 250 V AC
• Nominal current: 16 A
• Frequency: 50/60 Hz
• LED light colour: White
• LED power consumption: < 0.5 W
• Light sensor: Integrated, automatic switching
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Terminal capacity: Up to 2.5 mm² rigid conductors
• Material: Thermoplastic
• Protection class: IP20
• Child protection: Yes (integrated shutter)
• Number of sockets: 1
• Number of gangs: 1-gang
• Operating temperature: -5 °C to +40 °C
• Installation depth: Approx. 32 mm

Final note

A practical solution for orientation lighting that blends seamlessly into Gira switch ranges, offering both safety and convenience in one unit.
