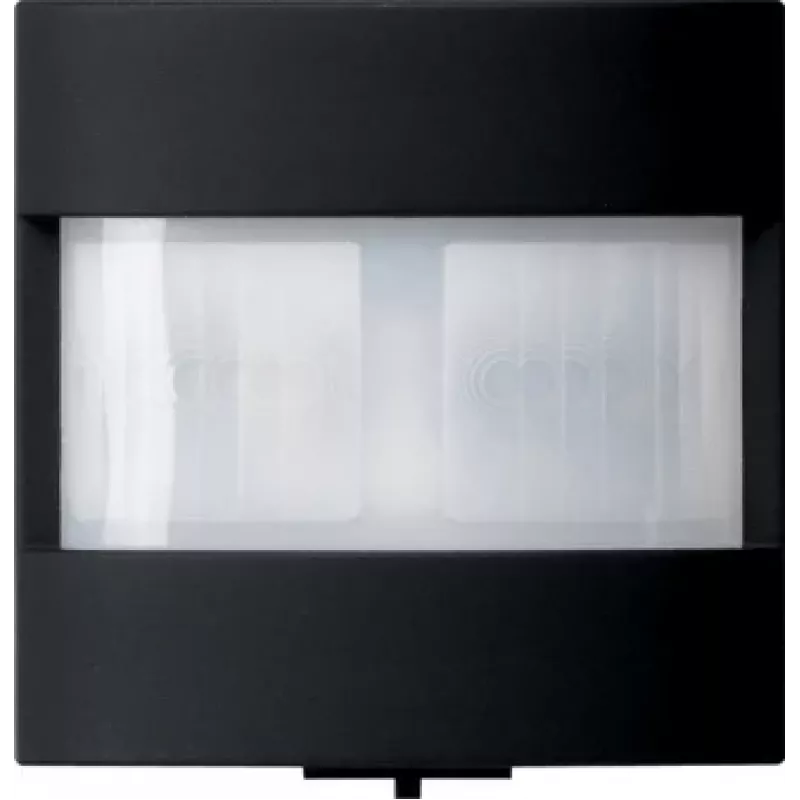

Gira KNX bewegingsmelder standaard 1,10 m zwart 2050005

Managing lighting and HVAC in a room based on presence and brightness often requires multiple sensors and complex wiring. The Gira KNX Motion Detector Standard 1.10 m Black consolidates presence detection, brightness measurement, and KNX control into a single flush-mounted device, simplifying automation while maintaining a discreet appearance.

Who is it for

This motion detector is intended for electricians, system integrators, and building owners using KNX bus systems who need reliable presence detection for lighting, shading, or climate control in residential or commercial spaces. It is particularly suited for installation at a height of 1.10 m in hallways, offices, or living areas.

Main features

• Passive infrared (PIR) sensor with 180° detection angle
• Frontal detection range of approximately 10 m and lateral range of 6 m per side
• Integrated brightness sensor with measuring range from 10 to 2000 lux
• Five detection levels with 13 segments each for precise coverage
• Adjustable sensitivity and time delay
• Three switching output channels plus one brightness and one presence channel
• Supports KNX functions: switching, dimming, blind control, scene recall, value transmitter, HVAC control, and presence detection
• Flush-mounted installation (Unterputz) with black thermoplastic housing

Specifications

• Product type: Motion Detector
• Bus system: KNX
• Mounting type: Flush-mounted
• Recommended mounting height: 1.10 m
• Colour: Black
• Detection angle: 180°
• Detection range frontal: approx. 10 m
• Detection range lateral: approx. 6 m (each side)
• Brightness measuring range: 10 to 2000 lux
• Number of PIR sensors: 1
• Number of detection levels: 5
• Number of segments per level: 13
• Adjustable sensitivity: Yes
• Adjustable time delay: Yes
• Output channels: 3 switching, 1 brightness, 1 presence
• Operating temperature: -5 °C to +45 °C
• Housing material: Thermoplastic (PC) UV-stabilized
• Protection class: IP20

Tips

For optimal detection, mount the device at the recommended height of 1.10 m and ensure the detection field is unobstructed. Use the integrated brightness sensor to enable daylight-dependent switching, reducing energy consumption. The device is designed for indoor use only.
