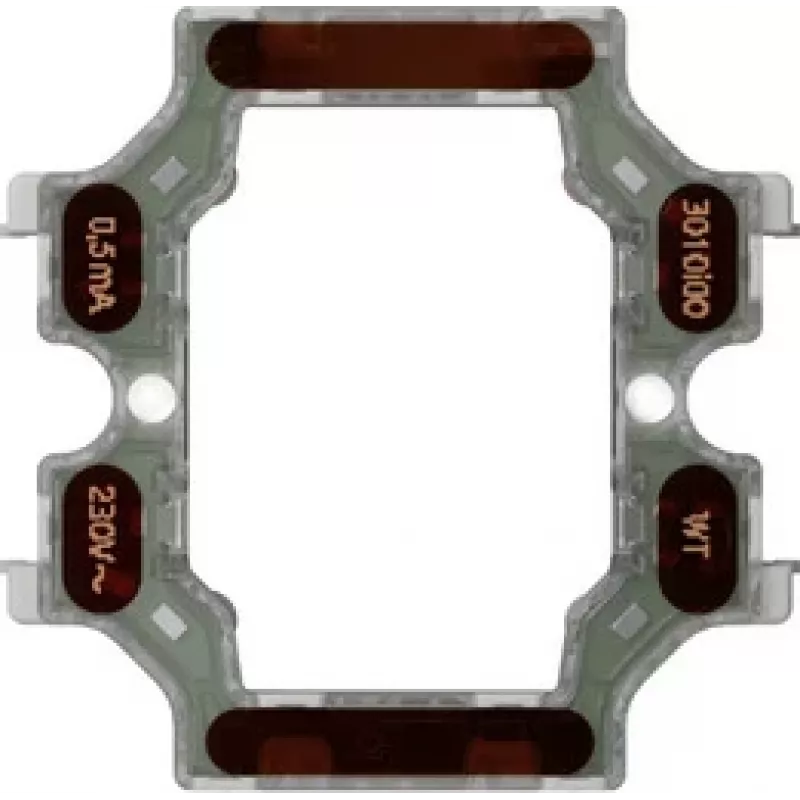

GIRA LED-verlichtingselement T3 0,5 mA wit accessoire 3793010

Many modern switch ranges offer the option of an integrated orientation light, but finding the correct illumination element for a specific series can be a challenge. The GIRA LED Illumination Element T3 solves this by providing a reliable, low-current LED indicator for compatible Gira switch inserts.

Who is it for

Electricians and installers who need to add orientation lighting or status indication to Gira rocker switches and push-buttons. It is suitable for projects using Gira System 55, E2, Event, Esprit, ClassiX, and F100 series.

Main features

• White LED illumination for clear visibility in dark environments.
• Low current consumption of 0.5 mA, ensuring energy efficiency.
• Designed for integration into switch inserts with illumination option.
• Compatible with a wide range of Gira switch ranges.

Specifications

• Illumination type: LED
• Illumination colour: White
• Rated current: 0.5 mA
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Connection type: N-terminal (neutral conductor) required
• Mounting type: Integrated into switch insert
• Function: Orientation light, status indicator
• Power consumption: < 0.1 W
• Lifespan: approx. 50,000 hours
• Protection class: IP20
• Operating temperature: 0 to +45 °C
• Material: Plastic
• Product series: T3

Tips

Verify that the switch insert you are using supports an illumination element and has a neutral conductor available. This element is intended for use by qualified electricians during installation.
