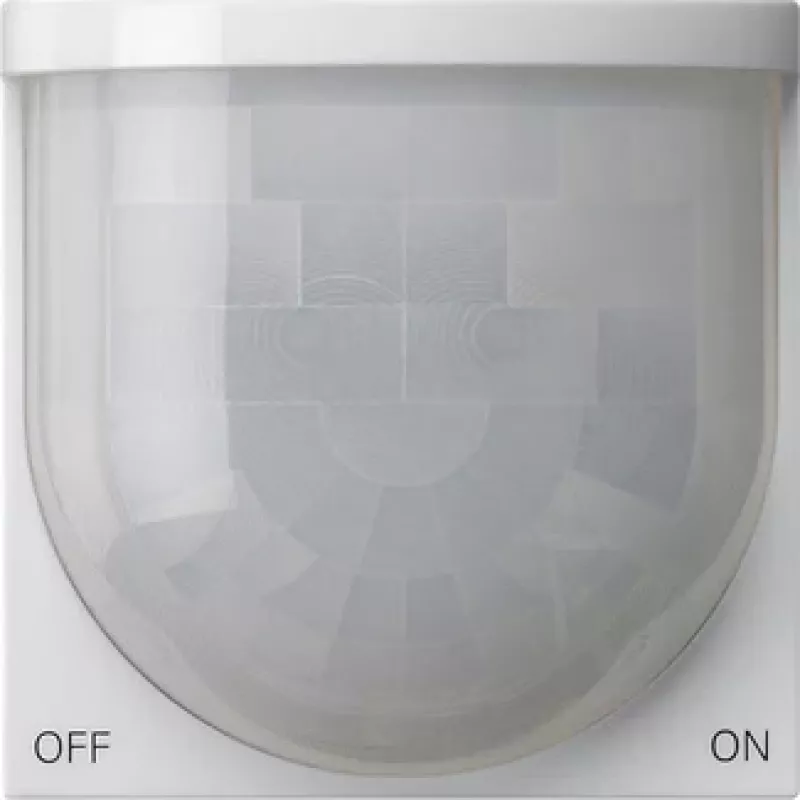

Gira S3000 Comfort Bluetooth bewegingsmelder-opzet, 2,20 m, zuiverwit mat 537627

Automate lighting in indoor spaces with the Gira S3000 motion detector attachment. It detects movement and ambient brightness, switching connected lights on and off automatically. This reduces energy waste and increases convenience in hallways, offices, and bathrooms.

Who is it for

This attachment is for electricians and installers who need a reliable motion sensor for Gira System 55 flush-mounted inserts. It suits residential and commercial projects where automatic lighting control is required.

Main features

• Passive infrared motion detection with 180° coverage and up to 12 m range at 2.20 m mounting height
• Bluetooth connectivity for configuration via the Gira app
• Adjustable twilight threshold from 1 to 1000 lux
• Time delay from 10 seconds to 60 minutes
• Compatible with Gira System 55, E2, Event, Esprit, ClassiX, and F100 switch ranges
• Pure white matt finish, UV-stabilised thermoplastic housing

Specifications

• Product type: Motion detector attachment
• Series: Gira S3000
• Mounting height: 2.20 m
• Detection angle: 180°
• Detection range: approx. 12 m diameter at 2.20 m height
• Connectivity: Bluetooth
• Operating voltage: 230 V AC, 50/60 Hz (via flush-mounted insert)
• Switching capacity incandescent: max. 2200 W
• Switching capacity HV halogen: max. 2200 W
• Switching capacity fluorescent uncompensated: max. 1000 VA
• Switching capacity LED: max. 600 W
• Twilight sensor range: approx. 1 to 1000 lux
• Time delay: approx. 10 seconds to 60 minutes
• Housing material: thermoplastic, UV-stabilised
• Colour: pure white matt
• Functions: presence detection, short-term operation, teach-in function, test mode

Tips

For optimal detection, mount the sensor at 2.20 m height and avoid direct sunlight or heat sources in the detection area. Use the Gira app to fine-tune sensitivity and time settings after installation.
