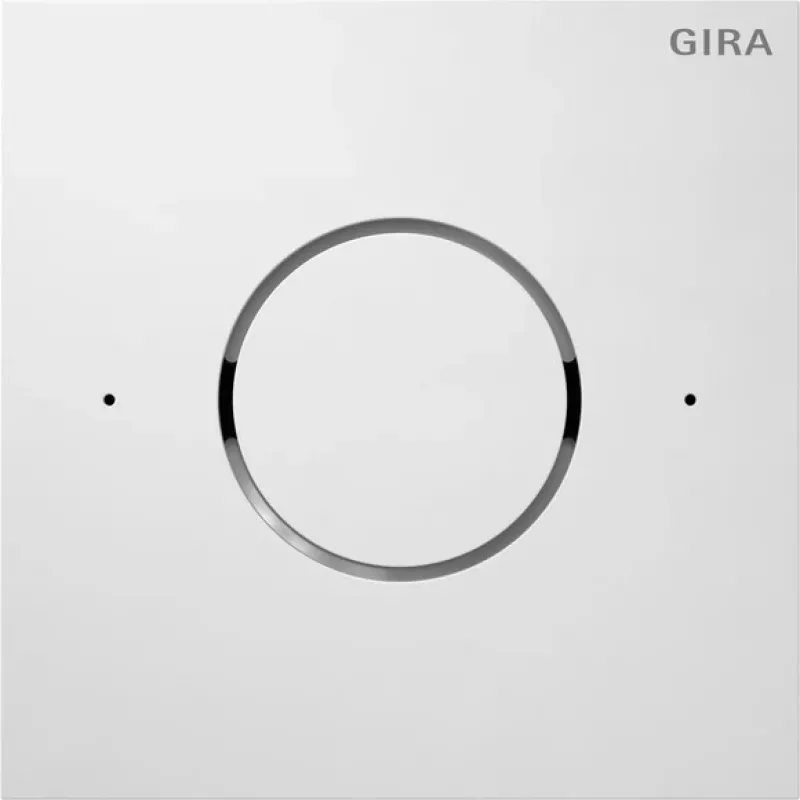

Gira System 106 IP-spraakmodule verkeerswit 5592902

In door communication systems, clear two-way audio is essential for identifying visitors and managing access. The Gira System 106 IP Speech Module provides reliable voice communication with integrated microphone and loudspeaker, ensuring conversations at the door are intelligible even in noisy environments.

Who is it for

This module is for installers and system integrators setting up Gira System 106 door intercoms in residential or commercial buildings. It suits projects requiring IP-based communication with noise suppression and echo cancellation for crisp audio.

Main features

• Two-way audio communication over IP
• Integrated microphone and loudspeaker
• Noise suppression and echo cancellation for clear speech
• Modular design for flush or surface mounting with System 106 frames
• Traffic white (RAL 9016) finish, UV-resistant plastic

Specifications

• Product type: Speech Module
• System compatibility: Gira System 106
• Communication technology: IP
• Colour: Traffic white (RAL 9016)
• Material: High-quality plastic, UV-resistant
• Power supply: Via Gira System 106 Control Unit (typically PoE)
• Operating temperature: -25 °C to +70 °C
• Humidity: 10% to 90% relative humidity, non-condensing
• Front dimensions (W x H): 106.5 x 106.5 mm
• Depth: 28 mm
• Protection class (with appropriate housing): IP44

Tips

Pair this module with a Gira System 106 control unit and appropriate housing to achieve the specified IP44 protection. For surface mounting, select a compatible surface-mounted housing from the System 106 range.
