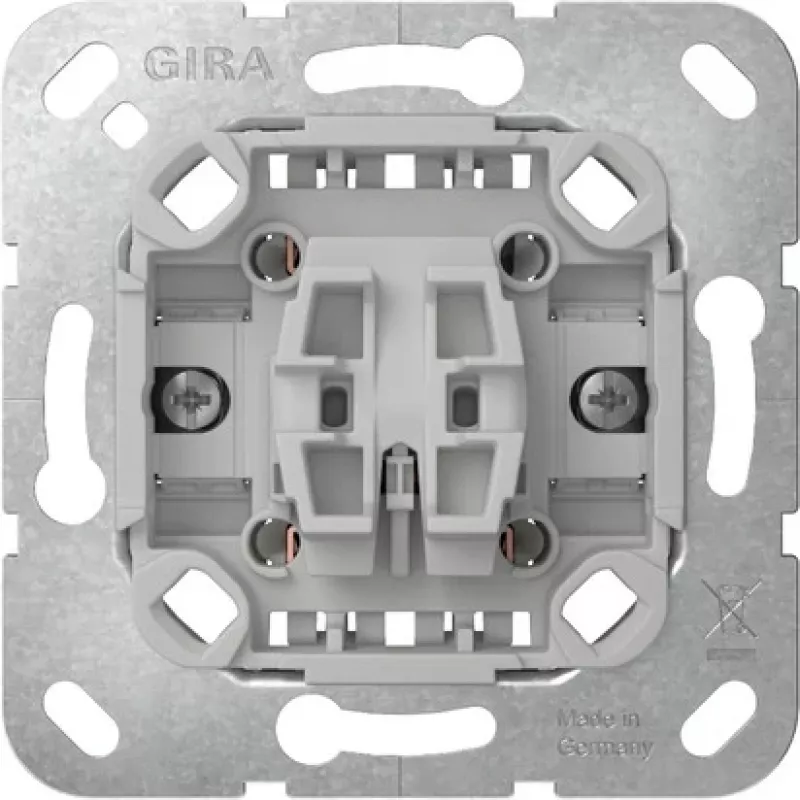

Gira wipschakelaar-inzet 317600 – wisselschakelaar, inbouw, 10A

For flush-mounted installations that require a reliable two-way switching point, the Gira Rocker Switch Insert 317600 provides a robust base compatible with a wide range of Gira design frames. This insert is the core switching mechanism behind the decorative rocker, enabling control of lighting circuits from a single location.

Who is it for

Electricians and installers working with Gira System 55, E2, Event, Esprit, Standard 55, Flächenschalter, or S-Color design lines who need a dependable flush-mounted switch insert for residential or commercial projects.

Main features

• Two-way switch function (SPDT) for versatile lighting control
• Rated for 250 V AC and 10 A, suitable for standard lighting loads
• Flush-mounted design with screw terminals for secure wiring
• Thermoplastic construction, halogen-free
• Compatible with Gira System 55 and related ranges (requires separate rocker and cover)

Specifications

• Switch type: Rocker switch insert
• Switch function: Two-way (SPDT)
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Rated voltage: 250 V AC
• Rated current: 10 A
• Number of poles: 1
• Number of rockers: 1
• Terminal capacity (solid): max. 2.5 mm²
• Terminal capacity (flexible): max. 1.5 mm²
• Material: Thermoplastic
• Operating temperature: -20 to +40 °C
• Installation depth: approx. 32 mm
• Halogen-free: Yes

Tips

This insert is designed to be paired with a compatible Gira rocker and frame from the System 55 family or its derivative ranges. Ensure the circuit is de-energized before installation and use appropriate wire gauges within the specified terminal capacities.
