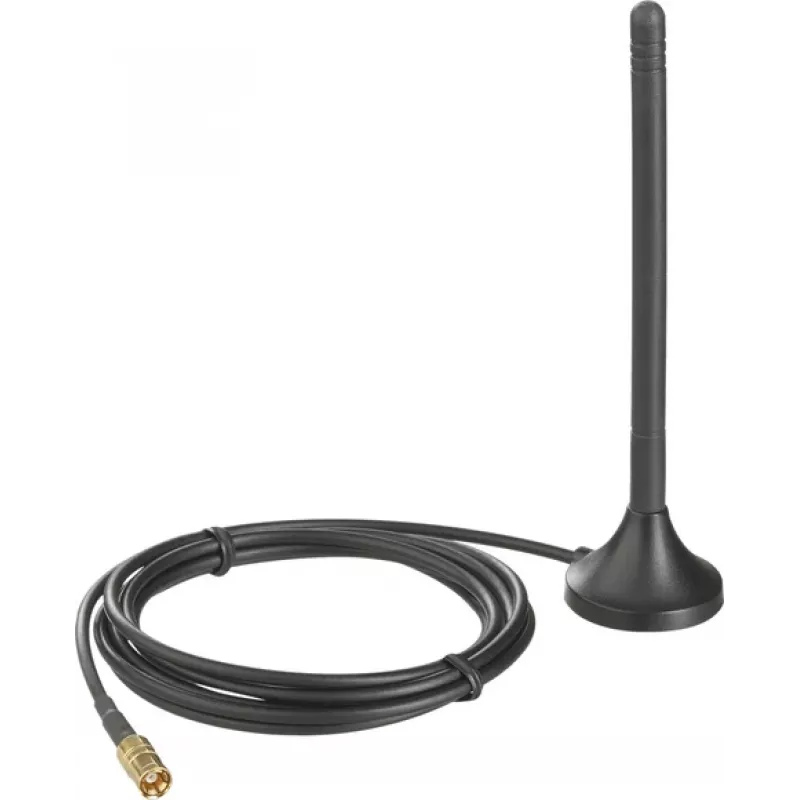

GIRA WLAN extra antenne 530800

The GIRA WLAN Additional Antenna 530800 extends wireless coverage for Gira System 3000 WLAN control units, offering a practical solution for installations where the built-in antenna signal is insufficient. Its omnidirectional dipole design with 2 dBi gain improves reception in challenging indoor environments. The antenna connects via RP-SMA male connector and includes a 2.5-meter cable, allowing flexible placement away from the control unit. The magnetic base and wall-mounting option provide versatile installation choices. Finished in pure white (RAL 9010) to blend with typical interior decors, it is intended for indoor use only.

Highlights

• Omnidirectional dipole antenna for 2.4 GHz WLAN
• 2 dBi gain improves signal reception
• RP-SMA male connector with 2.5 m cable
• Magnetic base and wall-mountable design
• Pure white (RAL 9010) finish

In daily use

The antenna is compatible with Gira System 3000 WLAN control units and other compatible Gira devices. Its 50 Ohm impedance and linear vertical polarization are matched to standard WLAN equipment. The operating temperature range of -20 to +60 °C ensures reliable performance in typical indoor conditions. The plastic housing is durable and unobtrusive.

Full specifications

• Antenna Type: Omnidirectional Dipole
• Frequency Band: 2.4 GHz
• Supported WLAN Standards: IEEE 802.11b/g/n
• Antenna Gain: 2 dBi
• Connector Type: RP-SMA Male
• Cable Length: 2.5 meters
• Impedance: 50 Ohm
• Polarization: Linear Vertical
• Mounting Type: Magnetic Base, Wall Mountable
• Color: Pure White (RAL 9010)
• Material: Plastic
• Operating Temperature: -20 to +60 °C
• Protection Class: IP20
• Application: Indoor Use
• Compatibility: Gira System 3000 WLAN Control Unit and compatible Gira devices

Final note

For installations where the control unit is mounted in a metal enclosure or shielded location, this additional antenna provides a straightforward way to improve wireless connectivity.
