Glasvezel patchpaneel DeLOCK 10 inch 12 poorten LC quad blauw 1U grijs

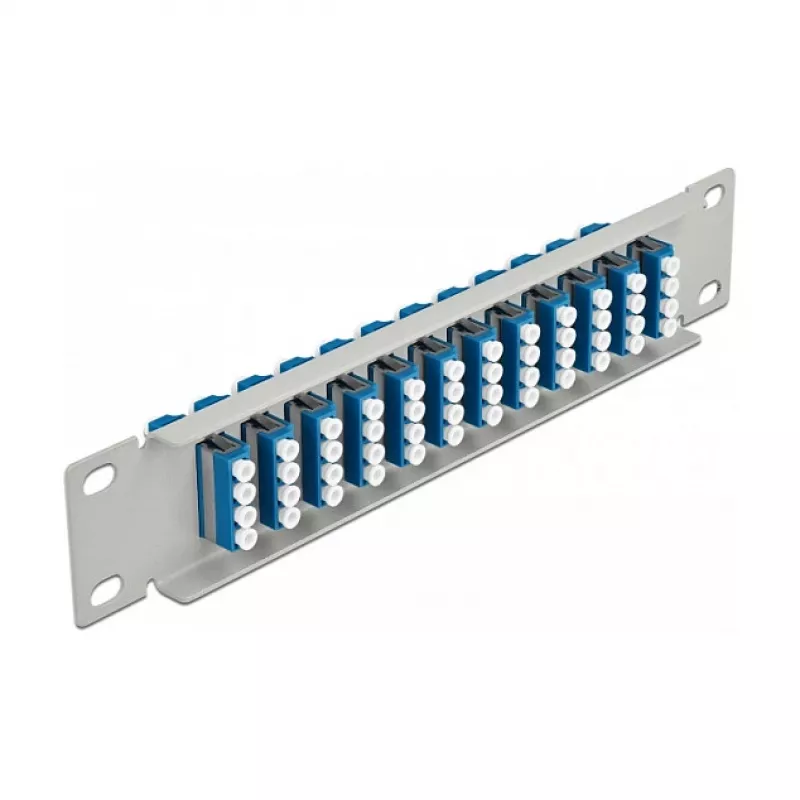

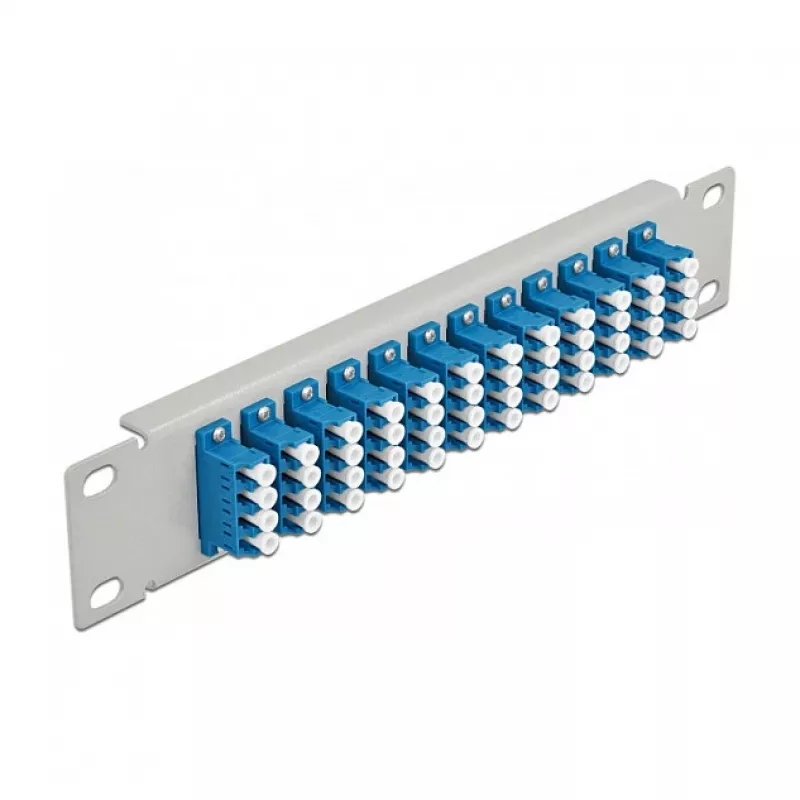

The DeLOCK 10" 12 Port LC Quad fiber optic patch panel is designed for installation in a 10" network cabinet. It provides twelve LC Quad fiber couplers in a compact 1U metal housing (grey), facilitating organized and space-saving rack mounting for fiber optic connections in data centers and network installations.

Advantages

The panel offers a high-density LC Quad configuration that allows multiple duplex connections in a single port area, reducing space requirements. Its 1U form factor and standard 10" mounting make it compatible with common network racks. The LC couplers provide secure, repeatable mating for fiber optic male connectors and simplify cable management.

Suitable for

• Data center fiber patching and cable management
• Telecommunications cabinets and rack installations
• Network rooms requiring high-density LC connections
• FTTx distribution panels and backbone fiber links

Key specifications

• Brand: DELOCK
• Model / MPN: 66796
• EAN: 4043619667963
• Ports: 12 × LC Quad couplers
• Form factor: 1U, 10" rack mount
• Color: Grey with blue LC adapters
• Material: Metal housing (standard rack panel)
• Dimensions (approx.): 44 mm × 10 mm × 254 mm

How to use

Mount the patch panel into a compatible 10" network cabinet using the appropriate rack screws. Insert fiber optic male connectors into the LC Quad couplers until they click into place. Organize incoming and outgoing fiber cables to the rear or sides of the panel as required, maintaining proper bend radii and securing cables with ties or management accessories. For removal, depress the connector latch and gently withdraw the connector from the coupler.

Recommendations

Install and handle fiber cables using appropriate ESD and safety precautions. Ensure connectors are clean before mating to avoid signal loss; use a fiber inspection scope or cleaning tools as needed. Maintain minimum bend radii and avoid excessive strain on cables to preserve performance.
