Glasvezel SC duplex-koppeling ACT EA3004 multimode OM4

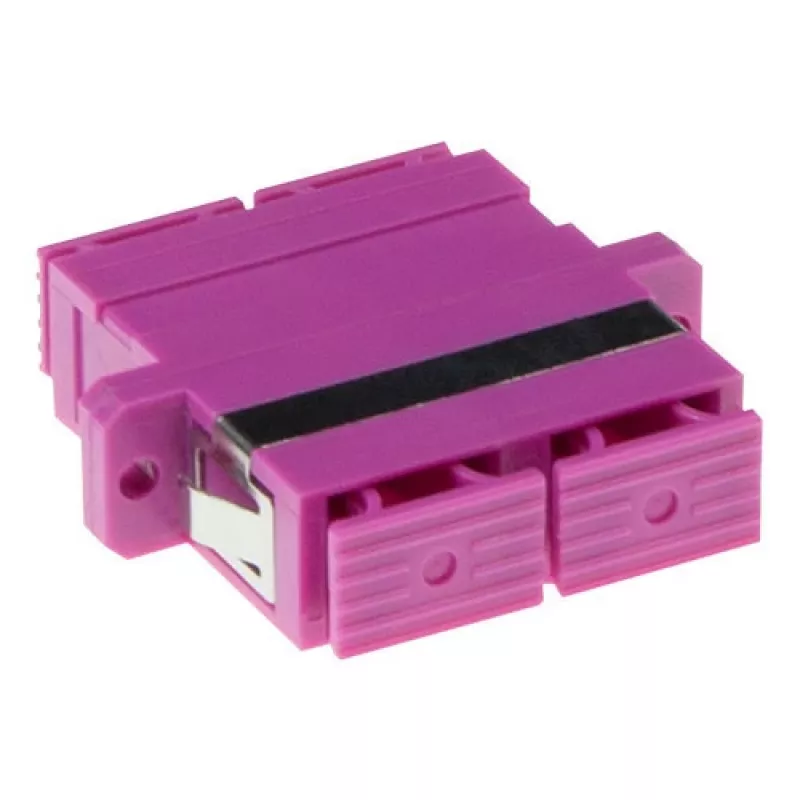

The ACT Fiber optic SC duplex adapter EA3004 is designed for multimode OM4 (50/125 µm) networks. It provides a ceramic ferrule interface in an SC duplex format and is colored violet for quick identification in patch panels and fiber enclosures.

Advantages

This SC duplex adapter offers low insertion loss (≤ 0.2 dB @ 850 nm) and a ceramic alignment sleeve for repeatable, stable connections. Its OM4 compatibility ensures optimized performance for high-speed multimode links, while the duplex SC format supports straightforward two-fiber connections.

Suitable for

• Multimode OM4 fiber links (50/125 µm)
• SC duplex patch panels and faceplates
• Data centers and enterprise network closets
• Short-reach high-speed applications at 850 nm

Key specifications

• Connector type: SC duplex
• Ferrule material: Ceramic
• Fiber type: Multimode OM4 (50/125 µm)
• Maximum insertion loss: ≤ 0.2 dB @ 850 nm
• Color: Violet
• Manufacturer: ACT, MPN EA3004, EAN 8716065288513

How to use

Install the SC duplex adapter into the panel cutout or enclosure slot until it snaps or secures in place according to the enclosure design. Insert SC multimode patch cords into each duplex port, ensuring connectors are clean and properly aligned. Verify connections using appropriate test equipment and follow standard fiber handling procedures to avoid contamination or damage.

Recommendations

Keep connector endfaces clean and use dust caps when ports are unused. Use OM4-rated patch cords for best performance and verify insertion loss during commissioning to ensure it meets system requirements.
