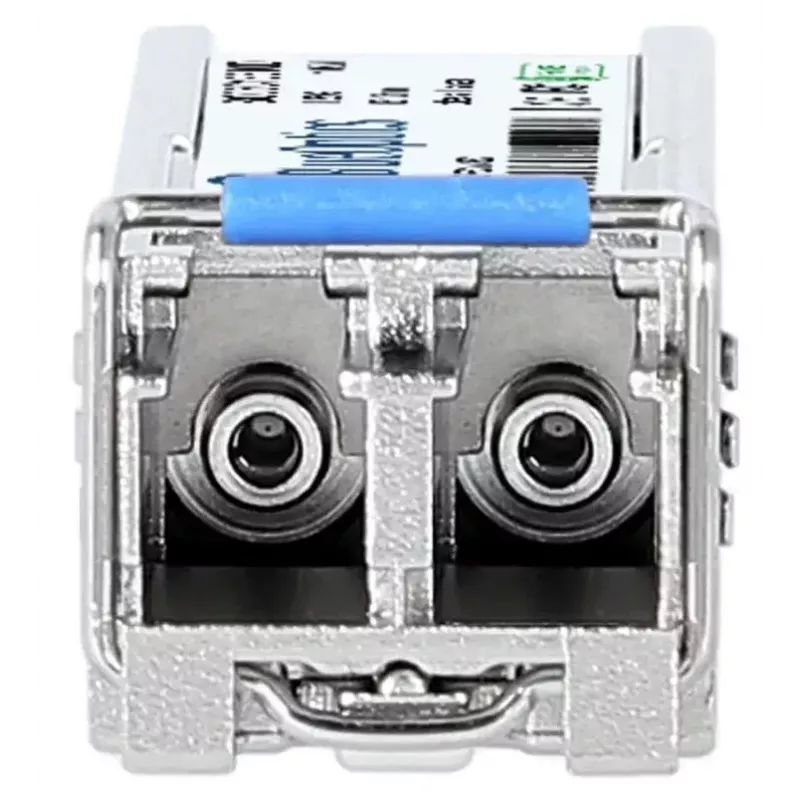

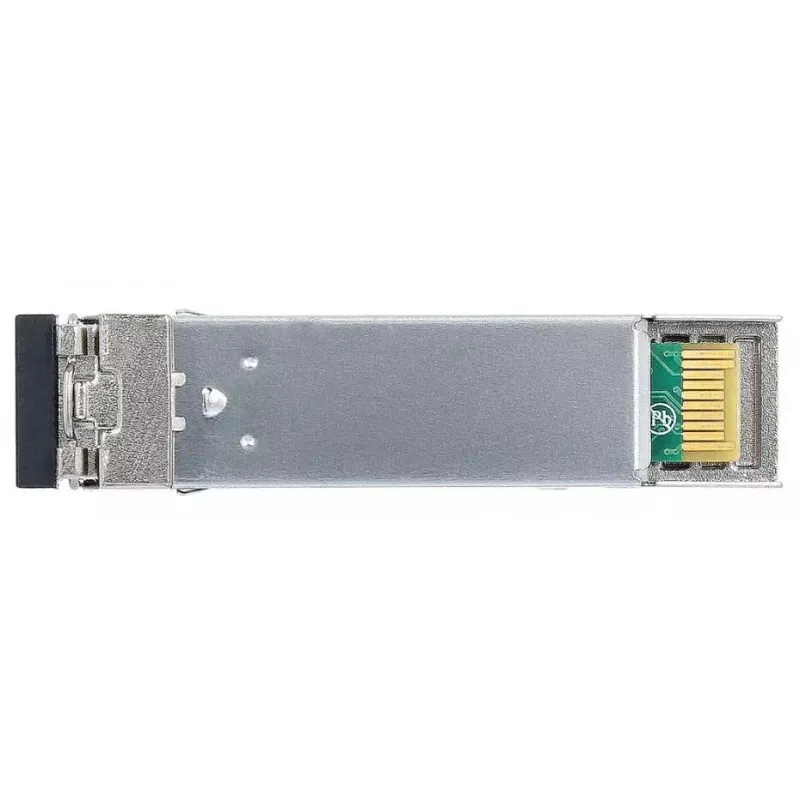

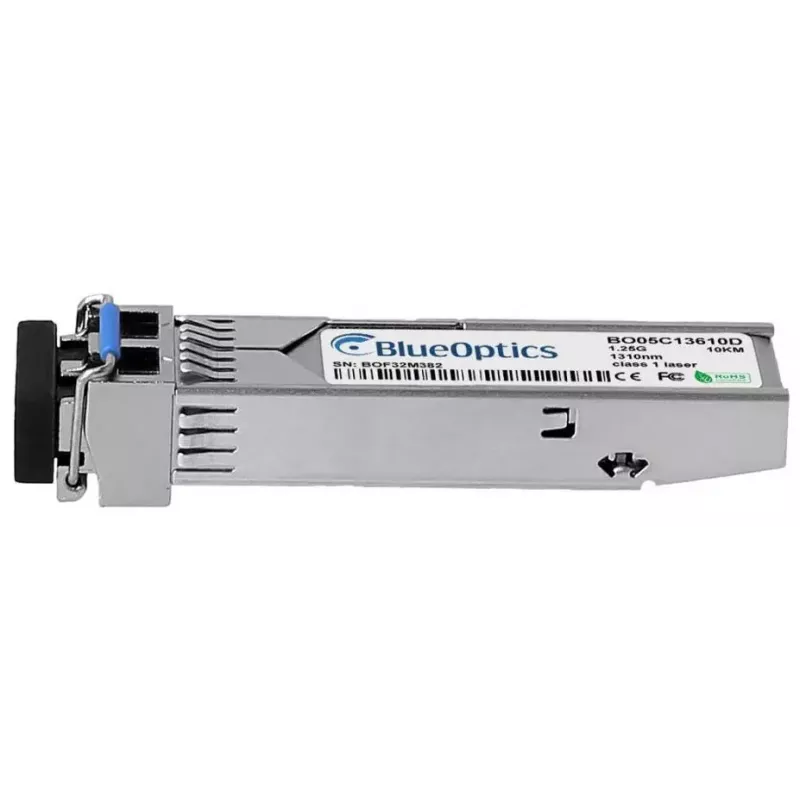

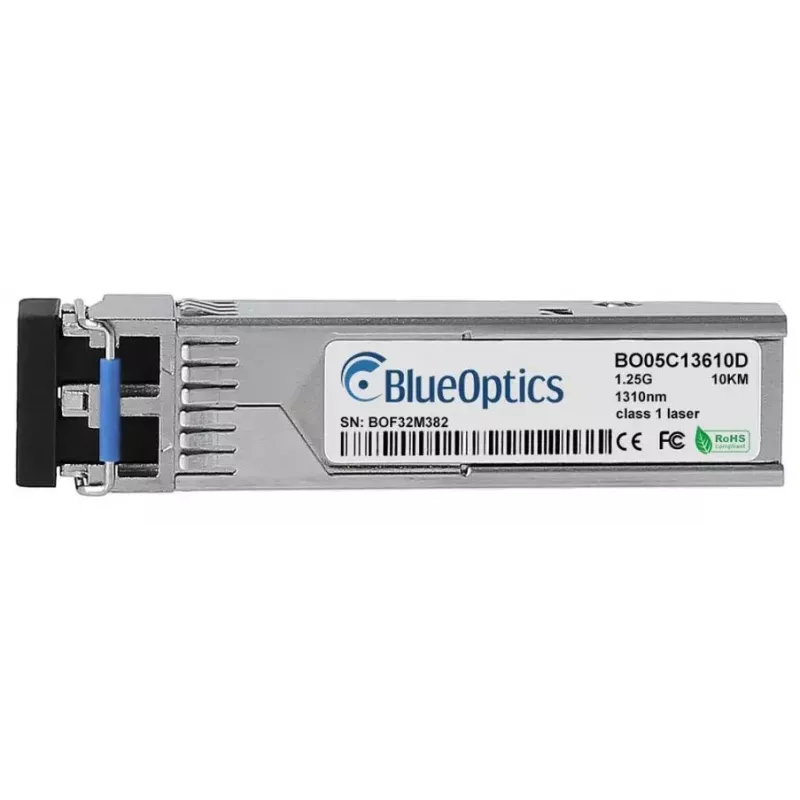

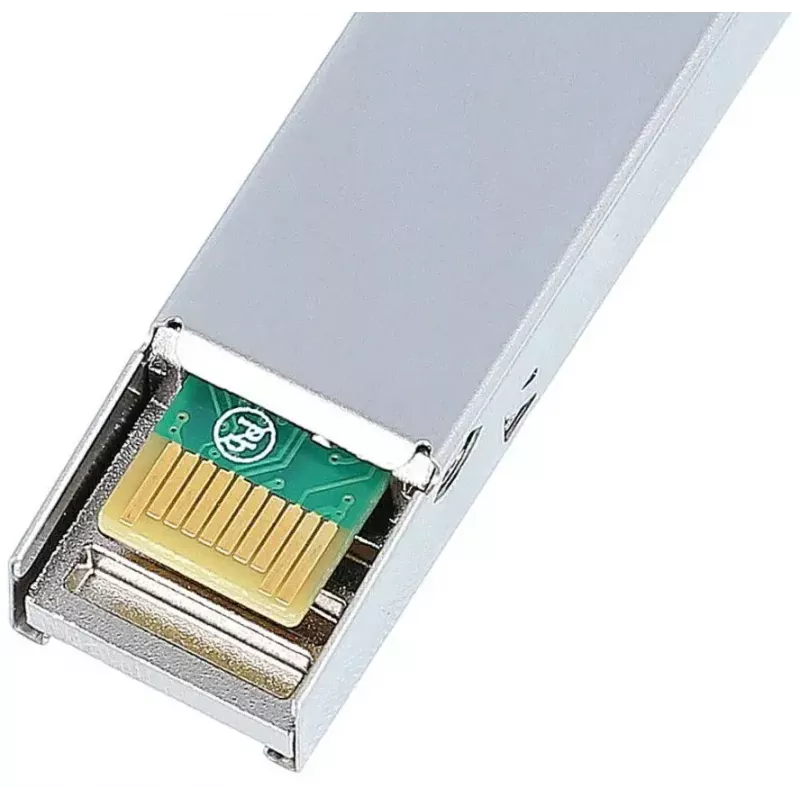

Glasvezel-SFP-transceiver BlueOptics E1MG-LX-OM-8-BO 10.000 m

The BlueOptics E1MG-LX-OM-8-BO 10000 m is a fiber optic SFP transceiver designed for single-mode optical links up to 10,000 meters. The module uses an SFP form factor with an LC duplex connection and an aluminum housing, offering a compact, lightweight solution (approx. 20 g) for high-speed network interfaces. It supports optical transmission with a 1310 nm wavelength for both transmitter and receiver and is built to comply with common MSA standards for seamless integration with networking equipment that accepts SFP transceivers.

Advantages

The transceiver provides stable optical data transfer over long distances and is compatible with a wide range of networking hardware. Its aluminum casing combines durability with a low weight that simplifies handling and installation. The module is engineered for standard optical protocols such as Ethernet and can support gigabit-class links while maintaining signal integrity over single-mode fiber. Designed and tested for interoperability, the module includes features that facilitate monitoring and diagnostics when the host device supports digital diagnostics (DDM/DOM).

Suitable for

Key specifications

How to use

Insert the SFP transceiver into a compatible SFP slot on your switch, router or other networking device following the equipment manufacturer’s installation procedure. Connect LC duplex single-mode fiber patch cords to the module’s connector, observing correct transmit-to-receive polarity. Ensure the host device is configured for the intended protocol and speed, and confirm link status through the device management interface. If available, enable and read digital diagnostic (DDM/DOM) parameters from the host system to monitor supply voltage, optical power and temperature.

Recommendations

Use single-mode LC duplex fiber and compatible patch cords for optimum range and signal quality. Verify that the target hardware supports third-party SFP modules and DDM/DOM if remote diagnostics are required. Avoid exposing the transceiver to mechanical stress, moisture or extreme temperatures during installation and operation to maintain reliability and service life.
