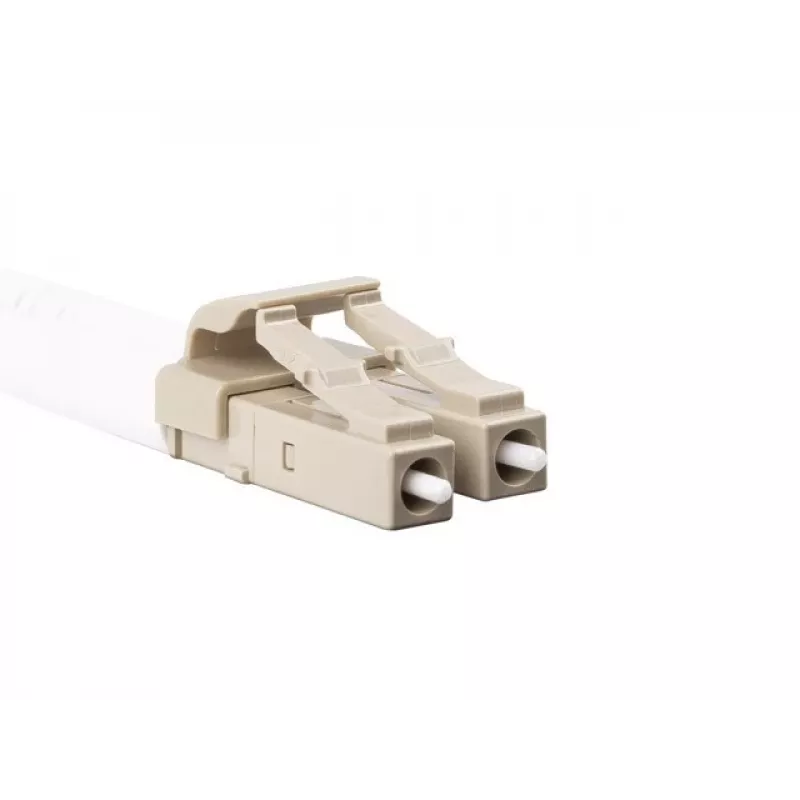

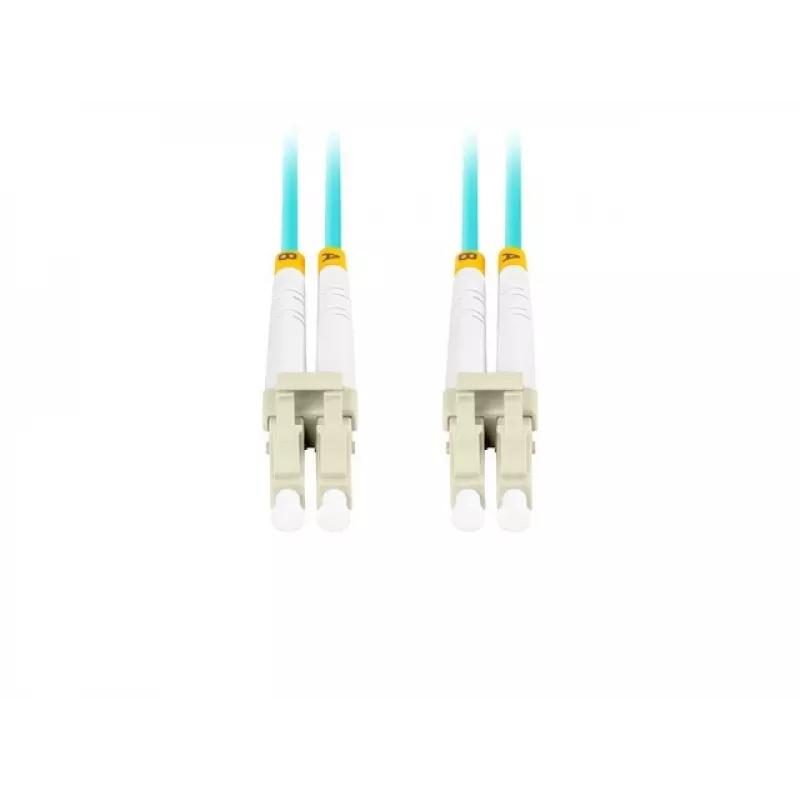

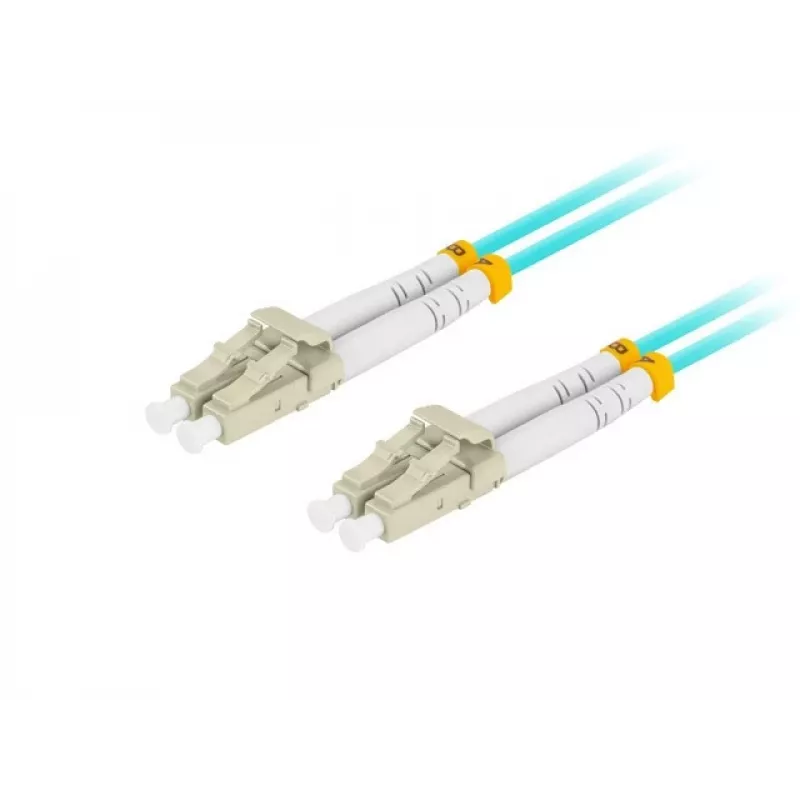

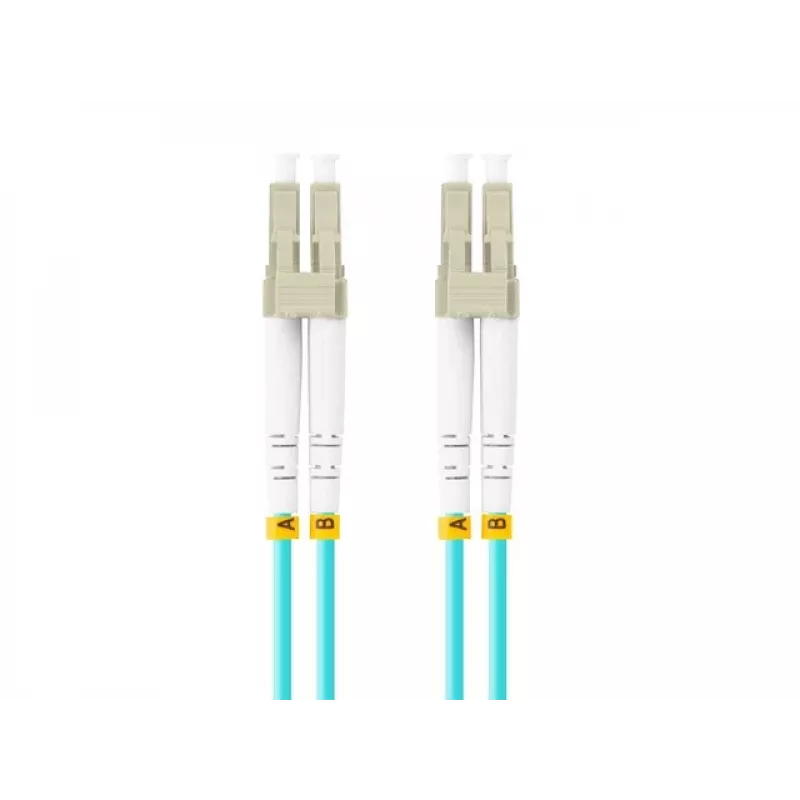

Glasvezelkabel LANBERG FO-LULU-MD31-0030-TQ, OM3, LC–LC, 3 m, aqua

LANBERG FO-LULU-MD31-0030-TQ is a 3 m fibre optic patch cable with OM3 multimode fibre and LC to LC connectors. The aqua LSZH jacket identifies the OM3 specification and the duplex 3.0 mm construction is suitable for data centre and telecom equipment links requiring stable, low-loss connections.

Advantages

The cable uses LC connectors with UPC polishing for low insertion loss (< 0.25 dB) and high return loss (> 50 dB). Multimode OM3 fibre (50/125 µm) supports high-speed InfiniBand and enterprise fibre-optic networks, while the LSZH coating reduces hazardous smoke and toxic gases in case of fire. A 3 m length and aqua color simplify installation and cable management in racks and patch panels.

Suitable for

• Data centre patching between switches, servers and panels
• High-speed InfiniBand and Fibre Channel connections
• Telecom and network equipment interlinks
• Structured cabling where OM3 multimode is specified

Key specifications

• Connector type: LC–LC (duplex)
• Polishing standard: UPC
• Fiber type: OM3 multimode (50/125 µm)
• Cable diameter: 3.0 mm
• Coating: LSZH (aqua)
• Insertion loss: < 0.25 dB
• Return loss: > 50 dB
• Operating temperature: -40 to 85 °C
• Minimum bend radius: 7.5 mm
• Cable length: 3 m

How to use

Handle the LC connectors by the boot and avoid touching the ferrule faces. Before insertion, inspect and, if necessary, clean connector endfaces with appropriate fibre cleaning tools. Insert each LC connector into the corresponding LC port until it clicks; follow equipment vendor instructions for port mapping. Avoid tight bends and maintain at least the specified minimum bend radius (7.5 mm) during routing. Secure the duplex cable in cable management trays or tie points to prevent strain on connectors.
