Keystone-module LANBERG KSU6-1090, Cat6 U/UTP plat, RJ-45 stekker naar LSA-bus, AWG 22/26, 14.5×16.1 mm, wit

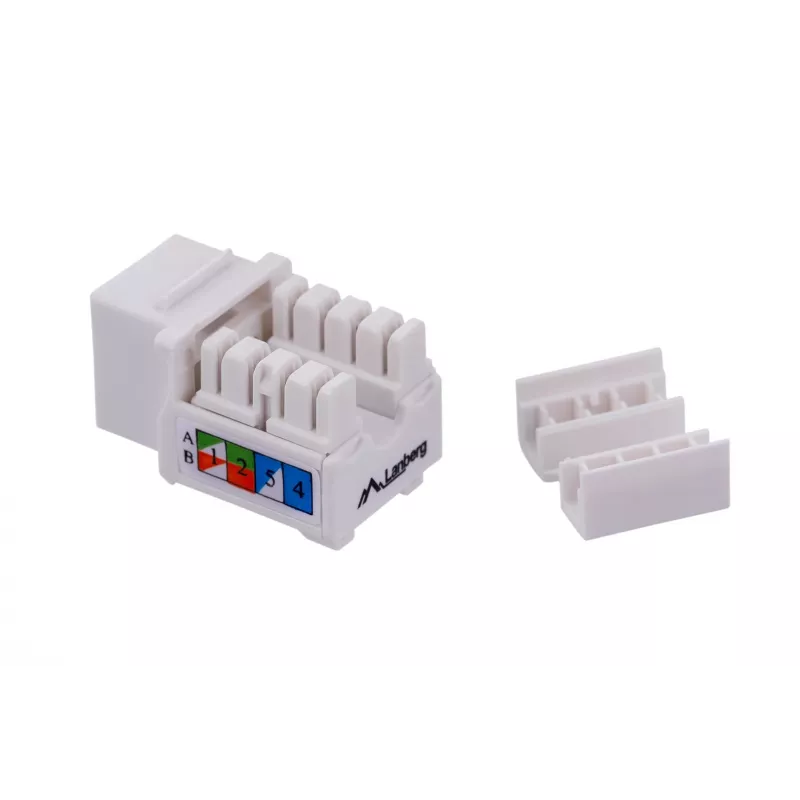

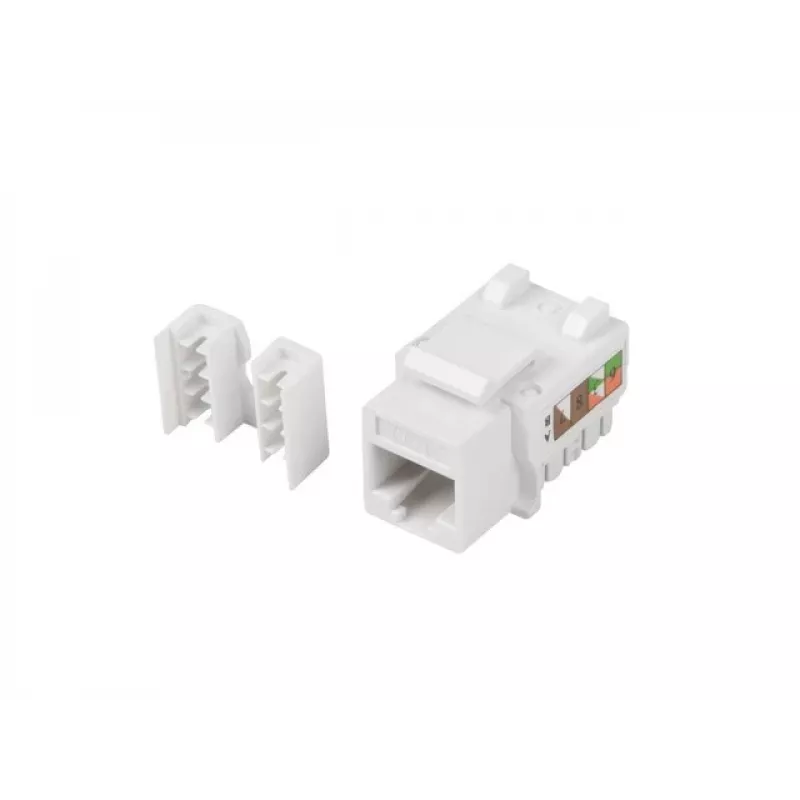

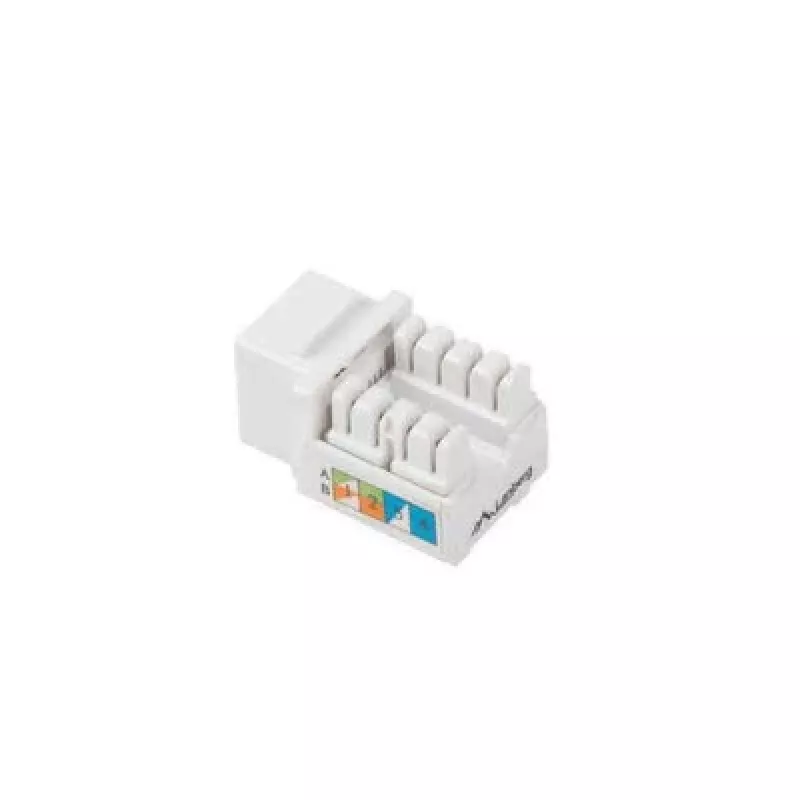

Lanberg Cat.6 UTP RJ45 keystone module is designed for installation in adapters and frames with connector openings sized 16.10 x 14.50 mm, such as 45x45 faceplates, electrical equipment frames or modular panels. The module provides an RJ45 socket with an IDC connector cover and supports both 568A and 568B wiring schemes. The printed circuit board (PCBA) construction ensures reliable electrical connections.

Advantages

The keystone module fits standard adapter cutouts and offers compatibility with common mounting systems, enabling versatile use in sockets, frames and panels. It supports both 568A and 568B wiring sequences for flexible cable termination. Universal slotted joints are compatible with LSA tools, allowing straightforward and tool-compatible installation. The IDC cover protects terminations and the PCBA-based design provides stable signal paths.

Key specifications

• Category: Cat.6 UTP

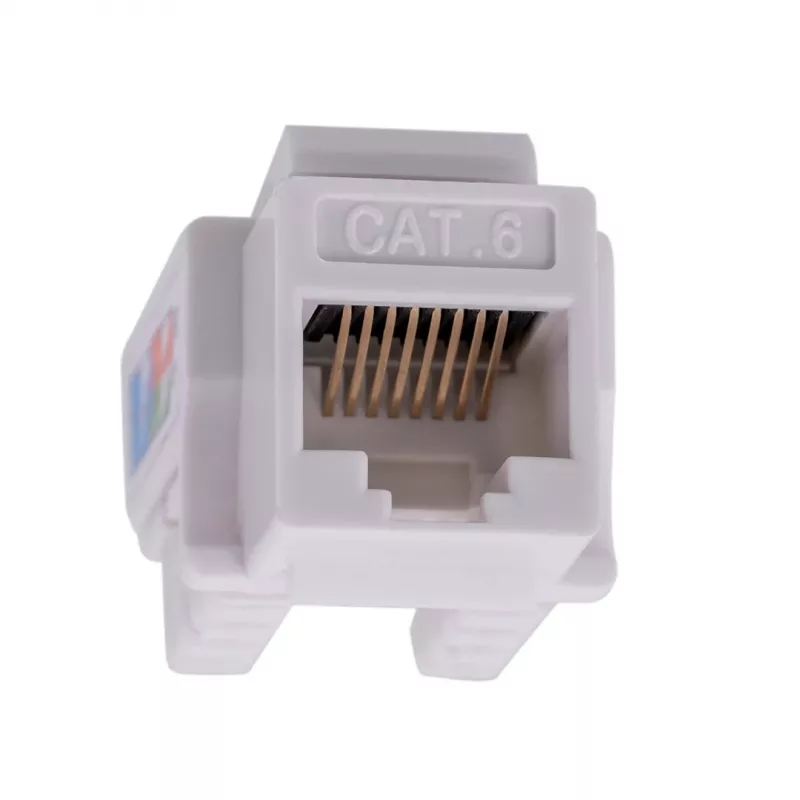

• Connector: RJ45 keystone
• Compatible cutout dimensions (HxW): 16.10 x 14.50 mm
• Wiring schemes: 568A / 568B

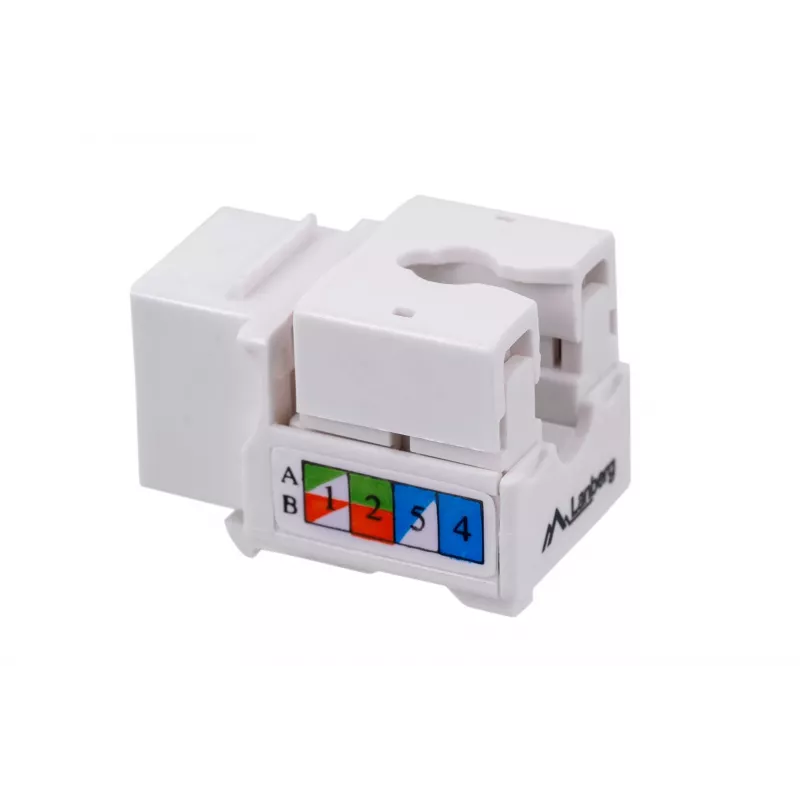

• Termination type: IDC with cover
• Contacts: universal slotted joints compatible with LSA tools
• Construction: PCBA printed circuit board

How to use

Insert the keystone module into any adapter or faceplate opening that matches the 16.10 x 14.50 mm dimensions. Terminate the UTP cable using the IDC connector following either the 568A or 568B color code. Use an LSA-compatible tool to press the conductors into the universal slotted joints if required. After termination, fit the IDC cover to protect the contacts and snap the module into the mounting frame or panel.

Recommendations

For reliable performance, use properly rated Cat.6 UTP cable and ensure terminations follow the selected 568A or 568B standard. Verify compatibility of the receiving adapter or faceplate with the 16.10 x 14.50 mm keystone dimensions before installation.
