Keystone-module Lanberg KSF6-1000

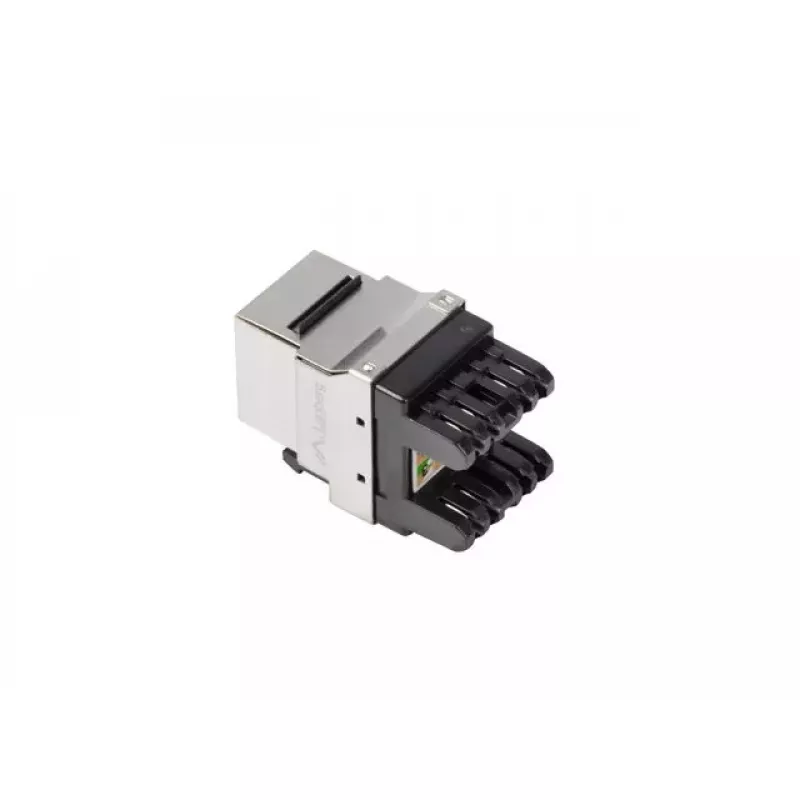

Lanberg KSF6-1000 is a flat Cat.6 FTP RJ45 keystone module with a black metallic finish and an RJ-45 socket. With dimensions 16.10 x 14.50 mm (height x width) it fits standard keystone adapters such as 45x45 wall plates, electrical frames or modular panels. The module is built on a PCBA printed circuit board and is sold individually.

Advantages

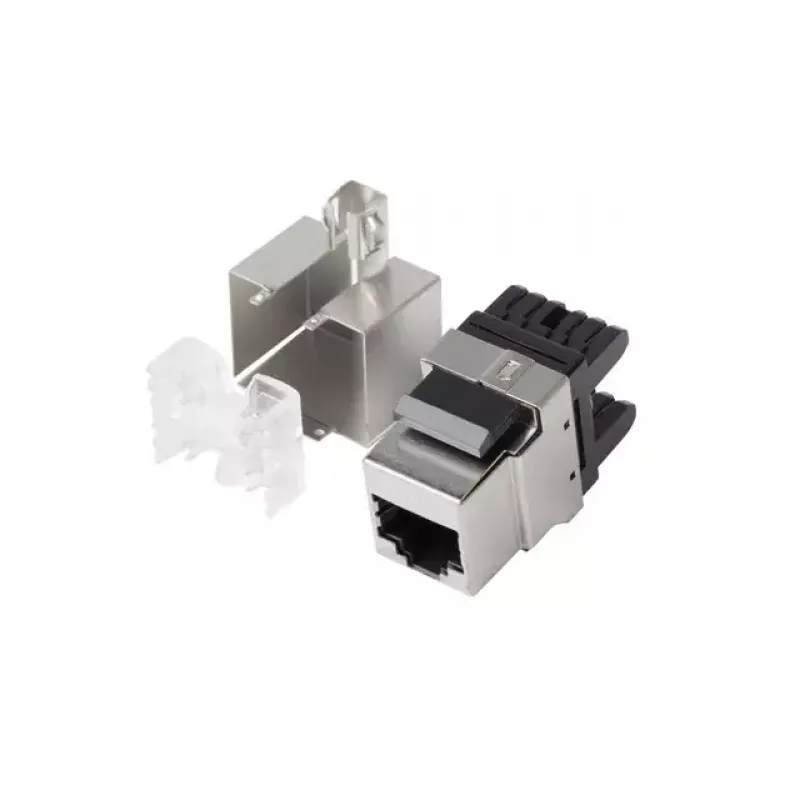

The keystone supports both 568A and 568B wiring sequences and includes a colored connection designation for accurate termination. It features an IDC connector cover and universal slotted connectors compatible with LSA tools, enabling reliable and fast cable termination. Its compact flat design and standard dimensions allow installation in a wide range of adapters and frames.

Suitable for

• Patch panels and 45x45 wall plates
• Modular network panels and electrical equipment frames
• Structured cabling installations using Cat.6 FTP cabling
• Field terminations requiring LSA-compatible connectors

Key specifications

• Model: Lanberg KSF6-1000
• Category: Cat.6 FTP keystone module
• Connector: RJ-45 socket with IDC cover
• Wiring: 568A / 568B compatible (color designation provided)
• Dimensions (H x W): 16.10 x 14.50 mm
• PCB: PCBA printed circuit board construction
• Colour: Black, metallic
• Sold: Single unit
• MPN: KSF6-1000
• EAN: 5901969415896

How to use

Insert the keystone module into a compatible adapter or wall plate opening sized 16.10 x 14.50 mm. Terminate the Cat.6 FTP cable onto the IDC contacts following the 568A or 568B colored sequence printed on the module. Use an LSA-compatible punch-down tool for the universal slotted connectors and close the IDC connector cover if present. After termination, snap the module into the plate or frame until it locks into place.

Recommendations

For best performance, use Cat.6 FTP cables and ensure correct grounding of the shield. Verify wiring sequence before punching down and avoid excessive cable twisting. Use a proper LSA punch-down tool to prevent damage to the IDC contacts.
