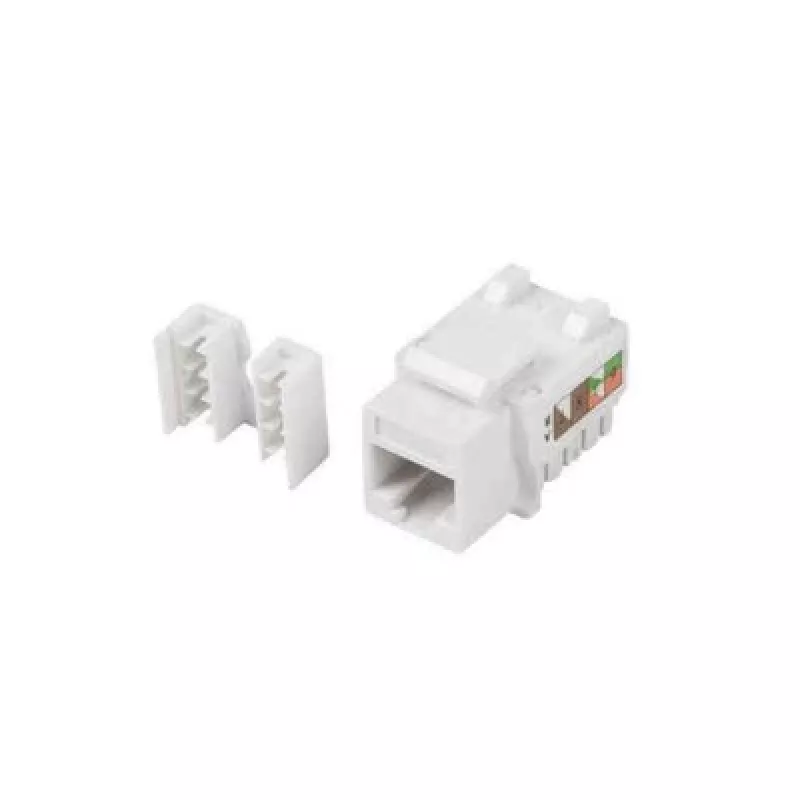

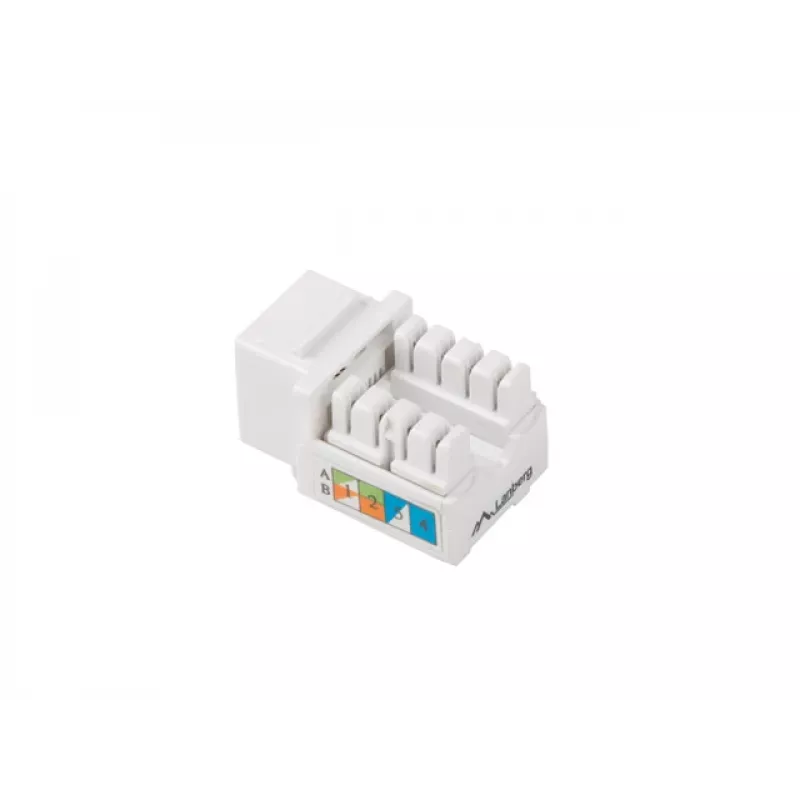

Keystone-module Lanberg KSU5-1090 haaks wit RJ-45

The Lanberg KSU5-1090 is an angled Cat.5e UTP keystone module with an RJ45 socket, designed for installation in adapters and panels that accept modules sized 16.10 x 14.50 mm. Supplied in white and sold individually, the module supports standard 568A/568B wiring and includes an IDC connector cover for reliable termination.

Advantages

Compact dimensions (14.5 mm x 16.1 mm) make the module suitable for space‑constrained installations. The angled RJ45 socket simplifies cable routing in tight enclosures. The IDC connector cover protects terminations and speeds up installation. Compatibility with standard keystone openings (for example 45x45 sockets, electrical frames and modular panels) provides flexible usage across different installations.

Suitable for

• Patch panels and modular wall plates with keystone openings
• 45x45 socket adapters and electrical equipment frames
• Tight or recessed installation locations where angled jacks improve access

Key specifications

• Standard: Cat.5e UTP
• Connector: RJ45 keystone socket
• Wiring: 568A / 568B
• Termination: IDC with cover
• Dimensions (H x W): 16.10 x 14.50 mm
• Color: White
• Brand / MPN: LANBERG / KSU5-1090
• Sold: single unit

How to use

Insert the keystone module into a compatible adapter or panel opening sized to accept 16.10 x 14.50 mm modules until it snaps into place. Prepare the cable according to the chosen 568A or 568B color code, terminate the wires into the IDC connector and close the IDC cover to secure the connection. After termination, plug the RJ45 plug into the angled socket and verify network continuity and signal integrity with appropriate testing tools.

Recommendations

Use the KSU5-1090 in enclosures and mounting frames that provide support for keystone modules of the specified dimensions; avoid forcing modules into non‑standard openings. For best results, follow Cat.5e installation practices and test each link after termination.
