Glasvezelkabel LANBERG FO-LULU-MD41-0100-VT 10 m OM4 LC–LC

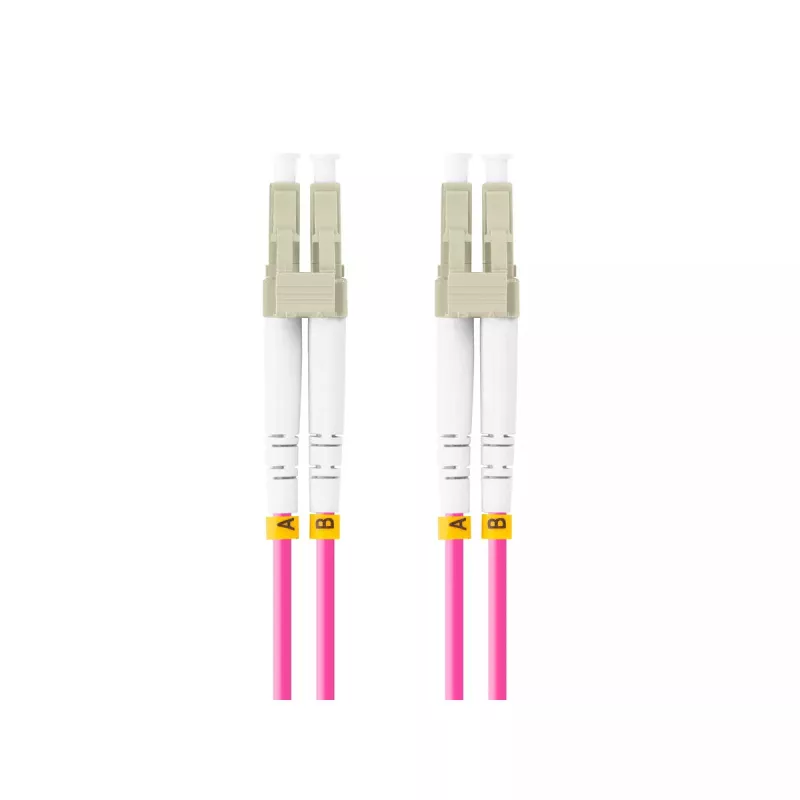

LANBERG FO-LULU-MD41-0100-VT is a 10 m multimode fibre optic patch cable with OM4 fibre and LC to LC connectors. It is intended for high-speed data transmission in fibre networks and InfiniBand environments, providing low attenuation and stable connections for server rooms, switches and storage systems.

Advantages

The cable uses OM4 multimode fibre with 50/125 µm core/cladding diameter and UPC-polished LC connectors, offering low insertion loss (less than 0.25 dB) and high return loss (greater than 50 dB). Duplex 3.0 mm construction with LSZH coating and a minimum bend radius of 7.5 mm ensures reliable performance in rack and patch-panel installations while operating across a wide temperature range (-40 to 85 °C).

Suitable for

• Short- to medium-range high-bandwidth links between switches and servers
• Fibre channels and InfiniBand connections in data centers
• Patching between storage systems, active equipment and distribution panels

Key specifications

• Connector type: LC–LC
• Polishing standard: UPC
• Fiber type: OM4 multimode
• Fiber core/cladding diameter: 50/125 µm
• Cable construction: Duplex
• Cable diameter: 3.0 mm
• Jacket material: LSZH
• Insertion loss: < 0.25 dB
• Return loss: > 50 dB
• Operating temperature: -40 to 85 °C
• Minimum bend radius: 7.5 mm
• Color: Violet
• Cable length: 10 m

How to use

Connect LC connectors to matching LC ports on network equipment, ensuring correct duplex orientation for transmit and receive pairs. Route the cable following rack and cable-management pathways, avoid tight bends below the minimum bend radius, and secure the cable to prevent strain on connectors. Verify link quality after installation using appropriate fibre testers to confirm insertion and return loss values.

Recommendations

For best performance, use the cable in short- to medium-range links within data centers and server rooms, maintain bend radius and avoid exposure to temperatures outside the specified range. Clean connectors before mating and test the link after installation.
