Glijrails Digitus DN-19 GS-NW

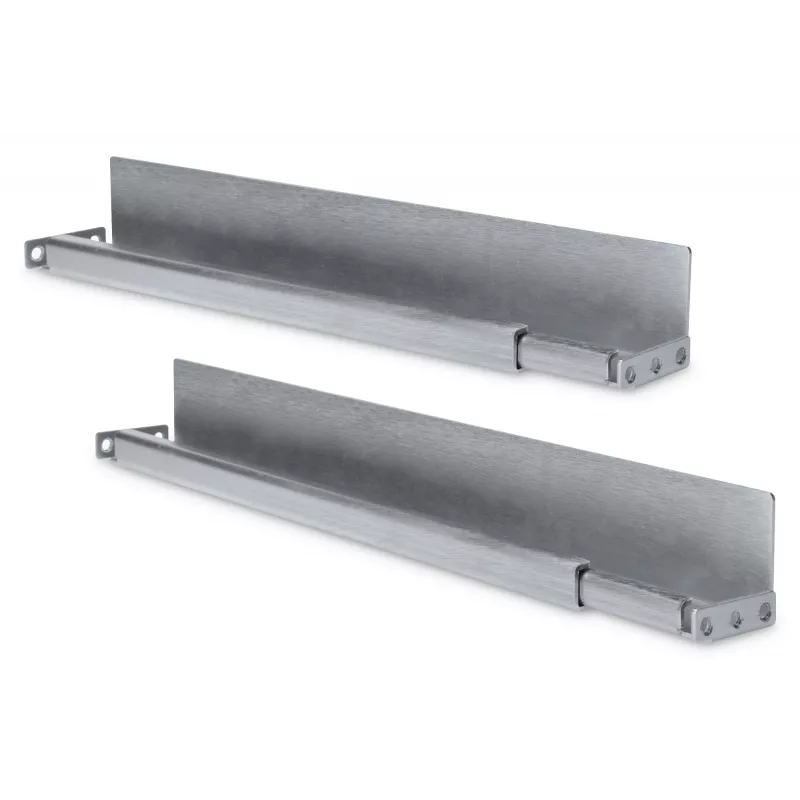

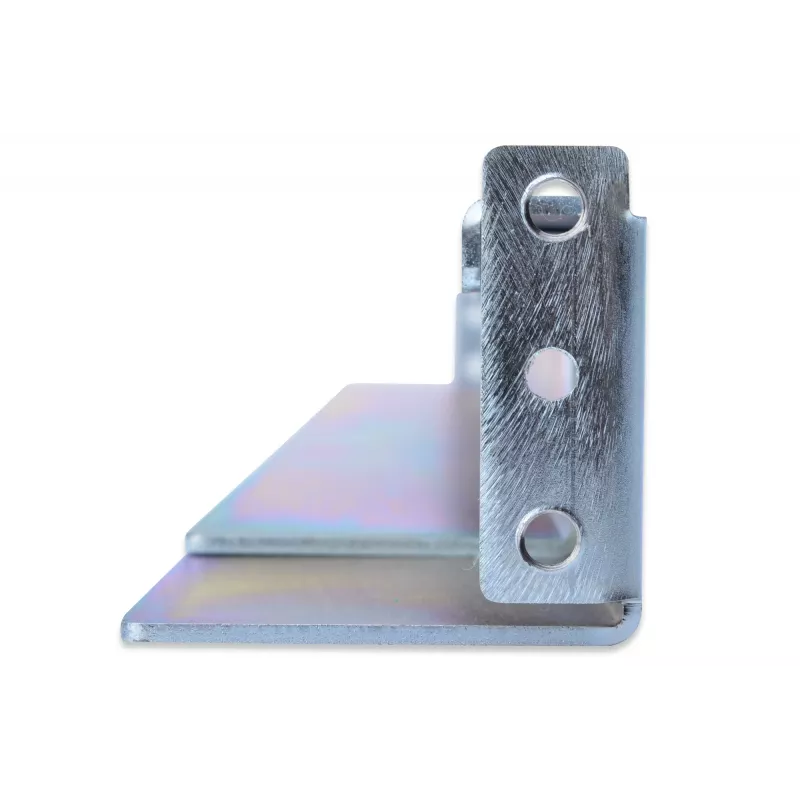

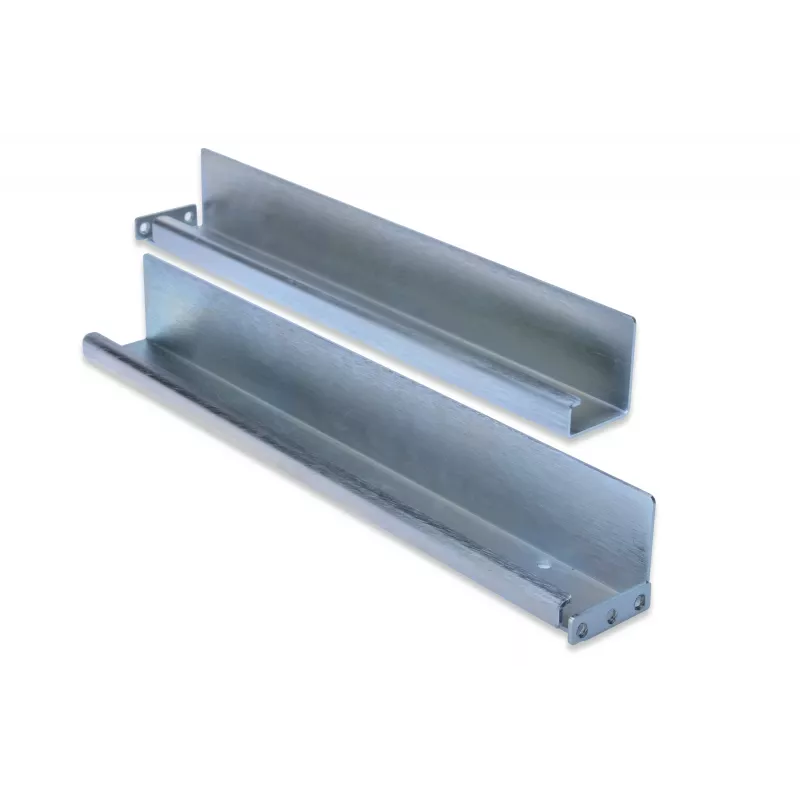

The DIGITUS Sliding Rails DN-19 GS-NW are L-support slide rails designed for 483 mm (19") network and server cabinets. Made from galvanized steel, they attach to the cabinet's four 483 mm profile rails and provide a stable rail system with a maximum load capacity of 100 kg and adjustable depth from 350 mm to 600 mm.

Advantages

Galvanized steel construction offers durability and resistance to corrosion while the adjustable depth (350–600 mm) enables flexible installation for different equipment sizes. The rails mount to the cabinet's 483 mm (19") profile rails and support heavy components up to 100 kg, simplifying equipment positioning and maintenance.

Suitable for

• Mounting servers and heavy networking equipment in 19" network or server cabinets
• Sliding or retractable installations that require access for maintenance
• Racks where adjustable depth between 350 mm and 600 mm is needed

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-19 GS-NW
• EAN: 4016032366454
• Compatibility: 483 mm (19") cabinets, mounts to four profile rails
• Material: Galvanized steel
• Adjustable depth: 350 mm – 600 mm
• Maximum load capacity: 100 kg

How to use

Position the L-support sliding rails on the cabinet's four 483 mm (19") profile rails and secure them according to the cabinet's mounting holes. Adjust the rail depth to the required range (350–600 mm) to fit the equipment depth, then mount the device on the rails. Ensure all fasteners are tightened and verify smooth sliding movement before placing equipment under full load.

Recommendations

Use appropriate fasteners compatible with your cabinet model and check the load rating of 100 kg; distribute heavy components evenly and verify rail alignment before regular operation.
