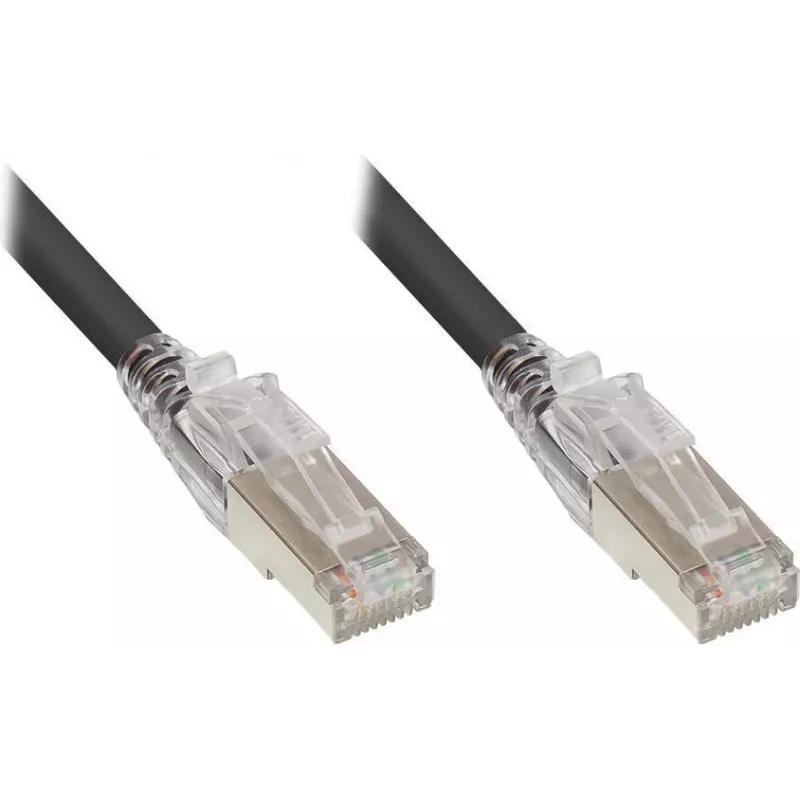

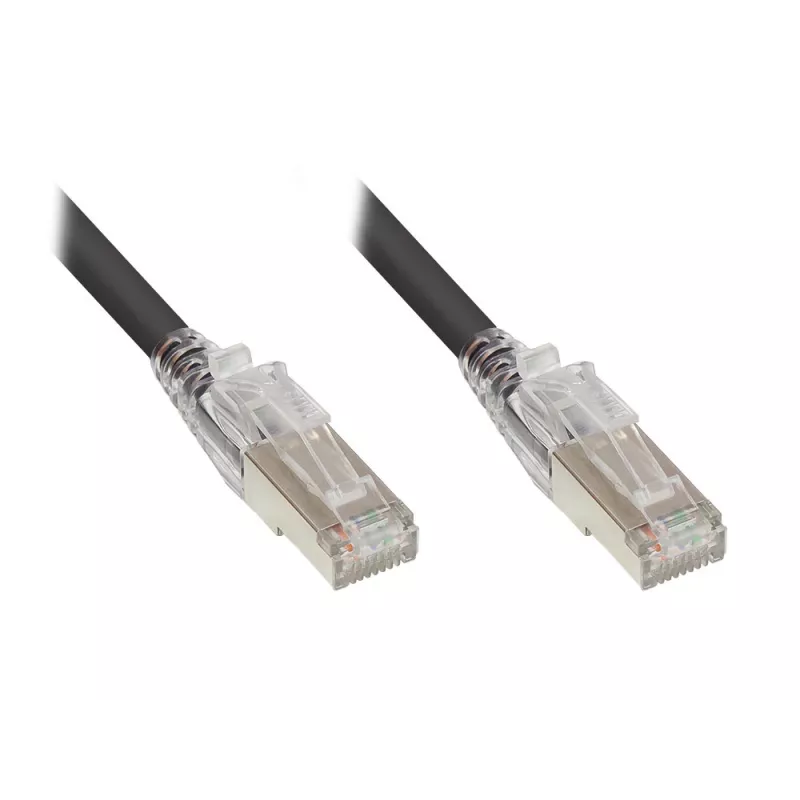

GoodConnections Cat.6A S/FTP patchkabel met RNS® Latch-beveiliging, LSZH, 5m, zwart 8060-HV050S

Network downtime from accidental disconnections or broken latch tabs can disrupt critical operations. The GoodConnections Cat.6A S/FTP patch cable with RNS® latch protection and locking mechanism eliminates these risks, ensuring a secure and stable 10 Gigabit Ethernet connection in demanding environments.

Who is it for

IT professionals, data center managers, and network installers who require reliable, high-performance cabling for 10GBASE-T applications. Ideal for structured cabling systems, server rooms, and industrial settings where cable security and fire safety are paramount.

Main features

• RNS® latch protection prevents accidental disconnection and protects the connector latch from damage.

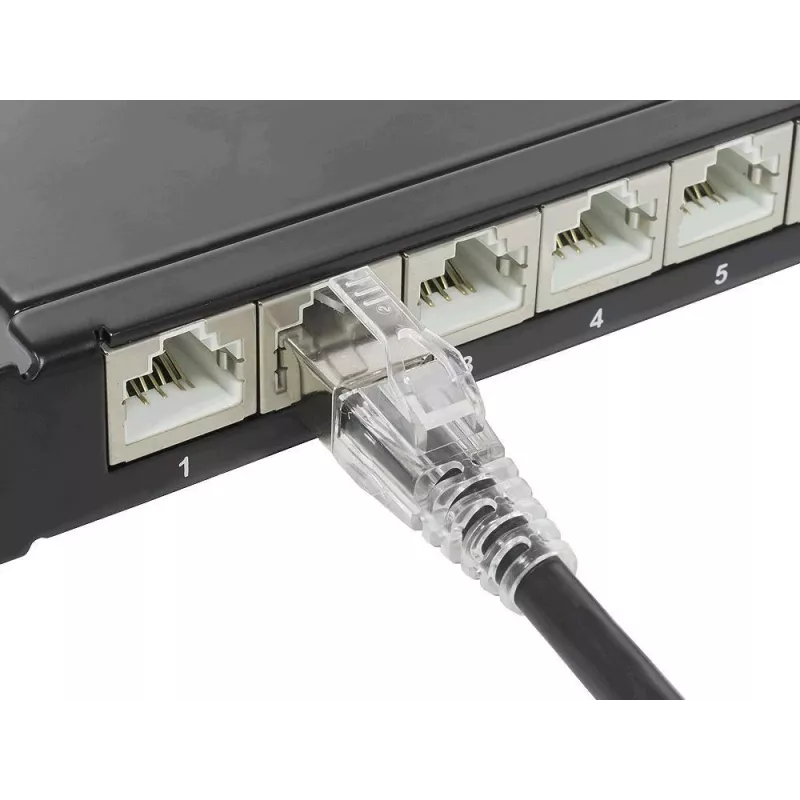

• Integrated locking mechanism secures the connection in high-vibration or frequently accessed areas.
• Cat.6A performance supports 10 Gigabit Ethernet up to 500 MHz bandwidth.
• S/FTP shielding with PiMF (pairs in metal foil) provides superior immunity to EMI and crosstalk.
• LSZH (low smoke zero halogen) jacket reduces toxic smoke and corrosive gases in case of fire.
• Gold-plated contacts ensure reliable, corrosion-resistant connections.
• Stranded 26 AWG copper conductors offer flexibility for easy routing in tight spaces.

Specifications

• Cable type: Cat.6A S/FTP patch cable
• Shielding: S/FTP (overall braid + foil per pair, PiMF)
• Frequency: 500 MHz
• Data rate: Up to 10 Gbps (10GBASE-T)
• Length: 5 m
• Colour: Black
• Jacket: LSZH (halogen-free)
• Connectors: RJ45 with RNS® latch protection and locking
• Conductor: 26 AWG stranded copper
• Standard: TIA/EIA-568-B.2-10

Tips

For optimal performance, pair with Cat.6A shielded patch panels and keystone jacks. Avoid sharp bends and maintain the minimum bend radius to preserve signal integrity. The LSZH jacket makes this cable suitable for use in plenum and riser spaces where fire safety regulations apply.
