GoodConnections DVI-I bus naar VGA stekker adapter, zwart

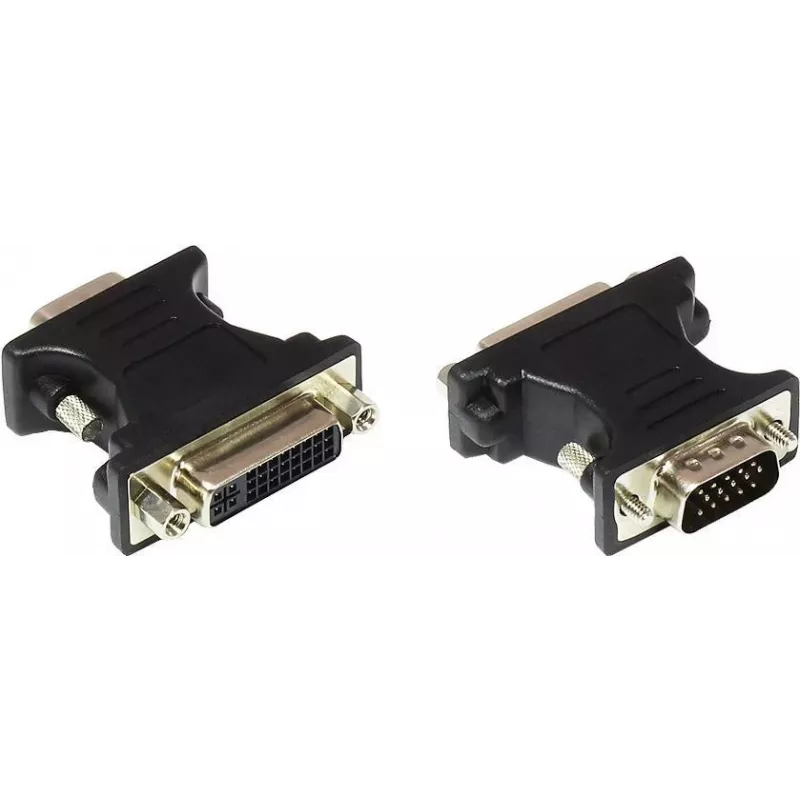

This video adapter converts a DVI-I female connection to a VGA male connection, enabling analog video signal transmission from a DVI-I source to a VGA display. Its passive design supports resolutions up to 1920 x 1200 (WUXGA) at 60 Hz, delivering clear and stable images without the need for external power or drivers.

Advantages

Gold-plated connectors resist corrosion and ensure reliable signal transfer, while the compact PVC housing provides durability and flexibility. The adapter is fully RoHS compliant, making it safe for both home and office environments.

Suitable for

• Connecting a DVI-I equipped computer or graphics card to a VGA monitor or projector.
• Extending the life of legacy VGA displays with modern DVI-I sources.
• Use in conference rooms, classrooms, and home offices where mixed video interfaces are common.

Key specifications

• Connector 1: DVI-I female (24+5 pin, dual link, analog capable)
• Connector 2: VGA male (15-pin HD-15)
• Signal type: Analog video
• Maximum resolution: 1920 x 1200 (WUXGA) at 60 Hz
• Connector plating: Gold
• Housing material: PVC
• Colour: Black
• Adapter type: Passive
• RoHS compliant

Recommendations

For best results, ensure the DVI-I source outputs analog signals. This adapter does not convert digital DVI-D signals to VGA; a powered converter is required for digital-only sources.
