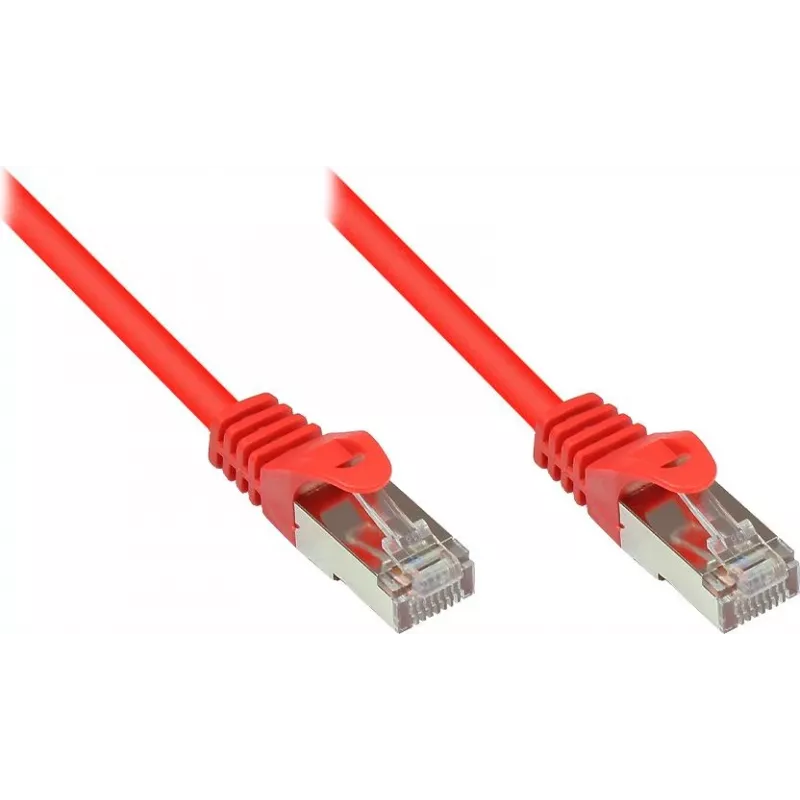

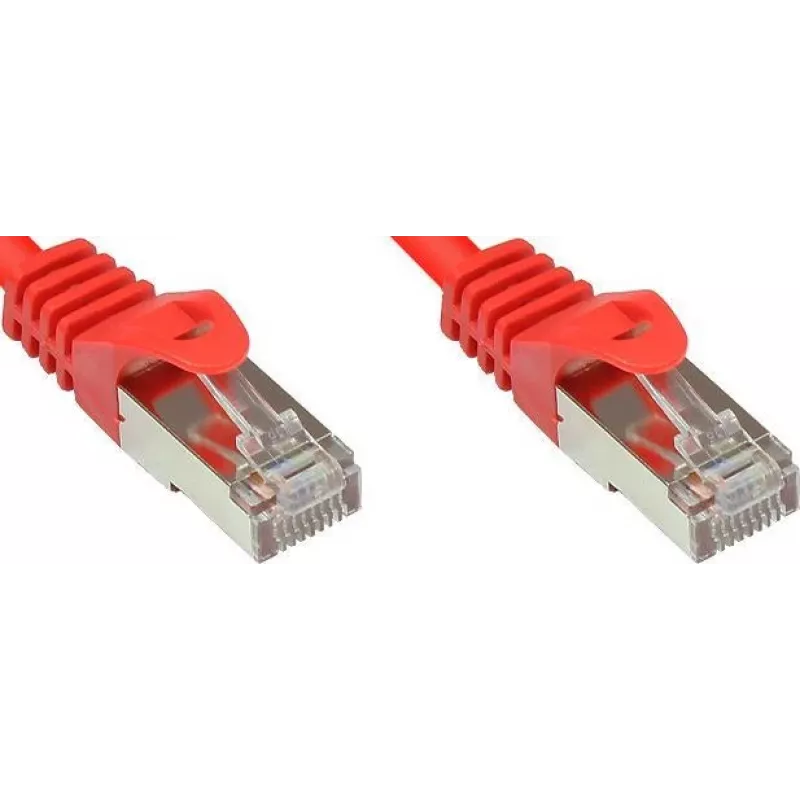

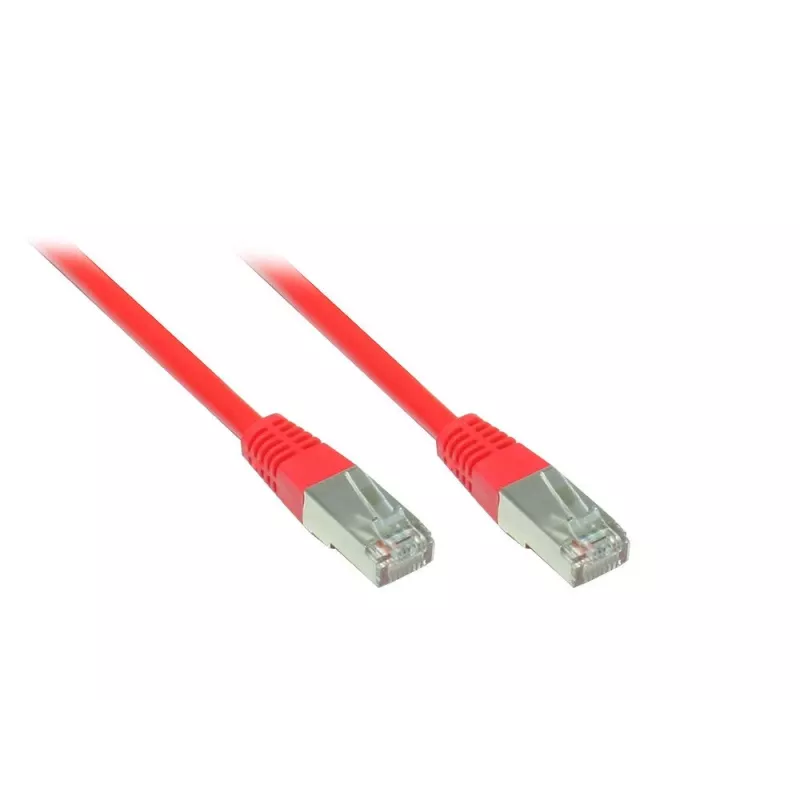

Good Connections Cat. 5e SF/UTP patchkabel, RJ45, rood, 5 m 855R-050

Cat. 5e patch cable with SF/UTP shielding delivers reliable Gigabit Ethernet connectivity up to 1000 Mbps. The red 5-metre cable features gold-plated RJ45 connectors and a snagless boot for secure, long-lasting connections in any network setup.

Advantages

Double shielding (SF/UTP) reduces electromagnetic interference and crosstalk, ensuring stable data transmission even in electrically noisy environments. The stranded copper conductors (AWG 26/7) provide flexibility for easy routing, while the gold-plated contacts resist corrosion and maintain signal integrity over time. The molded snagless boot protects the locking tab from accidental damage during installation and removal.

Suitable for

• Connecting computers, laptops, and network printers to routers, switches, or patch panels
• Gigabit Ethernet (1000BASE-T) and Fast Ethernet (100BASE-TX) networks
• Office, home, and server room applications where interference is a concern
• Use with PoE devices up to 30W (PoE+)

Key specifications

• Category: Cat. 5e
• Shielding: SF/UTP (Screened Foiled / Unshielded Twisted Pair)
• Length: 5 m
• Colour: Red
• Connectors: RJ45 male to RJ45 male, gold-plated (50µm)
• Conductor: Stranded copper, AWG 26/7
• Jacket: PVC, flame retardant (IEC 60332-1-2)
• Bandwidth: 100 MHz
• Wiring: TIA/EIA 568B
• Operating temperature: -20°C to 60°C

Recommendations

For optimal performance, avoid sharp bends and keep the cable away from power lines. This cable is ideal for structured cabling in offices and for connecting devices in high-density racks.
