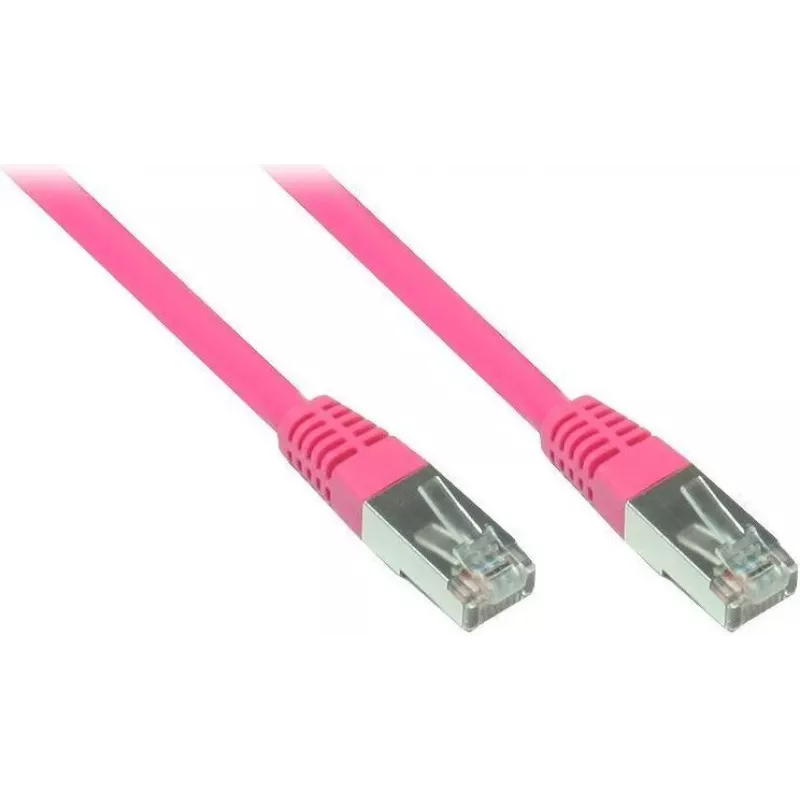

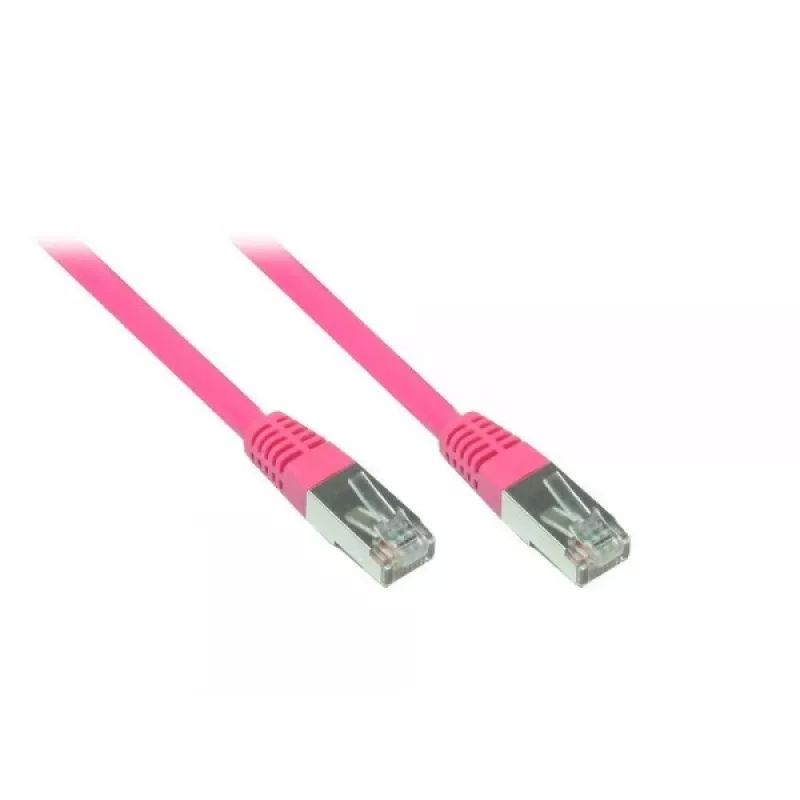

GoodConnections RNS patchkabel met trekontlasting, Cat. 5e, SF/UTP, PVC, 100 MHz, magenta, 7,5 m (855M-075)

The GoodConnections RNS Patch Cable stands out with its integrated latch protection, preventing the locking tab from snagging or breaking during frequent moves—a common failure point in standard patch cables. This 7.5-meter Cat. 5e cable delivers reliable Gigabit Ethernet connectivity with SF/UTP shielding to guard against electromagnetic interference, all wrapped in a durable PVC jacket in a distinctive magenta colour for easy identification.

Highlights

• RNS latch protection shields the RJ45 connector clip from accidental damage
• Cat. 5e performance supports up to 1 Gbps data transfer rates
• SF/UTP shielding (braided and foil) reduces crosstalk and external noise
• Flexible stranded copper conductors (26 AWG) for easy routing in tight spaces
• 100 MHz bandwidth meets TIA/EIA-568-B.2 standards for structured cabling
• Vivid magenta jacket simplifies port identification and cable management

In daily use

Whether connecting workstations, switches, or patch panels, this cable ensures stable, high-speed links. The latch protection is especially valuable in high-density environments where cables are frequently unplugged and re-routed. The 7.5 m length offers flexibility for runs between desks, racks, or wall outlets, while the stranded design resists kinking and maintains performance over repeated flexing.

Full specifications

• Brand: GoodConnections
• Model: 855M-075
• MPN: 855M-075
• EAN: 4014619718184
• Cable type: Ethernet Patch Cable
• Category: Cat. 5e
• Shielding: SF/UTP (Screened Foiled / Unshielded Twisted Pair)
• Jacket material: PVC
• Frequency rating: 100 MHz
• Length: 7.5 m
• Colour: Magenta
• Connector type: RJ45 male to RJ45 male
• Connector features: Latch protection (RNS)
• Data transfer rate: Up to 1 Gbps (Gigabit Ethernet)
• Conductor material: Copper
• Conductor construction: Stranded
• Wiring standard: T568B compatible
• Number of pairs: 4
• AWG: 26 AWG
• Impedance: 100 Ohm
• Standard compliance: TIA/EIA-568-B.2

Final note

Built to withstand the rigours of frequent handling, the GoodConnections RNS Patch Cable combines robust shielding, latch protection, and a bold colour—an ideal choice for professional network installations where reliability and easy identification matter.
