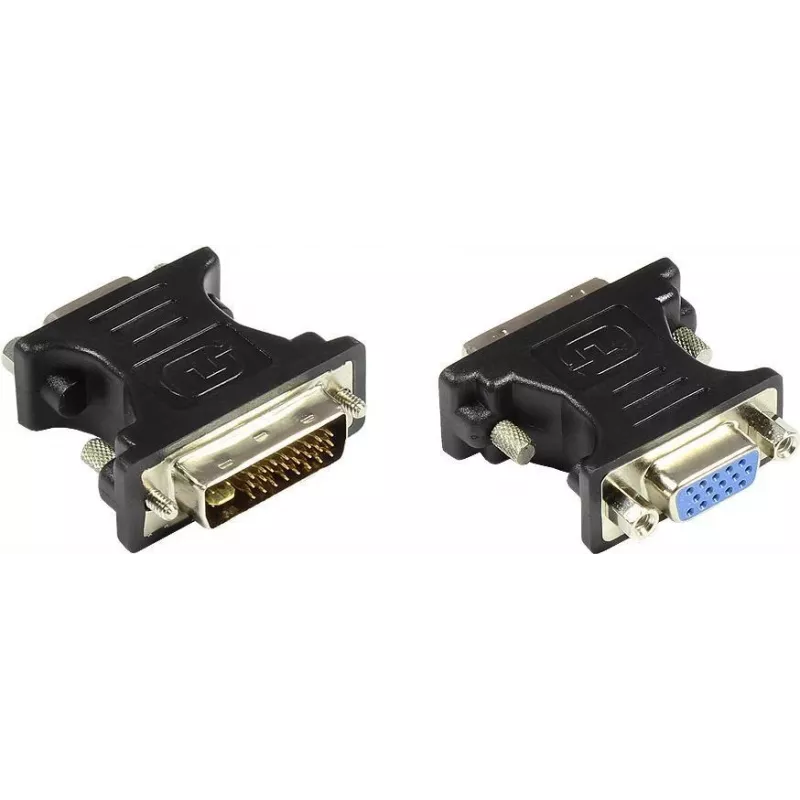

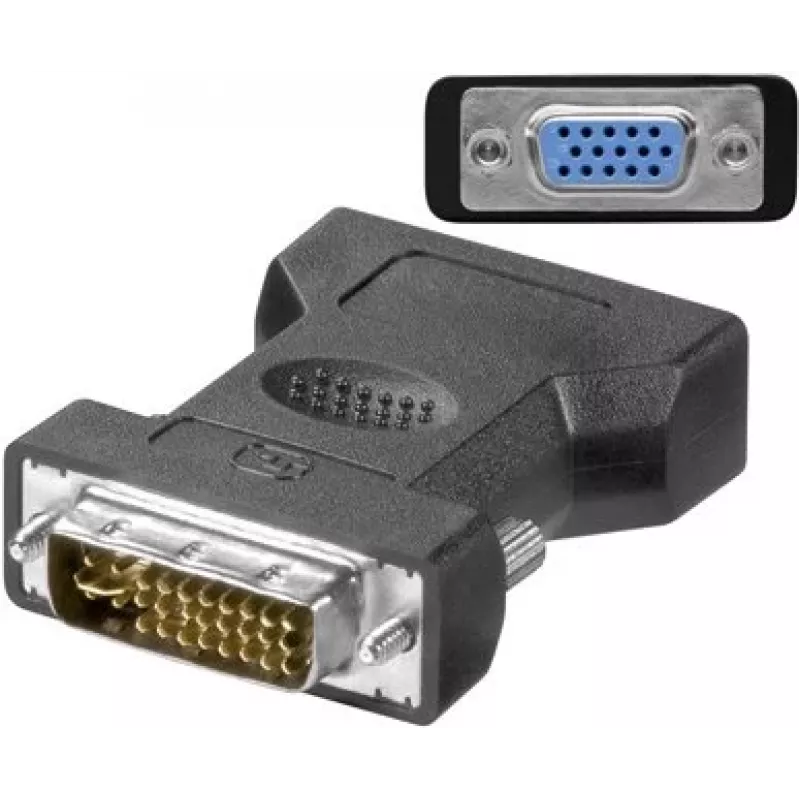

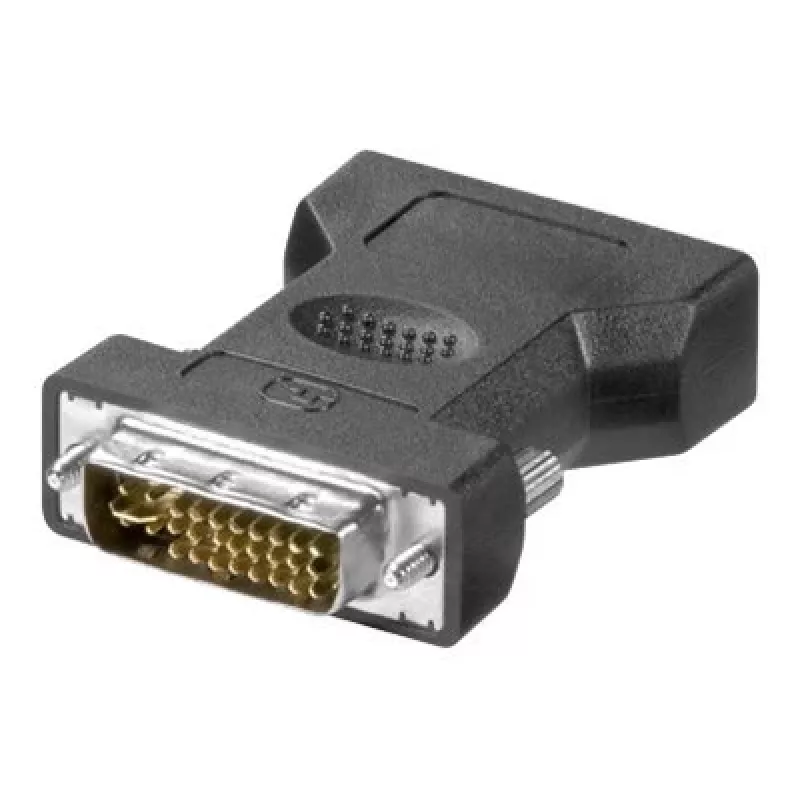

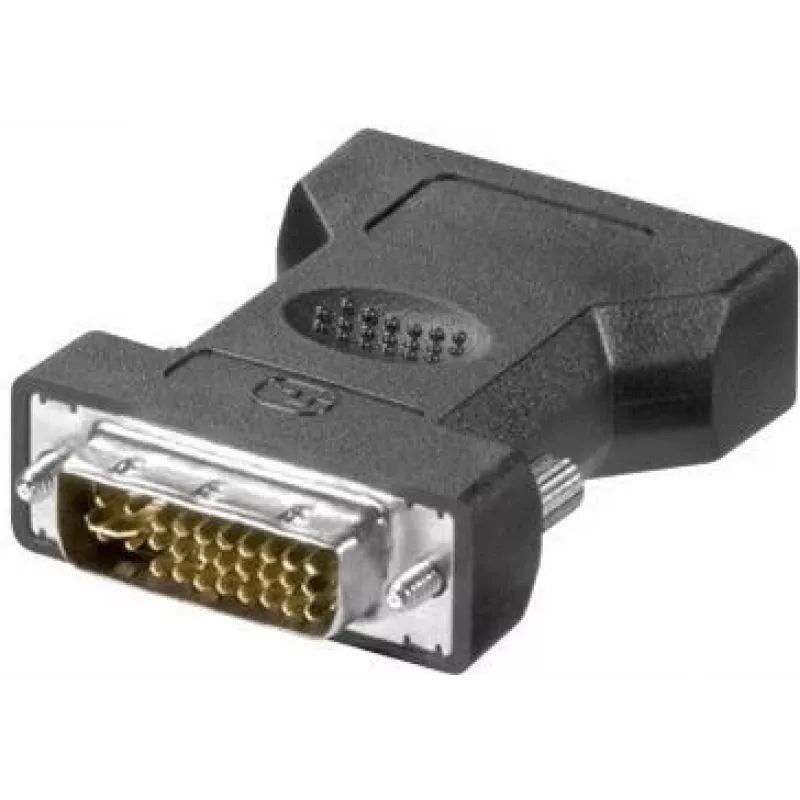

GoodConnections VGA-bus naar DVI 24+5 stekker adapter (VGA-DVI)

Connect a VGA monitor or projector to a DVI-A or DVI-I graphics card with the GoodConnections VGA-DVI adapter. This passive adapter converts the DVI analog signal to VGA, allowing you to use existing VGA displays with DVI-equipped computers. Ideal for office workstations, home setups, and legacy equipment integration.

Key specifications

• Connector 1: DVI-A (24+5 pin) male
• Connector 2: VGA (15-pin HD D-Sub) female
• Supports analog video resolutions up to 1920x1200 (WUXGA) / 1080p
• Passive adapter, no external power required
• Nickel-plated connectors for corrosion resistance
• Durable PVC housing with thumbscrews for secure connection
• Colour: Black
• RoHS compliant

Why choose it

This adapter provides a simple, cost-effective solution for connecting legacy VGA displays to modern DVI graphics cards that support analog output. The thumbscrews ensure a stable connection, preventing accidental disconnection. Its compact design makes it easy to carry for presentations or multi-monitor setups.

Ideal use cases

• Connecting an older VGA monitor to a computer with a DVI-A or DVI-I port
• Using a VGA projector with a DVI-equipped laptop or desktop
• Extending the life of existing VGA displays in office environments
• Setting up dual-monitor configurations where one display uses VGA

Good to know

This adapter is passive and only works with DVI ports that output analog signals (DVI-A or DVI-I). It does not convert digital DVI-D signals to VGA. No audio support is included. The adapter supports plug-and-play installation with no drivers required.
