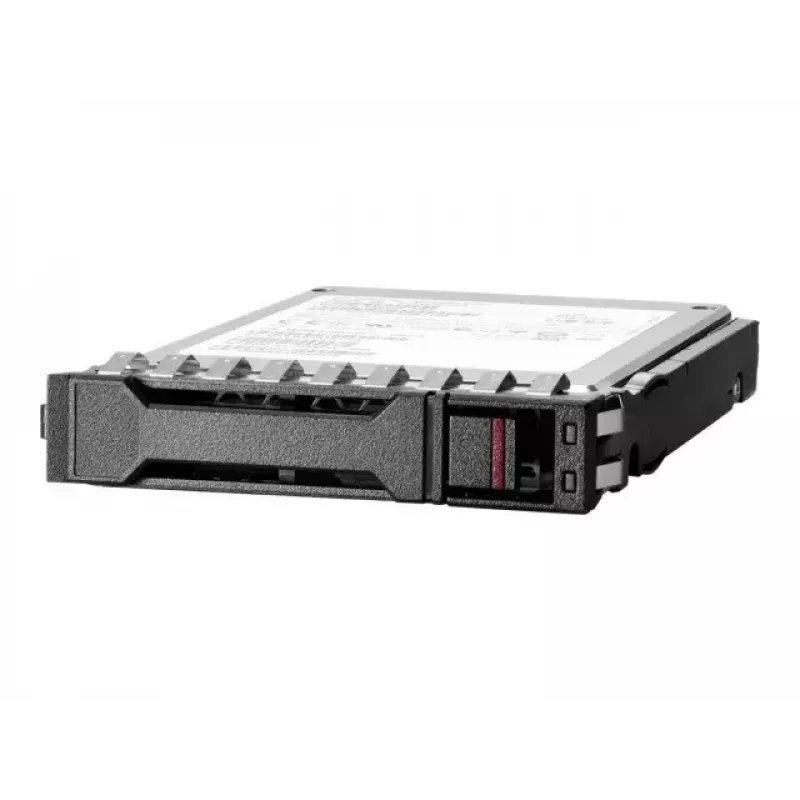

Goodram US10M 3,84 TB U.3 NVMe Gen4 single-port SSD met ISE

The Goodram US10M 3.84TB U.3 SSD stands out in the enterprise storage landscape with its single-port NVMe Gen4 architecture and Instant Secure Erase (ISE) capability, delivering a balance of high capacity, consistent performance, and robust data security for mixed-use data center workloads. Unlike consumer drives, this model is engineered for 24/7 operation with a 1 DWPD endurance rating, making it a reliable choice for virtualization, database acceleration, and high-availability server environments.

Highlights

• 3.84TB capacity in a 2.5-inch U.3 form factor (15mm height) for dense storage configurations
• PCIe Gen4 x4 NVMe interface with sequential read up to 7000 MB/s and write up to 4000 MB/s
• 1 DWPD endurance and 7008 TBW for sustained mixed-use workloads
• Instant Secure Erase (ISE) for fast, cryptographic data sanitization
• Enterprise-grade reliability: 2 million hours MTBF, end-to-end data protection, and power loss protection

In daily use

Deploying the US10M in a server or storage array is straightforward thanks to its standard U.3 connector, which supports both NVMe and SAS/SATA backplanes with appropriate adapters. The drive's 3D TLC NAND is tuned for mixed read/write patterns, delivering up to 1,000,000 random read IOPS and 200,000 random write IOPS, ensuring responsive applications even under heavy load. The single-port design simplifies cabling and reduces cost in scale-out architectures, while the 15mm z-height fits most 2.5-inch drive bays. Thermal throttling is managed through the drive's firmware, keeping temperatures within the 0°C to 70°C operating range.

Full specifications

• Capacity: 3.84 TB (3840 GB)
• Form factor: 2.5-inch U.3 (SFF-TA-1001), 15mm height
• Interface: PCIe Gen4 x4 NVMe 1.4, single port
• NAND: 3D TLC
• Sequential read: up to 7000 MB/s
• Sequential write: up to 4000 MB/s
• Random read (4KB): up to 1,000,000 IOPS
• Random write (4KB): up to 200,000 IOPS
• Endurance: 1 DWPD, 7008 TBW
• MTBF: 2,000,000 hours
• Data security: Instant Secure Erase (ISE), End-to-End Data Protection, Enhanced Power Loss Data Protection
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Shock resistance: 1500G (0.5ms half-sine)
• Market segment: Enterprise, Data Center

Final note

The Goodram US10M 3.84TB U.3 NVMe SSD is a compelling option for IT managers seeking high-capacity, high-performance storage with enterprise security features, all in a standard form factor that integrates seamlessly into modern data center infrastructure.
