Graco RAC 5 SwitchTip 517 blauwe airless spuitmond 0.017 inch 10 inch waaier

The Graco RAC 5 SwitchTip 517 is a high-performance airless spray tip designed for professional painters and contractors. Featuring a 0.017-inch orifice and a 10-inch fan width, this blue-coded tip delivers a standard spray pattern ideal for medium to heavy coatings such as latex paints, primers, enamels, and acrylics. The patented Reverse-A-Clean (RAC 5) design allows you to clear clogs instantly by rotating the tip 180 degrees, minimizing downtime and maximizing productivity.

Advantages

Built with a tungsten carbide orifice and stainless steel/polymer body, the RAC 5 517 tip offers exceptional durability and extended tip life. The reversible feature eliminates the need to remove the tip for cleaning, saving time on the job. Its precision-machined orifice ensures consistent spray performance and a smooth finish.

Suitable for

• Latex paints, primers, enamels, and stains
• Acrylics and medium to heavy coatings
• Airless spray applications in residential and commercial painting
• Use with Graco RAC 5 tip guards and compatible spray guns

Key specifications

• Tip Series: Graco RAC 5 (Reverse-A-Clean V)

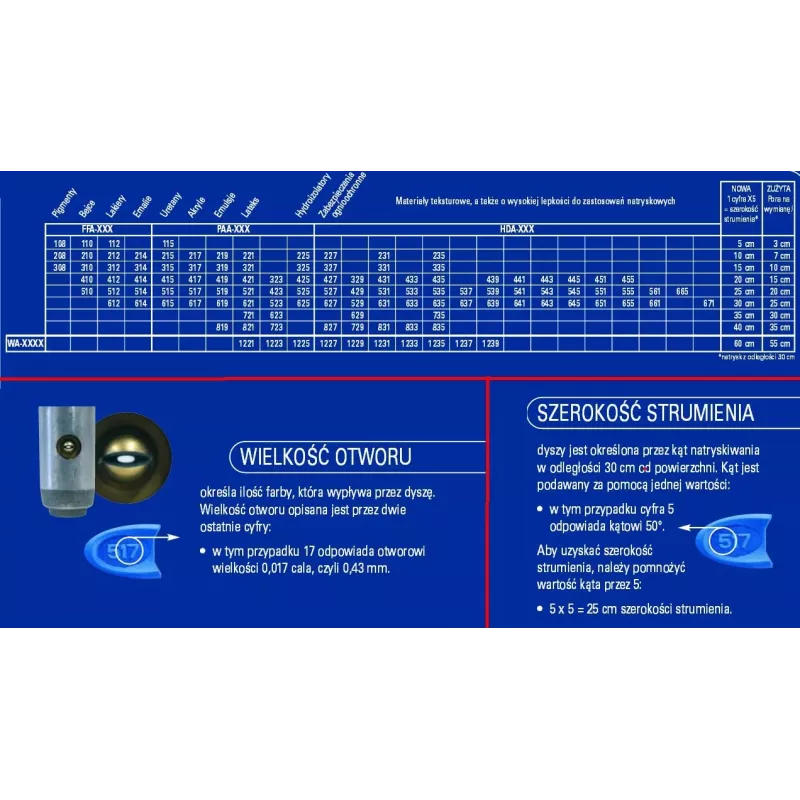

• Tip Size Code: 517
• Orifice Size: 0.017 inches (0.43 mm)
• Fan Width: 10 inches (25 cm)
• Spray Pattern: Standard / General Purpose
• Colour: Blue
• Orifice Material: Tungsten Carbide
• Body Material: Stainless Steel / Polymer
• Maximum Operating Pressure: 4000 PSI (27.6 MPa)
• Compatibility: Graco RAC 5 Tip Guards
• Cleaning Feature: Reversible (SwitchTip design)
• Application Type: Airless Spraying
• Integrated Seal: Yes

Recommendations

For optimal performance, always use genuine Graco RAC 5 tip guards and ensure the tip is properly seated before operation. Regularly inspect the orifice for wear and replace as needed to maintain spray quality.
